Detailed information

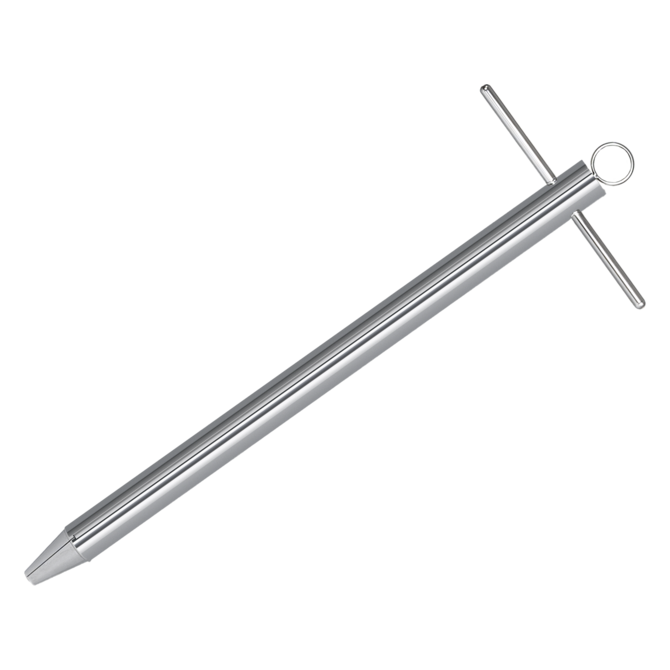

Sampler for all-layer samples of viscous, paste-like, semi-liquid substances, according to DIN 51750 pt. 3 and DIN EN ISO 15528. Different layers remain intact particularly with paste-like substances.

Typical application area of the product

Sampler for all-layer samples of viscous, paste-like, semi-liquid substances.
How to use the product

For viscous substances:

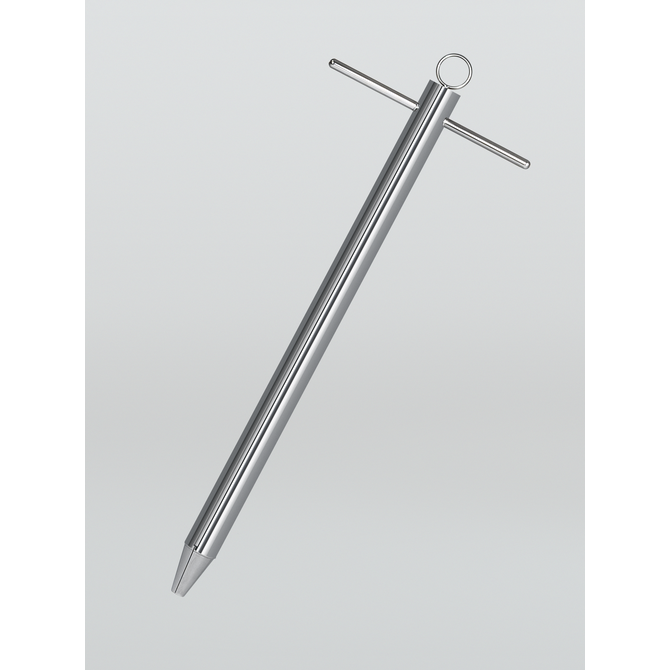

1. The valve lance is inserted all the way to the bottom, whilst being closed.
2. It is opened, closed and pulled out again.


For paste-like substances:

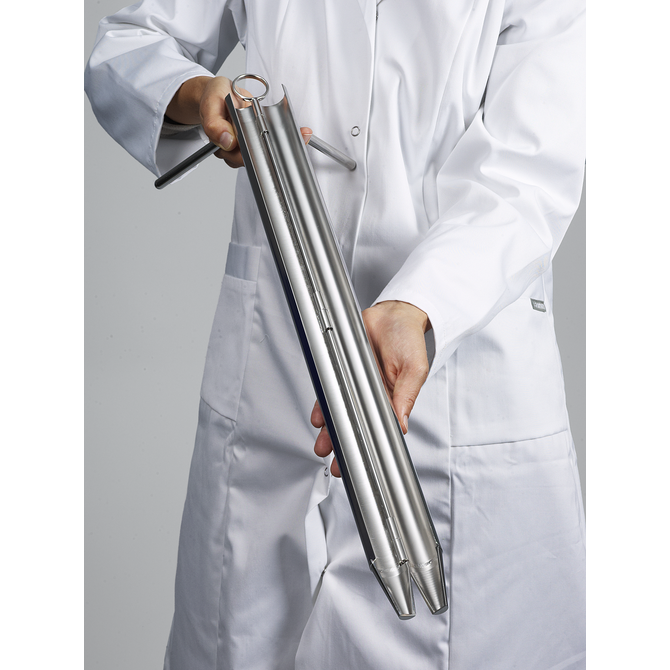

1. The valve lance is inserted all the way to the bottom, whilst being open.
2. It is closed and pulled out again.
5359-1x00_klappstecher_gebrauchsanleitung.pdf 5359-1x00_klappstecher_gebrauchsanleitung.pdf
  • Valve lance

Specifications

General material

1.4404 (316L)
Stainless steel 1.4404, AISI 316L

Sample chamber details

Number of collection openings:
1
Sample quantity:
300 ml (10.1442 fl oz)

Lance dimensions

Pipe Ø:
34 mm (1.3386 in)
Outer Ø:
34 mm (1.3386 in)
Plunge depth:
500 mm (19.685 in)
Total length:
583.5 mm (22.9724 in)

Sampling lances

Sampling type:
All-layer sample
Sample material:
pasty/high viscosity
Special properties Sample lances:
Variable sample volume
Top:
rounded
To the list of chemical resistance
