UniSampler with suction lance

In our catalog you will find this product on page 81

Look up in our flip catalog

Enter item number: {config.singleVariant.number}

At a glance

  • Suction tube PP, suction hose PVC

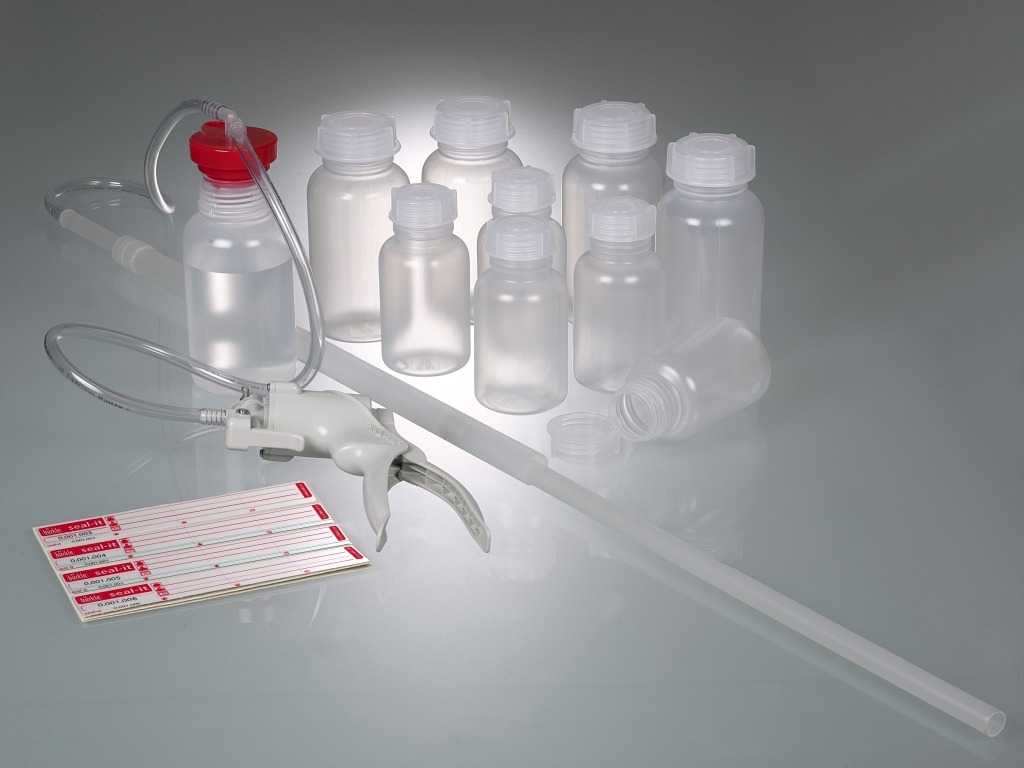

  • Incl. 5 sample bottles each PP 250 ml (8.45 oz.) and 500 ml (16.91 oz.), vacuum pump, universal adapter for sample bottles, 20 seal-it bottle seals
  • Universal bottle adapter made of PVC, for bottle necks Ø 24 mm (0.94 in.), 31 mm (1.22 in.), 39 mm (1.54 in.) and 50 mm (1.97 in.) nominal dimension, for sample bottles 100–1000 ml (3.38–33.81 oz.)

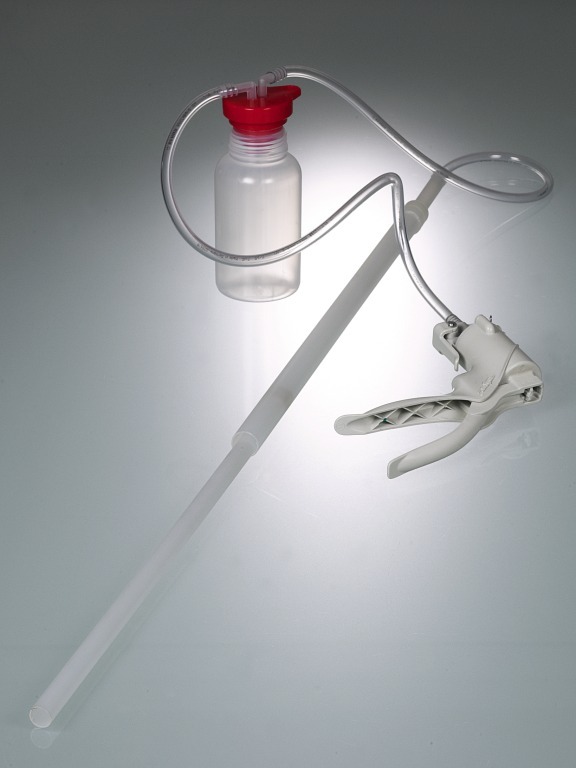

The collection lance consists of an inner tube and an outer tube. The suction position can be varied steplessly with the outer tube within a height of 0 to 48 cm (0 to 18.90 in.). The total length of the telescopic suction tube is 100 cm (39.37 in.).

Sampler for liquid samples from precisely pre-determined depth, with hand-operated vacuum pump. Sampling using vacuum pumps has the advantage that the liquid only comes into contact with the suction hose and the original sample bottle.

Use

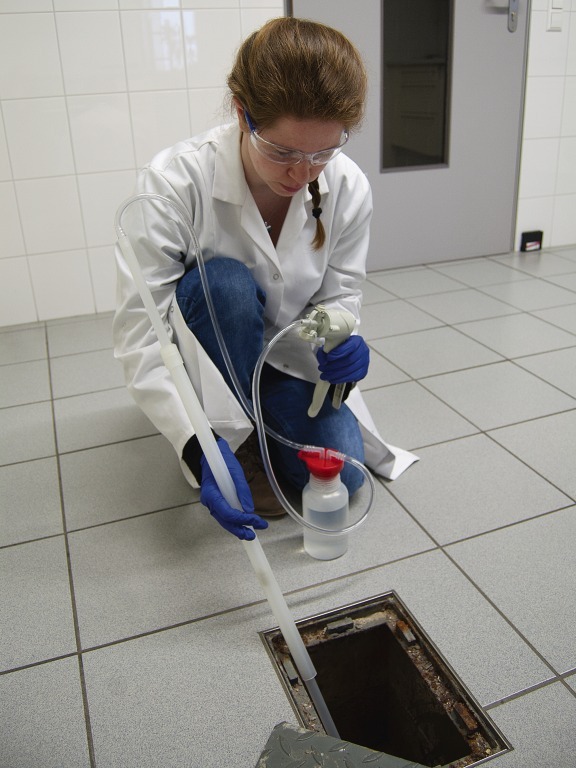

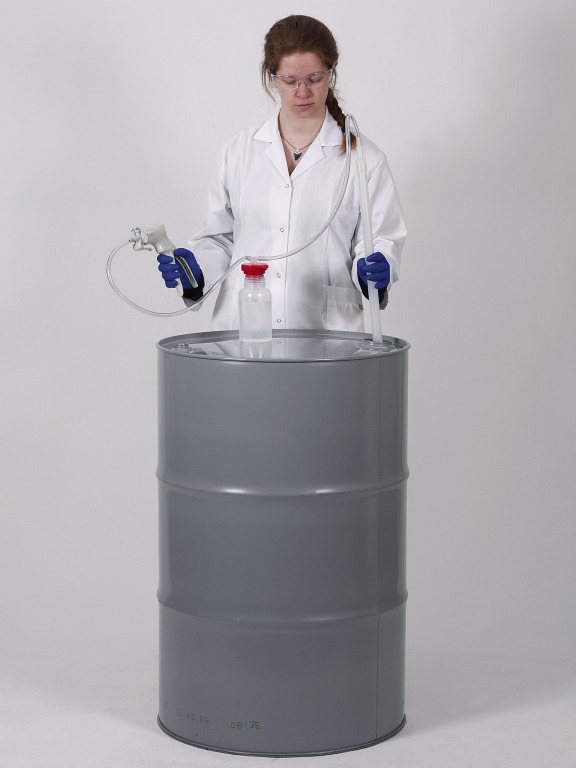

  1. Set the desired sampling depth by moving the suction lance.
  2. Attach the adapter to the sampling bottle.
  3. Lower the suction lance into the medium.

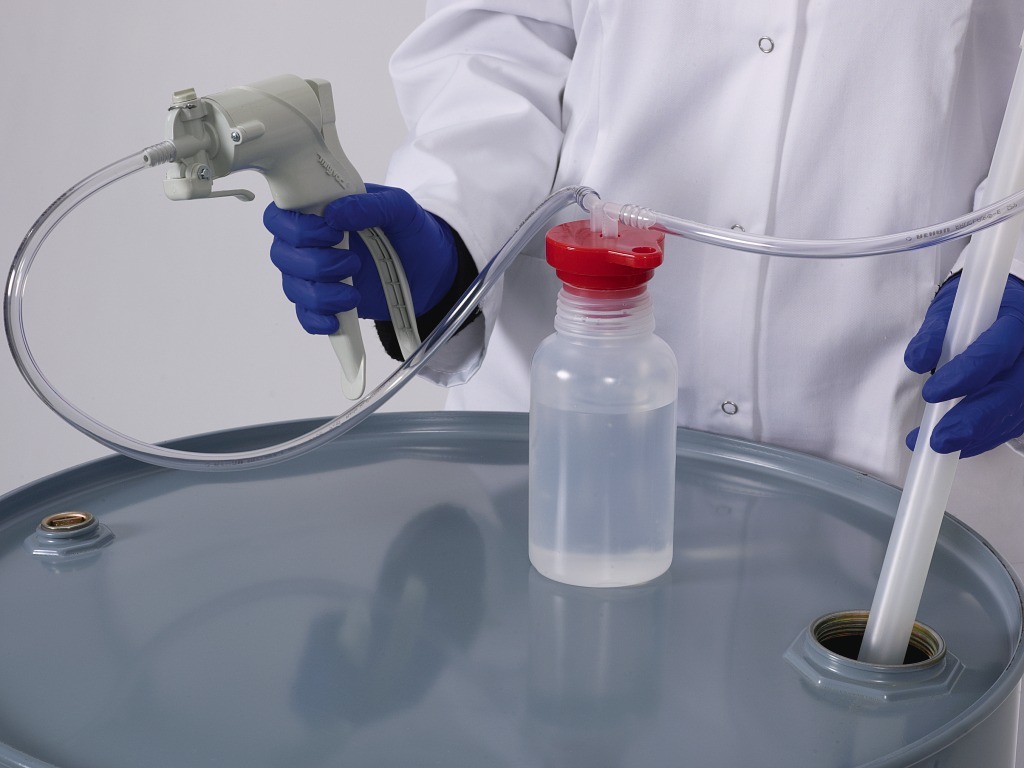

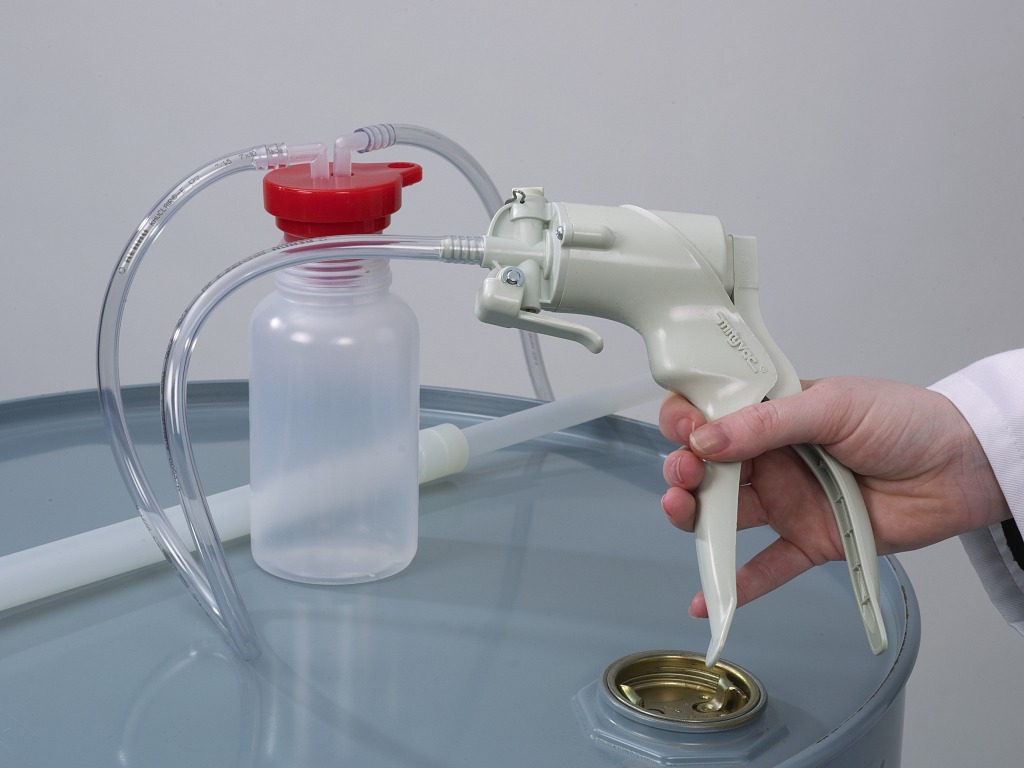

  4. Create a vacuum using the handpump and collect the sample.
  5. Remove the filled sample bottle, close and label it.
