UniSampler with hose

UniSampler with hose
UniSampler with hose UniSampler with hose, sampling from barrel UniSampler with hose, sampling from barrel UniSampler with hose, sampling
1/5

In our catalog you will find this product on page 80

Look up in our flip catalog

Enter item number: {config.singleVariant.number}

Where to buy

At a glance

  • Suction hose PVC, 2.50 m (8.20 ft.) long

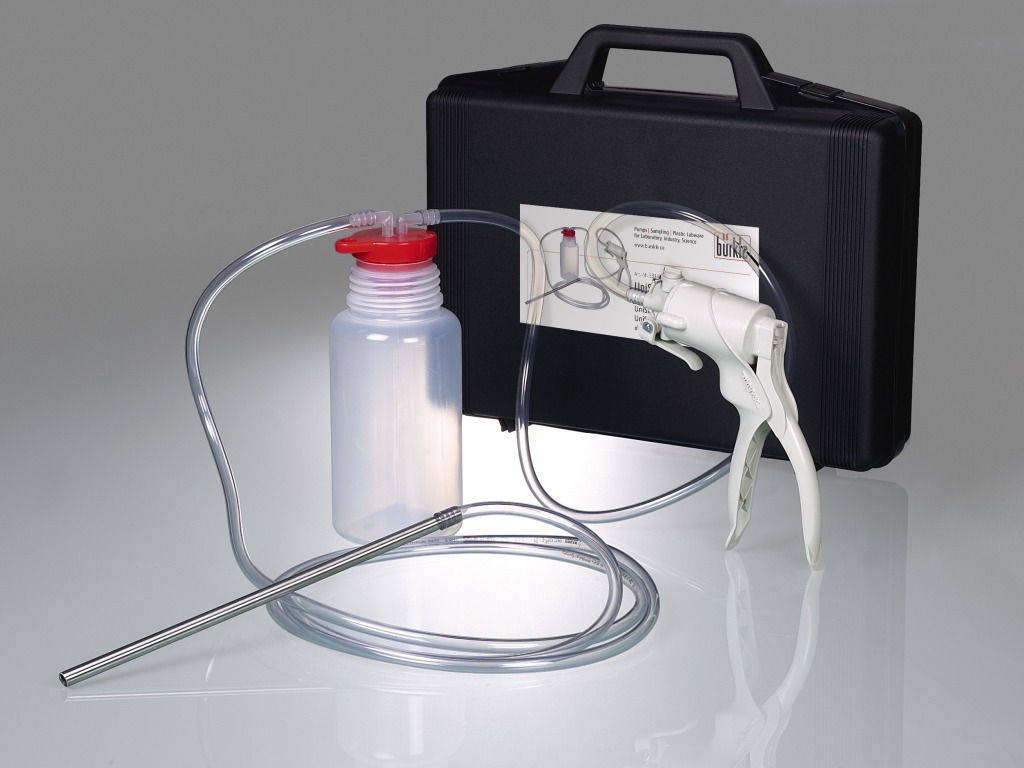

  • Complete in a handy transport case incl. sample bottle PP 1000 ml (33.81 oz.), vacuum pump, universal bottle adapter, hose weight made of AISI 304 (1.4301), 20 seal-it bottle seals
  • Universal bottle adapter made of PVC, for bottle necks Ø 24 mm (0.94 in.), 31 mm (1.22 in.), 39 mm (1.54 in.) and 50 mm (1.97 in.) nominal dimension, for sample bottles 100–1000 ml (3.38–33.81 oz.)

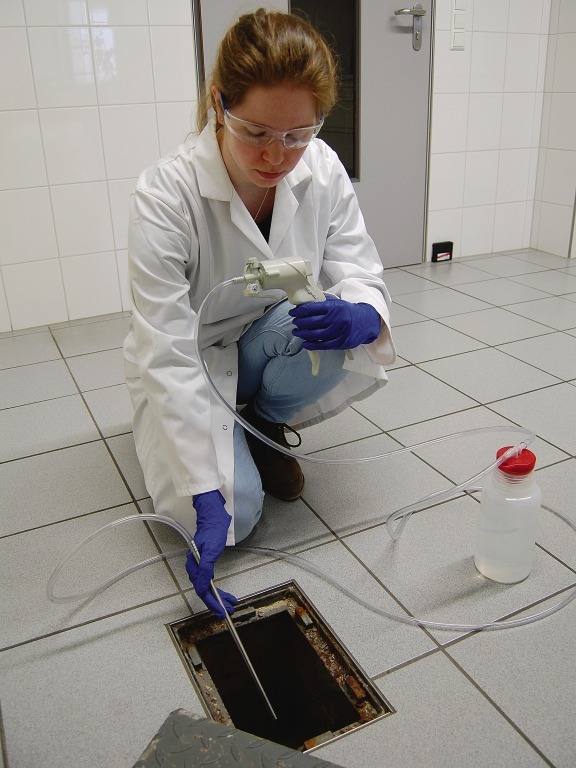

UniSampler with PVC hose and hose weight made of stainless steel. For deep, hard-to-reach places. The mass of the metal tube drags the hose to any depth.

Sampler for liquid samples from precisely pre-determined depth, with hand-operated vacuum pump. Sampling using vacuum pumps has the advantage that the liquid only comes into contact with the suction hose and the original sample bottle.

Use

  1. Lower the suction hose to the required depth.
  2. Attach the adapter to the sampling bottle.
  3. Create a vacuum using the handpump and collect the sample.
  4. Remove the filled sample bottle, close and label it.

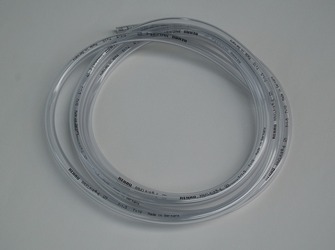

UniSampler replacement hose

Suction hose for replacement

UniSampler with telescopic lance

UniSampler with suction lance

The collection lance consists of an inner tube and an outer tube....

UniSampler "Ex"

UniSampler "Ex"

Sampler especially developed for sampling flammable liquids of Hazard...
