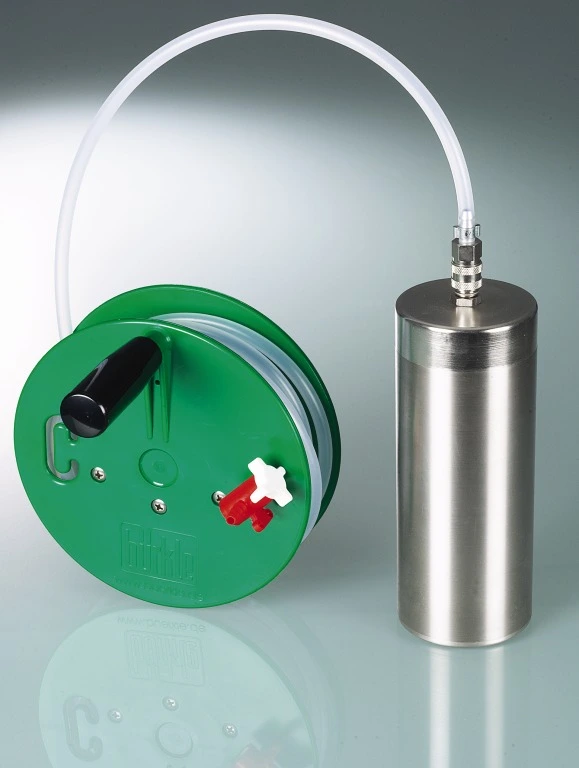

Target immersion cylinder

Target immersion cylinder

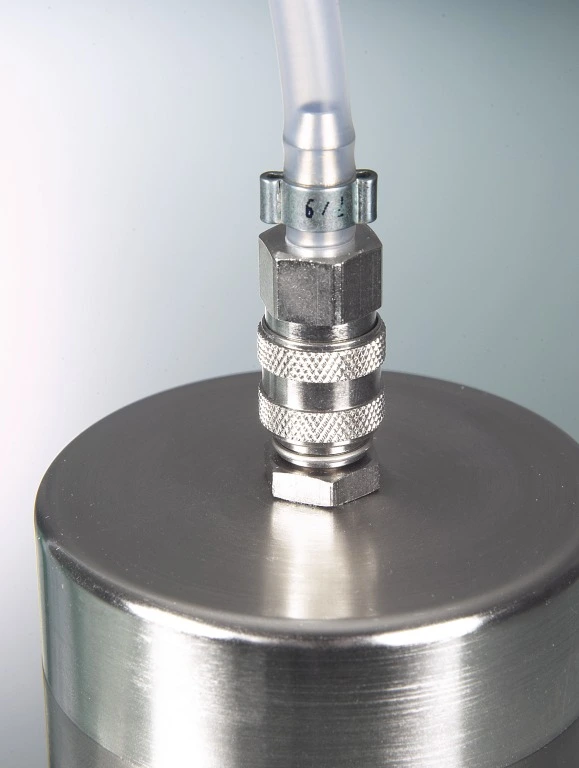

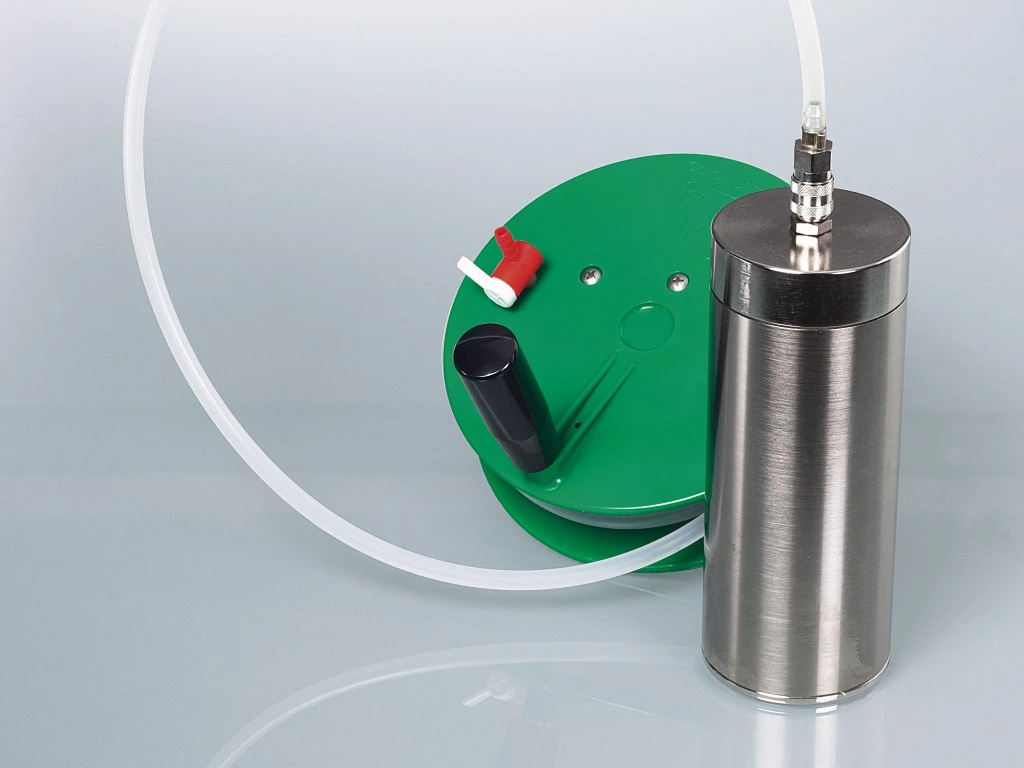

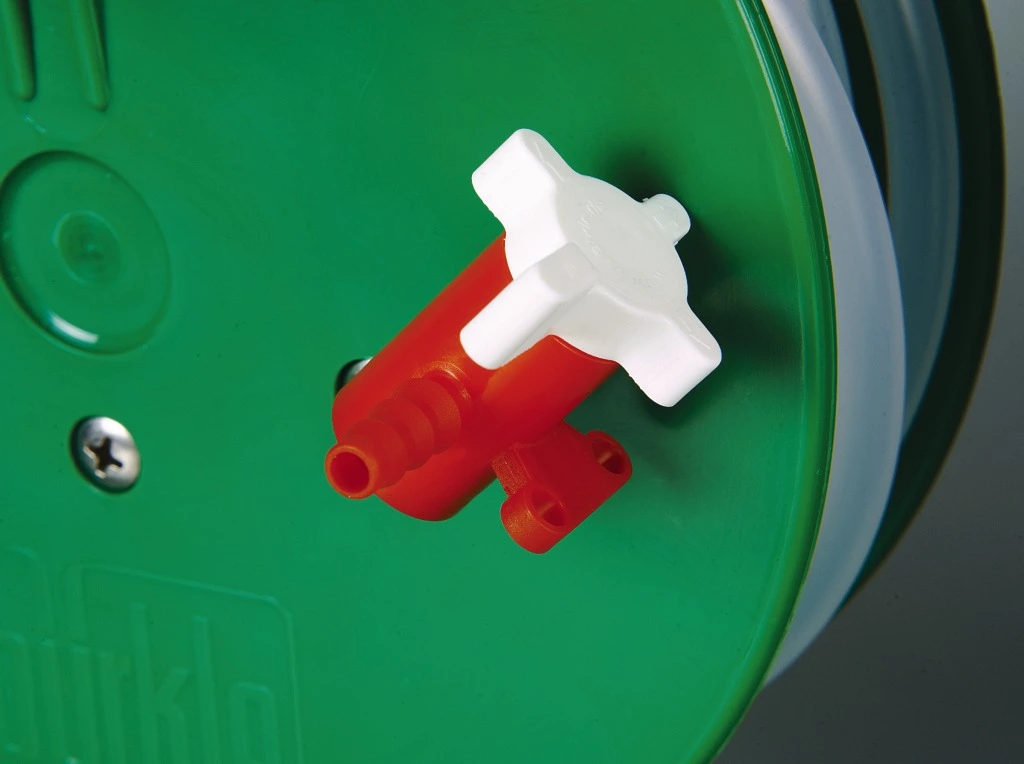

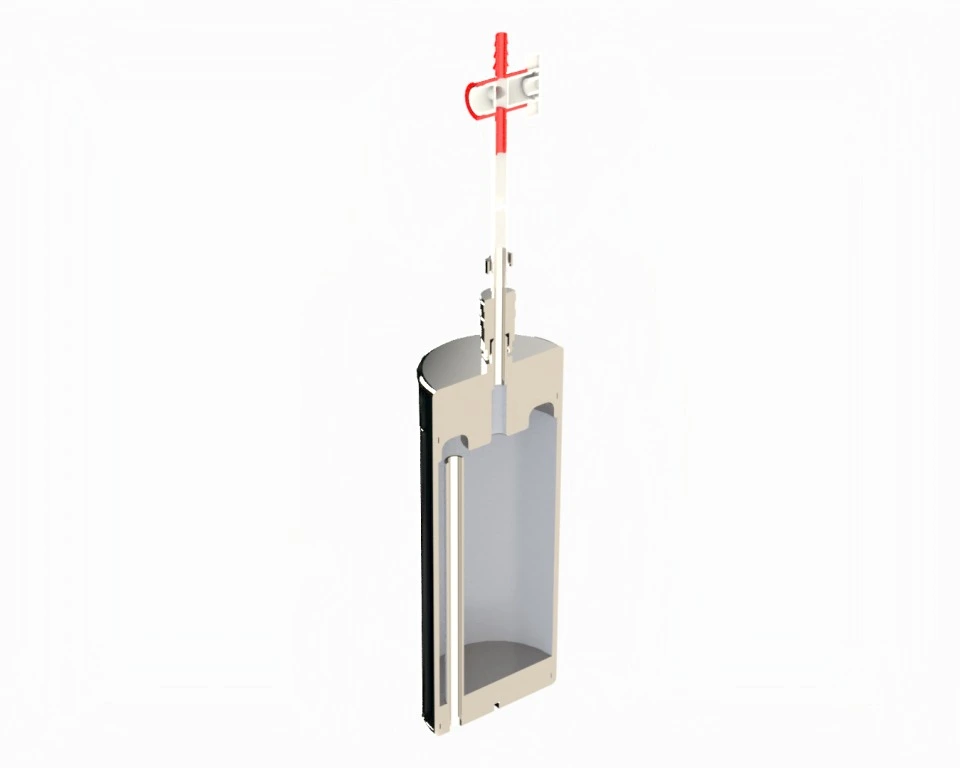

Immersion tub with venting valve Cross-section of the immersion tub with venting valve Target immersion cylinder, hose connection Target immersion cylinder, venting valve
1/5

In our catalog you will find this product on page 85

Look up in our flip catalog

Enter item number: {config.singleVariant.number}

Where to buy

At a glance

  • Weight 2.6 kg (5.73 pd.)
  • Incl. venting lowering cable (5 m (16.40 ft.)), valve and cable reel
  • Screw-off top enables easy cleaning

Please note

  • Warranty period 3 years
  • Material MS

Precise liquid samples can be taken with the Target immersion cylinder.

Use

  1. Lower the immersion cylinder to the required depth on the high-tensile, closed hose.
  2. When the target has been reached, open the air valve at the tube end.
  3. This vents the immersion cylinder and fills it.
  4. Retrieve the immersion cylinder.
  5. Open the cover and pour out the sample.
Manually-operated drum reel PA electrically-conductive

Manually-operated reel PA electrically-conductive

Manually-operated drum reel made of polyamide, black,...

Stainless steel lowering cable, PTFE-coated

Stainless steel lowering cable, PTFE-coated

Ulra pure materials, virtually no influence on the sample by the...

Lowering cable AISI 316L

Stainless steel lowering cable

Lowering cable made of stainless steel AISI 316L, good chemical...

Lowering cable plastic

Lowering cable made of PP cord

Lowering cable made of PP cord, red, cost-effective.

Copper lowering cable EX with loops

Copper lowering cable EX with loops

Lowering cable made of copper, made of metal that does not produce...

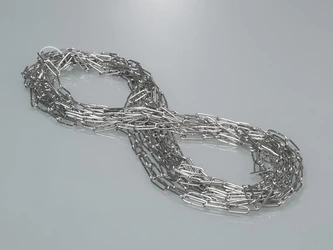

Lowering/ hoisting chain stainless steel
