Detailed information

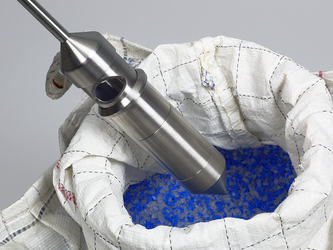

The SiloPicker is a target-point sampler designed for taking samples of free-flowing bulk solids directly from silos and other storage containers. It simplifies the sampling process and enables efficient collection of target point samples from specific depths or layers. A special mechanism opens the collection chamber closure only when the desired depth is reached and the collector is retracted. This allows for targeted samples to be taken for analysis or for several samples to be collected to produce a representative composite sample.

The collector's design makes it easy to penetrate the bulk material and obtain the desired sample without disturbing the surrounding material. However, the possible sampling depth is influenced by the density of the bulk material.
The SiloPicker can be disassembled into its individual parts for easy cleaning.

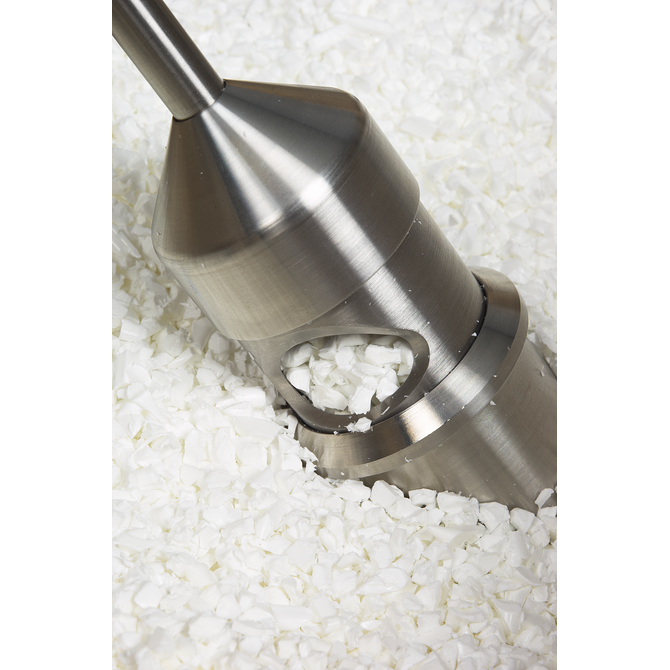

Silo sampler SiloPicker
Silo sampler SiloPicker
Silo sampler SiloPicker
Typical application area of the product

The SiloPicker is used to check the consistency and quality of bulk goods to ensure they meet specified standards. It is used for storage monitoring to detect spoilage, contamination, and other quality losses early on. It is also used to take samples for analysis to examine the properties of bulk goods. In agriculture, it is used to take samples of grain, animal feed, and other agricultural products directly from silos. In the food or chemical industry, it is used to take chemical powders and granulates for quality and safety tests.
How to use the product
  1. Immerse the sampler to the desired depth in the medium to be sampled. The sealing sleeve closes the filling opening.
  2. At the desired depth, pull the sampler back approx. 10 cm. This causes the sealing sleeve to open the filling opening.
  3. Move the sampler slightly up and down. This fills the sample container with the medium to be sampled.
  4. Pull the sampler out of the medium.
  5. Unscrew the lower part of the sample container and empty the sample into a suitable collecting vessel.
5340-1100_silopicker_gebrauchsanleitung.pdf 5340-1100_silopicker_gebrauchsanleitung.pdf
  • SiloPicker

Specifications

General material

1.4404 (316L)
Stainless steel 1.4404, AISI 316L

Collector dimensions

Plunge depth:
1200 mm (47.2441 in)
Total length:
1300 mm (51.1811 in)
Outer Ø:
50 mm (1.9685 in)

Sample chamber

Number of collection openings:
2
Sample quantity:
100 ml (3.3814 fl oz)
Start of the collecting chamber:
143 mm (5.6299 in)

Sampling lances

Sampling type:
Target point sample
Grain size samples:
powdery/fine-grained
Sample material:
free-flowing
Special properties Sample lances:
Removable tip
Top:
pointed
To the list of chemical resistance

The SiloPicker can be extended with extension rods up to a maximum length of 350 cm, so that bulk materials can also be reached in deeper areas of the silo with this sampler.

Complementary products

Wide neck bottle LDPE

Wide neck bottle LDPE

The large neck opening of the wide neck bottle facilitates filling, removal and emptying. The liquid-tight screw cap ensures safe transport and storage. LDPE bottles are easy to squeeze and comfortable to handle.
Wide neck bottle PP

Wide neck bottle PP

The large neck opening of the wide neck bottle facilitates filling, removal and emptying. The liquid-tight screw cap ensures safe transport and storage. The wide neck bottle is made of PP and is chemically resistant, non-sensitive and autoclavable.

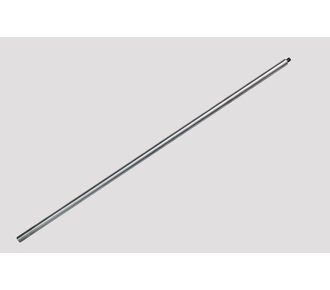

SiloPicker extension

SiloPicker extension

The SiloPicker extension is an accessory for the SiloPicker sampler. The extension rods enable sampling from a depth of up to 350 cm.
Aluminum bottle

Aluminum bottle

The robust and versatile aluminum bottle with tamper-evident screw cap meets the highest safety and quality standards for the storage and transport of substances and retained samples. With UN approval for maximum safety and reliability.

Similar products

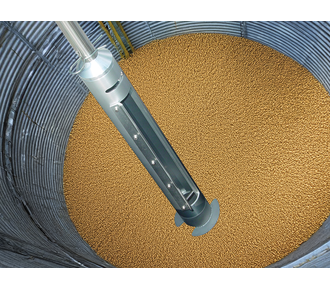

Tank and silo sampler SiloDrill Alu

Tank and silo sampler SiloDrill Alu

The SiloDrill is a specialized sampler for collecting samples of bulk materials from silos or tanks. It collects samples from multiple layers of the material, allowing for an analysis of the entire stored quantity.

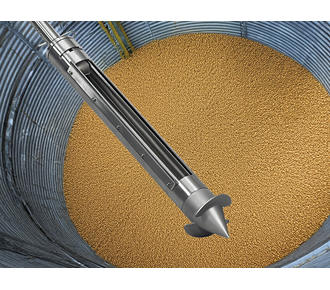

Tank and silo sampler SiloDrill AISI 304
