Detailed information

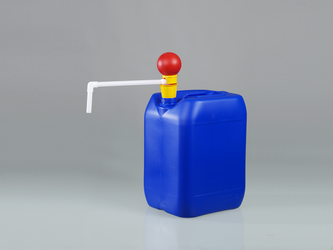

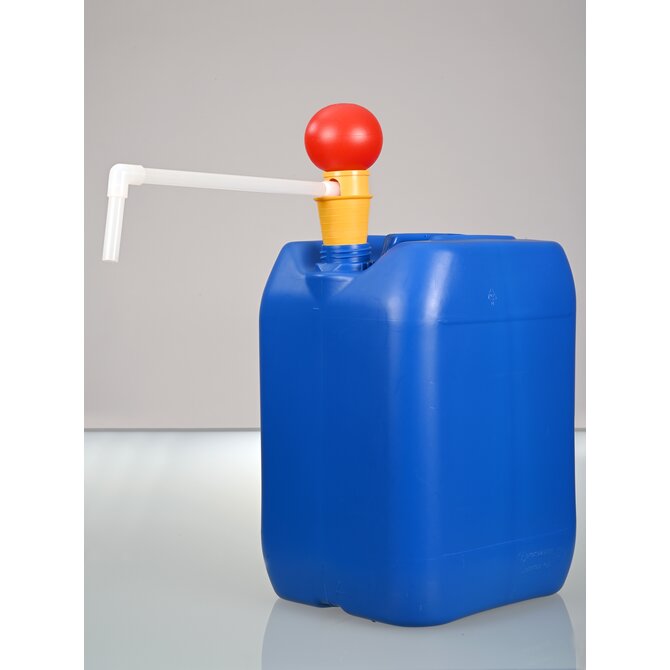

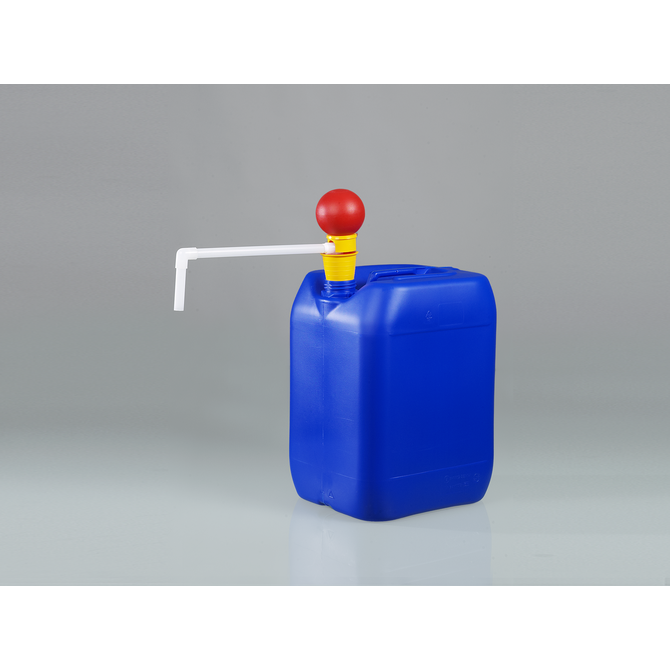

The OTAL^® hand pump with PVDF delivery tubes is a reliable pump with high chemical resistance.

Due to the special properties of PVDF, the hand pump is resistant to chlorine bleach and other chemicals. PVDF offers even better resistance to various acids and alkalis than other materials such as PP.

The pump outlet can be turned up to prevent dripping.

The OTAL^® PVDF hand pump is easy to use and can transfer liquids quickly and efficiently. It is an economical and practical solution for many applications.

OTAL^® hand and foot pumps are compact universal pumps for filling and transferring from containers and drums. Established in the market for more than 70 years, the pumps are known for their easy handling in daily use.

The drum and container pumps operate on the air-over-pressure principle. Only the delivery tubes come into contact with the liquid, which ensures a wide range of chemical resistance. Depending on the model, the tubes are made of PE, PP, PVDF or stainless steel. In this way, a wide variety of liquids can be filled quickly and easily.

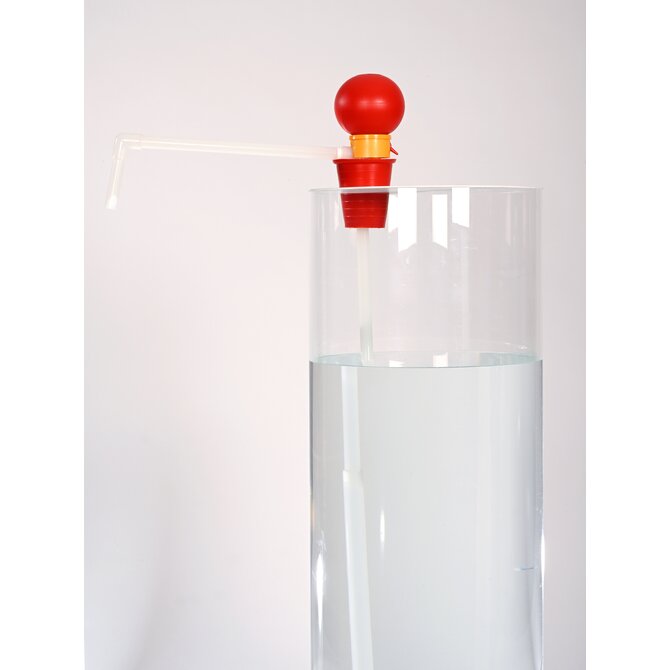

To ensure proper operation, the pumps must be mounted in an airtight container. Repeated actuation of the pump ball creates an overpressure in the container, which drives the liquid out of the container through the delivery tube. The liquid flow is pulsation-free and steady and can be stopped immediately by the air release valve without any after-running.

OTAL^® hand and foot pumps are extremely robust, durable and of outstanding quality. They can be used to transfer and fill acids, alkalis and aqueous solutions from larger containers to smaller ones easily and cost-effectively.

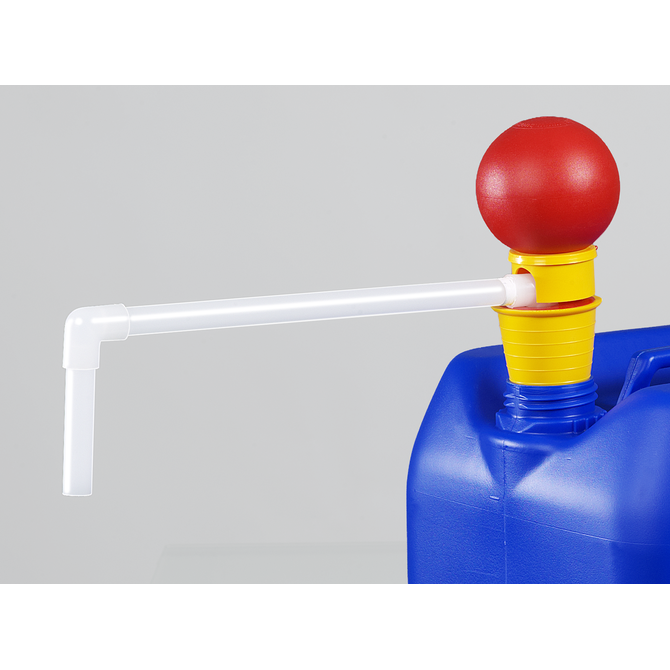

The universal plug allows the pump to be used with all common containers without the need for a threaded connection.

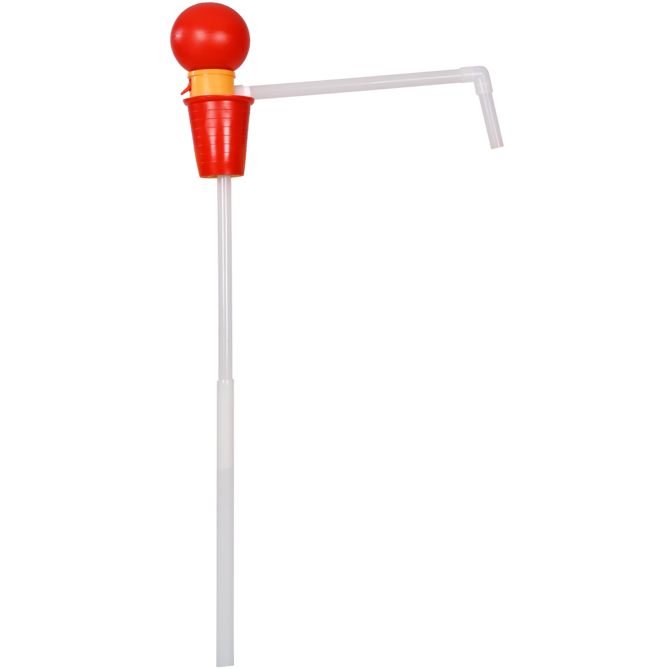

The telescopic dip tube is height adjustable and can be shortened if necessary. This ensures optimum residual discharge so that filling can be carried out from 220 liter drums as well as from smaller canisters.

OTAL^® hand and foot pumps are a practical and reliable solution for filling and transferring liquids. Their high quality, universal applicability and ease of use make them the perfect choice for everyday use.

Thanks to their compact design and universal applicability, the pumps are a practical solution for draining and transferring small quantities of water, oils, acids, alkalis, and other liquids with a maximum viscosity of approx. 500 mPas.

Typical application area of the product

The OTAL^® hand pump with PVDF delivery tubes is resistant to a wide range of chemicals and offers high chemical resistance. As a result, the OTAL PVDF pump is often used in demanding environments such as the chemical industry, laboratories, and other areas where corrosive or aggressive media must be handled.

How to use the product

If necessary, adjust the universal plug to fit the opening diameter of the container.
Fully extend the telescopic tube.
Insert the telescopic tube and universal plug into the container and push them together to form a seal.

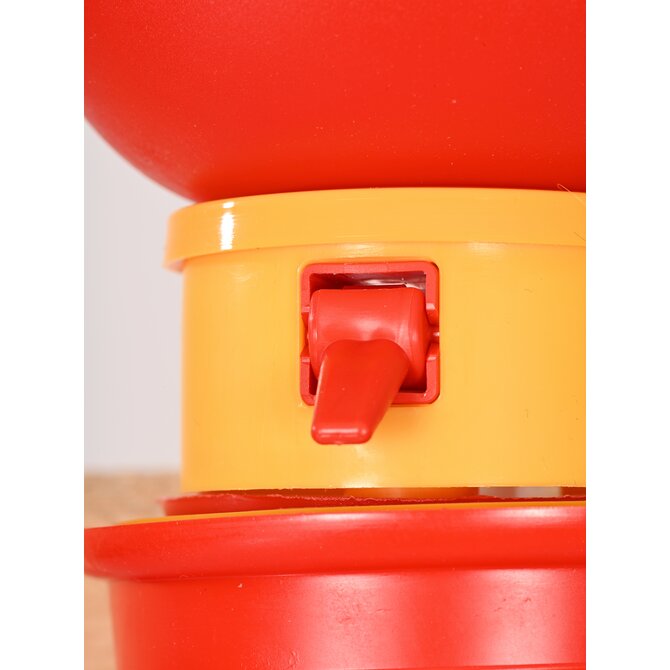

Close the stop valve.

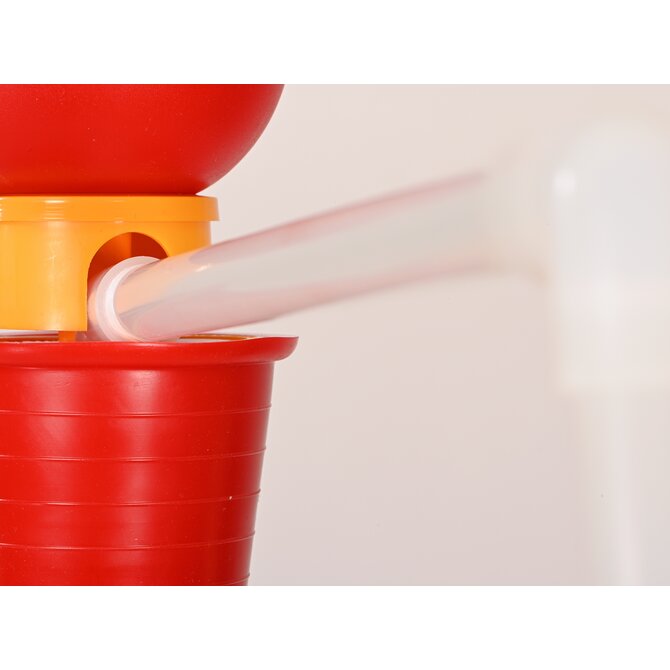

Position the discharge elbow over the filling container.

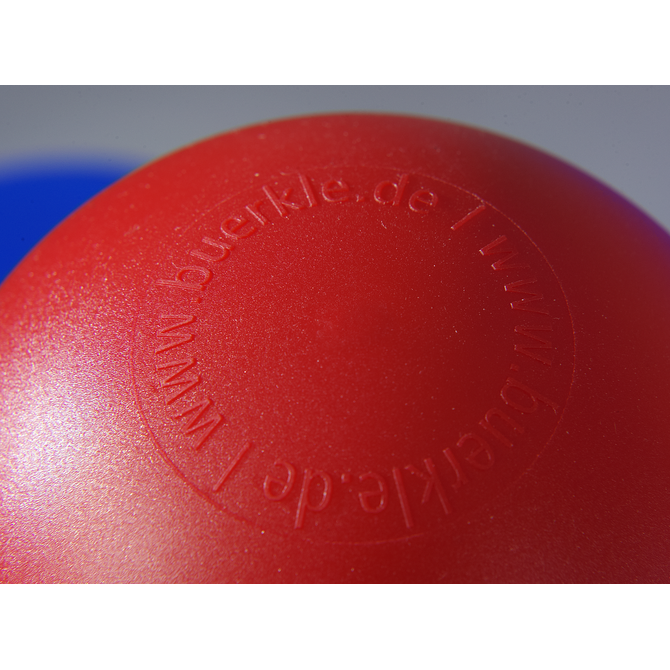

Actuate the pump ball and build up pressure. Liquid will now flow.
To stop filling, open the stop valve and release the excess pressure.

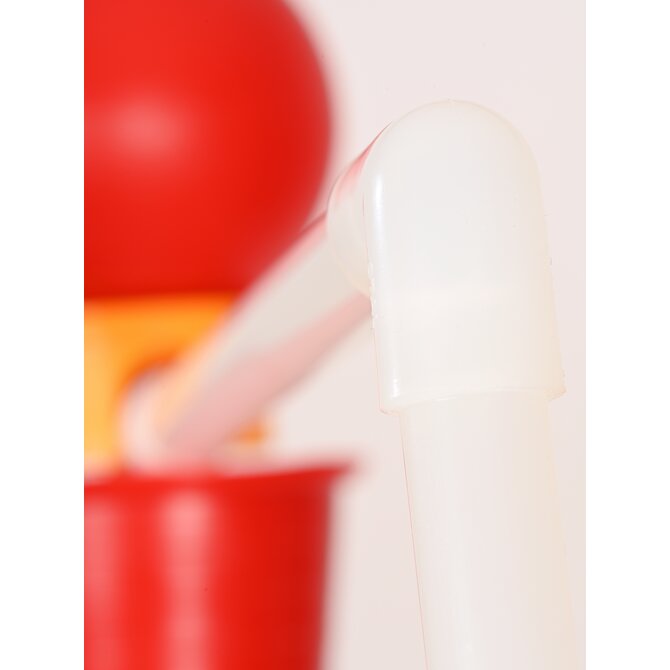

After filling, turn the discharge elbow with the opening facing up to prevent liquid from dripping.
