Please note

Please order the desired head as an accessory!

Detailed information

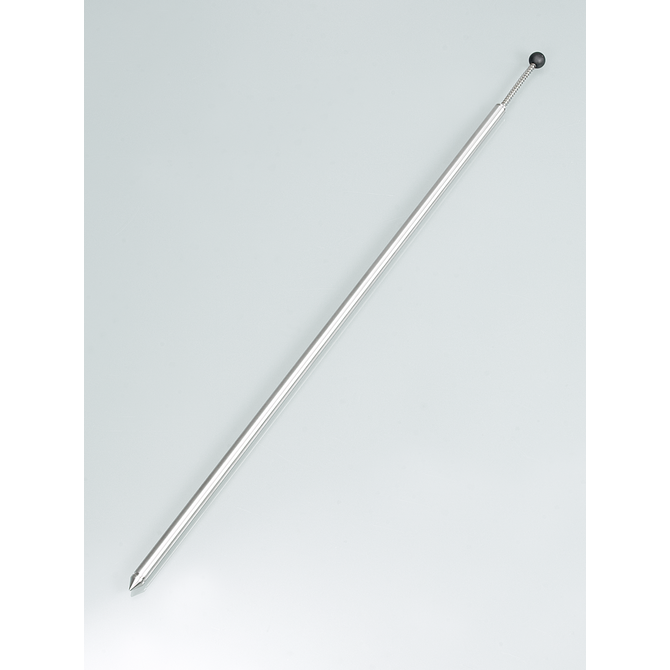

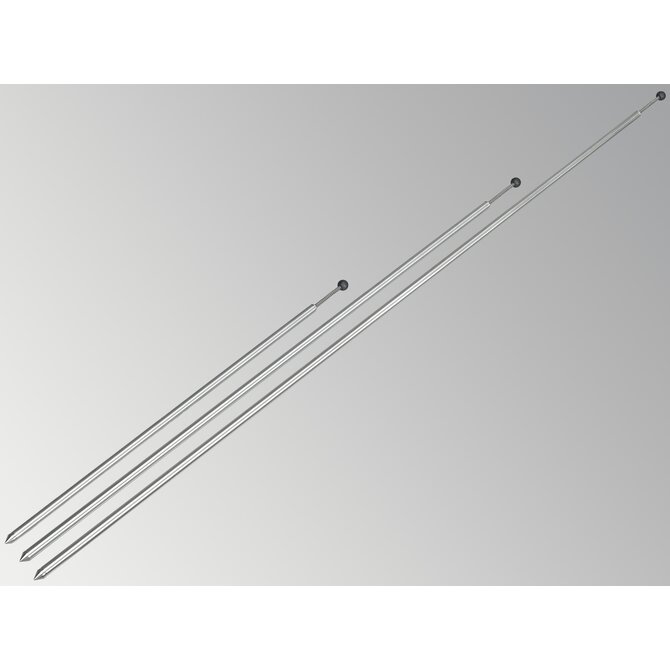

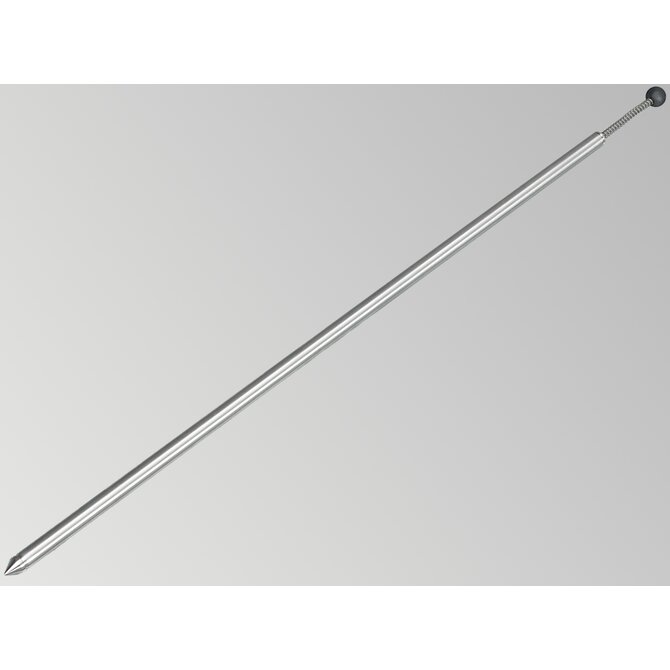

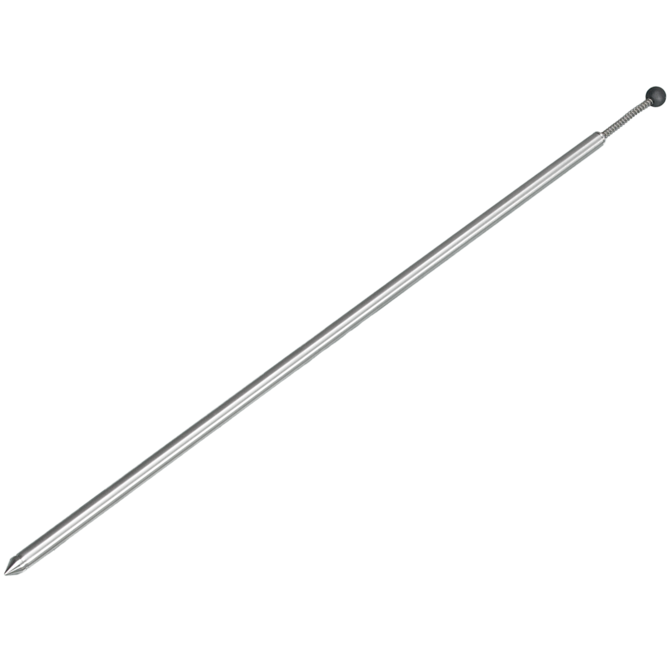

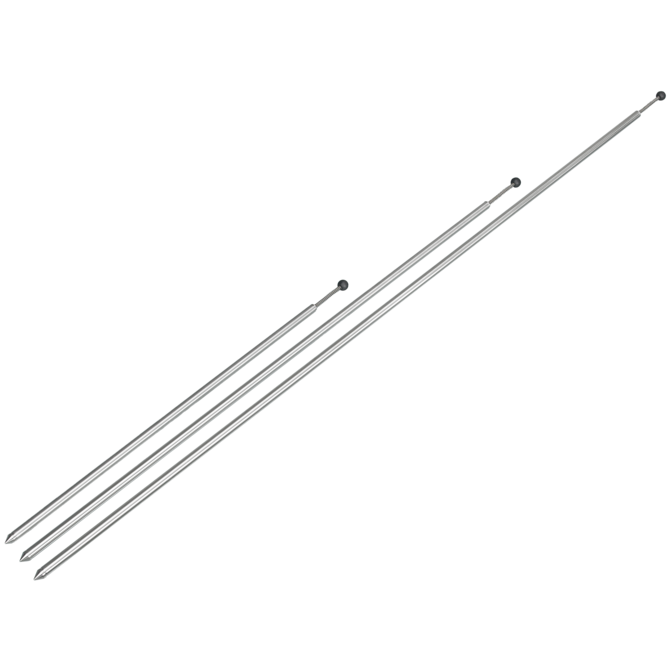

The MicroSampler has especially been designed for the sampling of small quantities of powder.

Volumes of 0.2 ml, 0.5 ml, 1.0 ml, 2.0 ml, 5.0 ml and 10 ml can be sampled easily, quickly and cleanly from different sampling depths from sacks or containers.

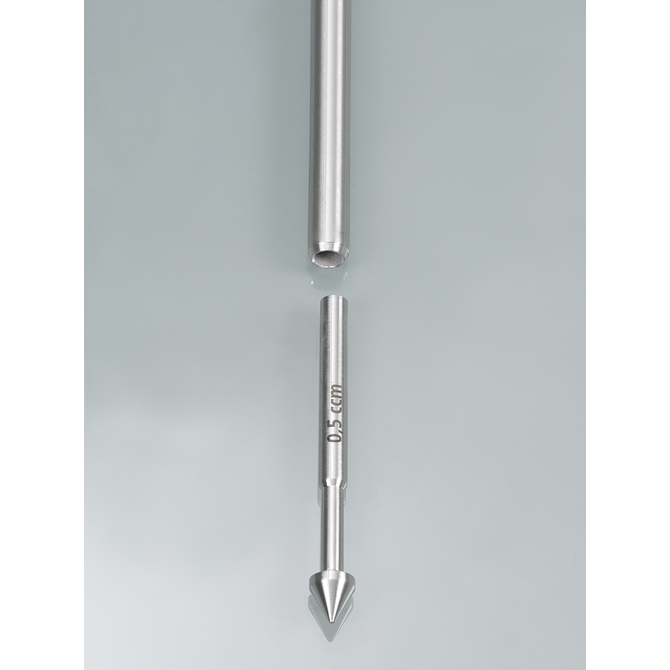

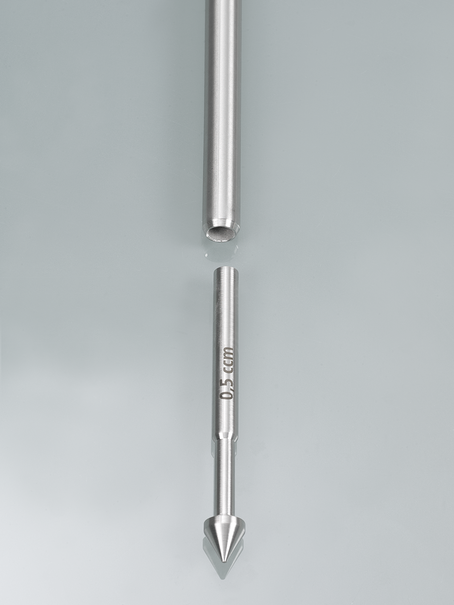

The tips of the MicroSampler are interchangeable. This means that tips with different volumes can be used.

Typical application area of the product

The MicroSampler has especially been designed for the sampling of small quantities of powder.
How to use the product

Use

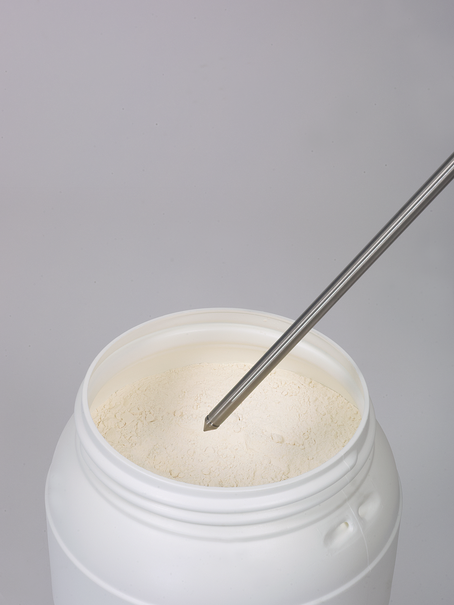

  1. Insert MicroSampler into powder.

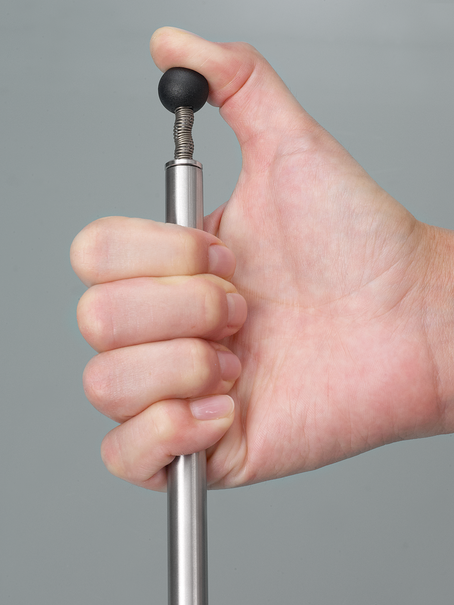

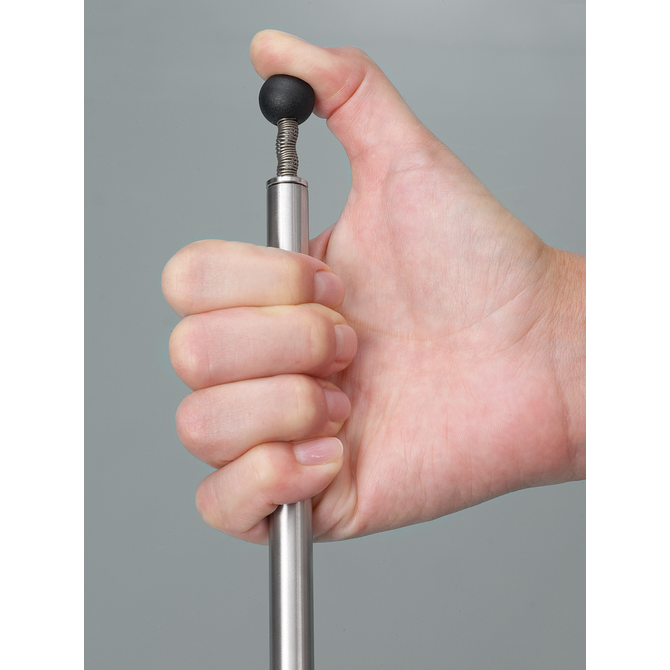

  2. At the predetermined point, open the volume tip by pressing the button, the sample flows in.
  3. Close the volume tip, the sample is collected.
  4. Pull back the lance, open the volume tip again, empty the sample.
5307-xxxx_microsampler_gebrauchsanleitung.pdf 5307-xxxx_microsampler_gebrauchsanleitung.pdf
  • MicroSampler

Specifications

General material

1.4404 (316L)
Stainless steel 1.4404, AISI 316L

Further materials

PA
Polyamide

Further materials

1.4310
Stainless steel 1.4310 (spring steel), AISI 301

Collector dimensions

Outer Ø:
12 mm (0.47 in)
Plunge depth:
550 mm (21.65 in)
Total length:
652 mm (25.67 in)

Lance for collection volume

For collection volumes of:
0.2 ml
For collection volumes up to:
1 ml

Sampling lances

Sampling type:
Target point sample
Grain size samples:
powdery/fine-grained
Sample material:
free-flowing
Special properties Sample lances:
Removable tip
Top:
pointed
To the list of chemical resistance

You need

The following accessories are required to use the product

You need

MicroSampler tips for samples 0.2 - 1.0 ml

Necessary accessories

Complementary products

Sampling bag SteriBag Sampling bag SteriBag

Sampling bag SteriBag

The bags are made of polyethylene and are therefore exceptionally tearproof and leakproof.

The SteriBag sampling bag is distinguished by its safe handling. When used according to instructions, samples are guaranteed sterile.

Integrated safety: The tab-ends are sealed in plastic film to prevent skin injuries.

Similar products

MicroSampler powder sampler for samples 2.0 - 10 ml MicroSampler powder sampler for samples 2.0 - 10 ml

MicroSampler powder sampler for samples 2.0 - 10 ml

The MicroSampler has especially been designed for the sampling of small quantities of powder.

Volumes of 0.2 ml, 0.5 ml, 1.0 ml, 2.0 ml, 5.0 ml and 10 ml can be sampled easily, quickly and cleanly from different sampling depths from sacks or containers.

The tips of the MicroSampler are interchangeable. This means that tips with different volumes can be used.
Powder Sampler Mini Powder Sampler Mini

Powder Sampler Mini

The Mini powder sampler is a stainless steel sampler for very small quantities. The sample material is drawn into the sampler and retracted when the sampler is released. A defined amount of sample is enclosed in the sample notch of the rod and removed.
Disposable powder sampler PharmaDispo Disposable powder sampler PharmaDispo

Disposable powder sampler PharmaDispo

The PharmaDispo disposable powder sampler is a world first, the first single-use, multiple target point sampler that collects three separate target point samples with one sampling. Manufactured under class 7 (ISO) clean room conditions, assembled and individually packaged.
Disposable powder sampler PharmaDispo, sterile Disposable powder sampler PharmaDispo, sterile

Disposable powder sampler PharmaDispo, sterile

The PharmaDispo disposable powder sampler is a world first, the first single-use multiple target point sampler that collects three separate target point samples with one sampling. Manufactured under class 7 (ISO) clean room conditions, assembled, individually packaged and sterilized.
StickProof StickProof

StickProof

Sampler for powder in the pharma area, made of stainless steel AISI 316L, material 1.4404. The especially slender tip can be inserted easily and deeply in order to take the sample. The conical inlet of the tip allows the collection of either very small or larger quantities. StickProof is constructed in one piece without edges, grooves or crevices for perfect and easy cleaning. The sample can be filled directly into the sampling bag from the outlet end. Fasten the bag with a sturdy clamp.
PharmaSpoon PharmaSpoon

PharmaSpoon

PharmaSpoon for taking samples of powdery substances, intermediate products and material in the pharmaceutical industry. Special materials with excellent surface qualities must be used for this to prevent cross-contamination. Our PharmaSpoon fulfils these requirements. Made of stainless steel AISI 316L (1.4404), surface highly polished by hand (not electro-polished!). The excellent surface properties of the PharmaSpoon provide significant advantages.
Novartos Multi pharmaceutical zone sampler 2-compartment sampler Novartos Multi pharmaceutical zone sampler 2-compartment sampler

Novartos Multi pharmaceutical zone sampler 2-compartment sampler

With the Novartos Multi double sampler, a double multi-point sample can be taken from several predefined sampling zones. Depending on the length, four, seven or nine collection chambers are fitted with two sample inserts (accessories) each for the double sampler.
Novartos Multi pharmaceutical zone sampler 3-compartment sampler Novartos Multi pharmaceutical zone sampler 3-compartment sampler

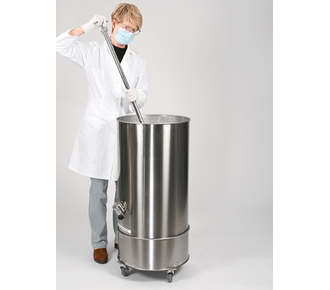

Novartos Multi pharmaceutical zone sampler 3-compartment sampler

With the Novartos Multi 3-compartment sampler, a triple multi-point sample is taken from several predefined sampling zones. Depending on the length, four, seven or nine collection chambers are fitted with three sample inserts (accessories) each for the triple sampler.
Novartos Uno pharmaceutical zone sampler 2-compartment sampler Novartos Uno pharmaceutical zone sampler 2-compartment sampler

Novartos Uno pharmaceutical zone sampler 2-compartment sampler

The Novartos Uno 2-compartment sampler allows a double target point sample to be taken from a pre-defined sampling area. A collection chamber is equipped with two sample inserts (accessories) for the double sampler.
Novartos Uno pharmaceutical zone sampler 3-compartment sampler Novartos Uno pharmaceutical zone sampler 3-compartment sampler

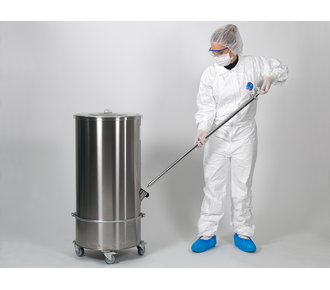

Novartos Uno pharmaceutical zone sampler 3-compartment sampler
