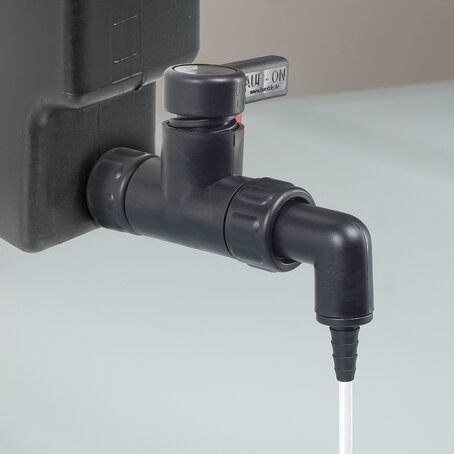

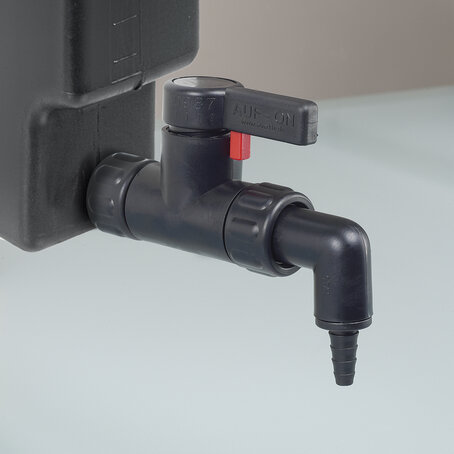

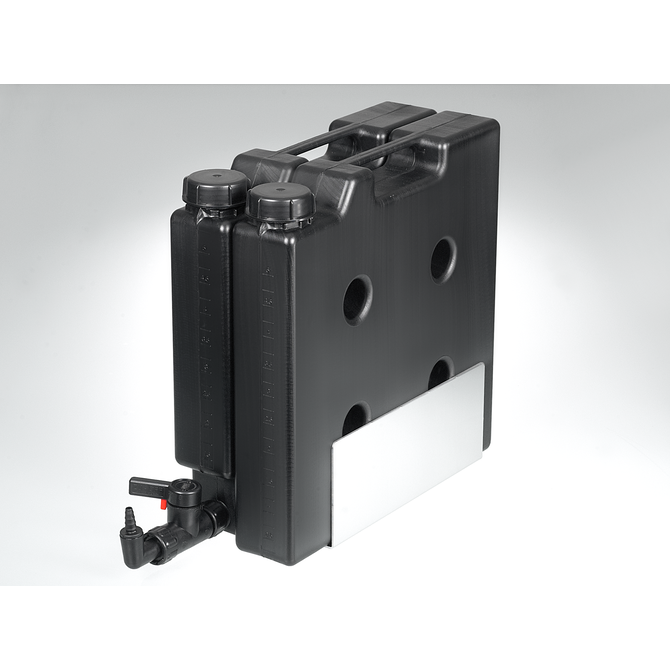

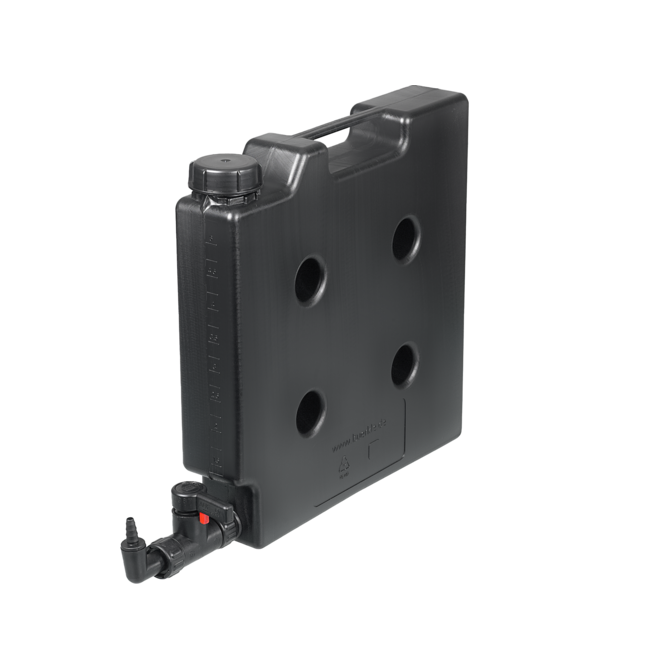

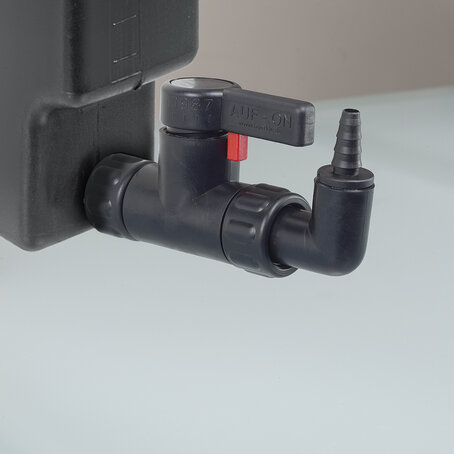

Compact canister set, electroconductive
Plastic canister with stopcock for highly flammable liquids
- Space-saving and optimum use of space
- High-quality canister and outlet tap in one
- Precise and clean dosing of the liquid
Please note
Caution! When handling flammable or highly flammable liquids, follow the explosion protection guidelines. All parts must be grounded (e.g., using the antistatic kit).
Detailed information
The electrically conductive space saving kit consists of a 5 l (0435-2055) or 10 l (0435-2105) space saving canister and a StopCock PA (0525-1100) drain tap. The tap and canister can be grounded with the antistatic kit, making them suitable for use in potentially explosive atmospheres.
The space saving kit, which is electrically conductive, allows space saving storage as well as convenient handling of the liquid through direct filling, for practical storage and filling even in confined spaces.
Typical application area of the product
The electrically conductive canister with drain tap can be used to fill and store flammable and highly flammable liquids in explosion groups IIA, IIB and IIC, such as laboratory waste. It is used wherever strict safety protocols require the risk of electrostatic discharge to be minimized. For example, in the chemical, pharmaceutical, paint, agricultural, and mining industries. In hazardous areas where flammable materials, explosive chemicals or finely dispersed particles are handled.
- Space saving canister with 3/4" threaded connection, electrically conductive and StopCock PA discharge stopcock
Specifications
General material
PE-HD
High-density polyethylene (HDPE)
General material
PA
Polyamide
General material
PTFE
Polytetrafluoroethylene
Closure
- Closure type:
- Screw cap
Volume
- Contents:
- 5 l (1.3209 gal)
Body dimensions
- Height with fastener:
- 335 mm (13.189 in)
- Length:
- 437 mm (17.2047 in)
- Width:
- 65 mm (2.5591 in)
Thread
- Thread:
- S 50x4 (DIN50)
- Version:
- External thread
Coloring
- Color:
- black
Dimensions neck/thread
- Thread Ø:
- 50 mm (1.9685 in)
- Inside neck Ø:
- 41 mm (1.6142 in)
Canister properties
- Holder for outlet tap:
- Spigot with 3/4 inch external thread
Suitable for use in:
- Ex zone:
- 0,1,2
- Explosion groups:
- IIA, IIB
Canister
- Special properties canister:
- for flammable liquids,space-saving
You need
The space-saving canister is also available without a threaded connection. There is also a version made of transparent PP.
Similar products
Compact space-saving set
Compact canister & StopCock set

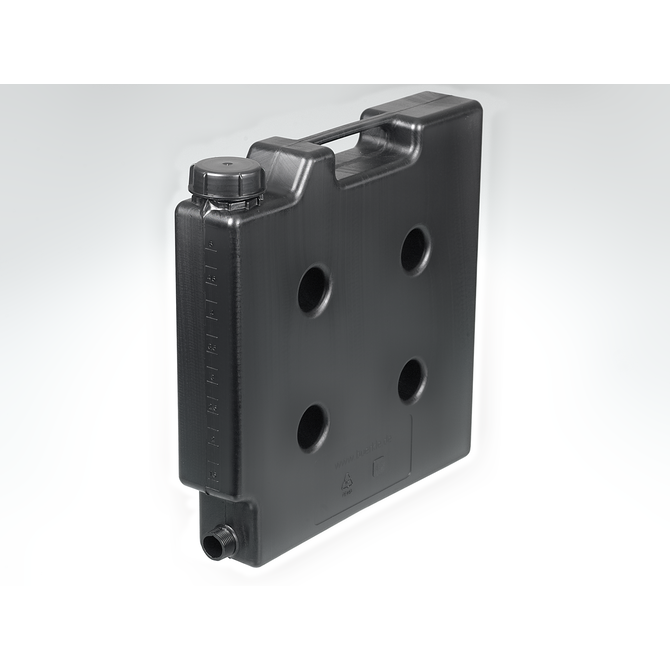

Space-saving canister with 3/4" threaded connection, electrically conductive
Space-saving canister, electrically conductive

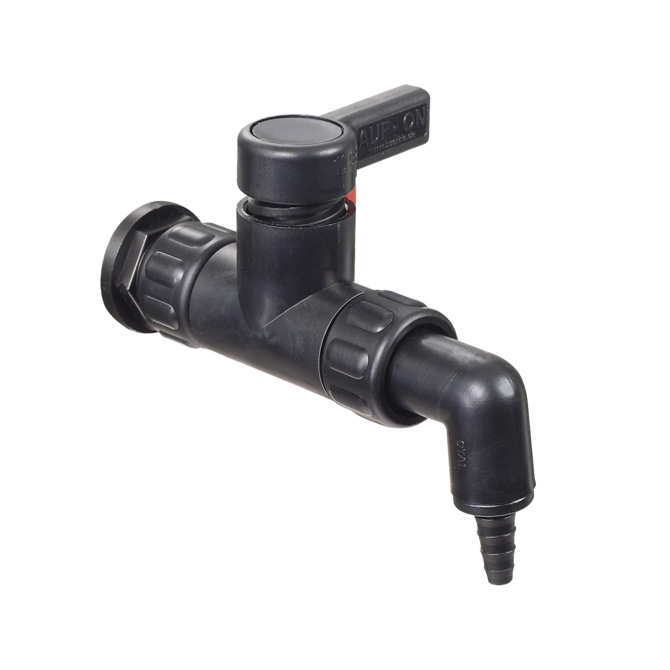

StopCock PA, electroconductive
