To all specifications

Packaging unit

Piece

Where to buy

Please note

Container autoclavable without lid and accessories.

Detailed information

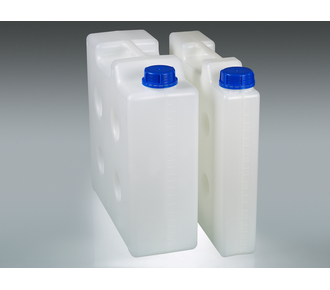

The StopCock space saving set consists of the space saving canister with threaded connection 5 l (0435-2050) or 10 l (0435-2100) and the StopCock drain tap (0525-1000).

The space-saving StopCock set, consisting of the space-saving canister with 3/4" threaded connection and the StopCock drain tap, enables space-saving storage as well as convenient handling of the liquid through direct filling or clarification.

The space saving set is a filling or settling canister for convenient storage and filling even in confined spaces.

Typical application area of the product

In laboratories, where space is often at a premium, the space-saving canister provides safe storage for chemicals. In production environments, liquids can be stored efficiently and dispensed precisely when needed.
The canister's food-grade materials make it ideal for storing food additives, flavorings, and other liquid ingredients.
In environmental applications, the canister can be used to collect, store and transport water samples or hazardous liquids.
  • Space-saving canister with threaded connection and StopCock drain cock

Specifications

General material

PP
Polypropylene

General material

PE-HD
High-density polyethylene (HDPE)

General material

PE-LD
Low-density polyethylene (LDPE)

General material

PTFE
Polytetrafluoroethylene

Closure

Closure type:
Screw cap

Volume

Contents:
5 l (1.3209 gal)

Body dimensions

Height with fastener:
335 mm (13.189 in)
Length:
437 mm (17.2047 in)
Width:
65 mm (2.5591 in)

Scaling

Division:
0.25 l (0.066 gal)
Scale:
transparent embossed

Thread

Thread:
S 50x4 (DIN50)
Version:
External thread

Coloring

Color:
colorless

Dimensions neck/thread

Thread Ø:
50 mm (1.9685 in)
Inside neck Ø:
41 mm (1.6142 in)

Canister properties

Holder for outlet tap:
Spigot with 3/4 inch external thread

Canister

Special properties canister:
suitable as a clarification/sedimentation tank,space-saving
To the list of chemical resistance

The space-saving canister is also available in a version without a threaded connection or as a set with the Compact drain cock.
