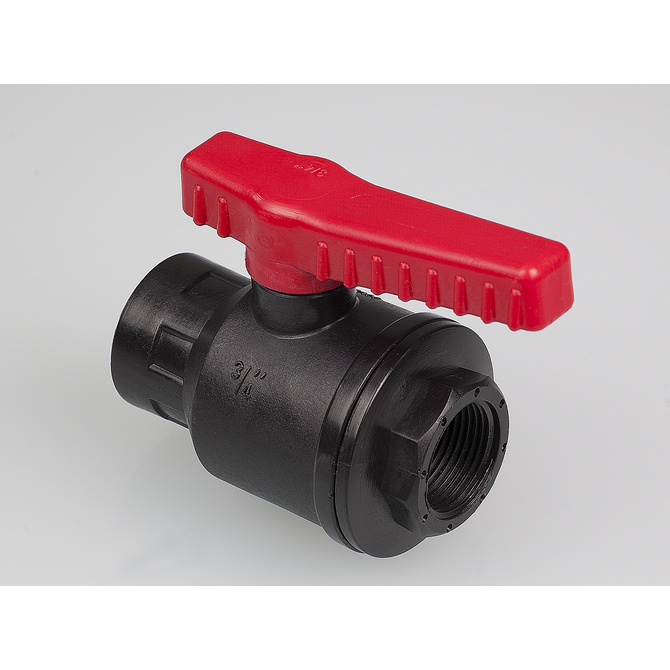

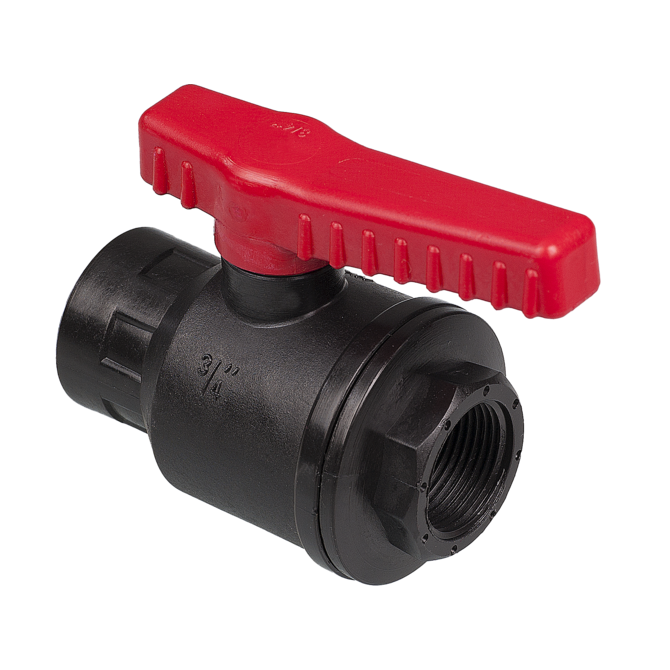

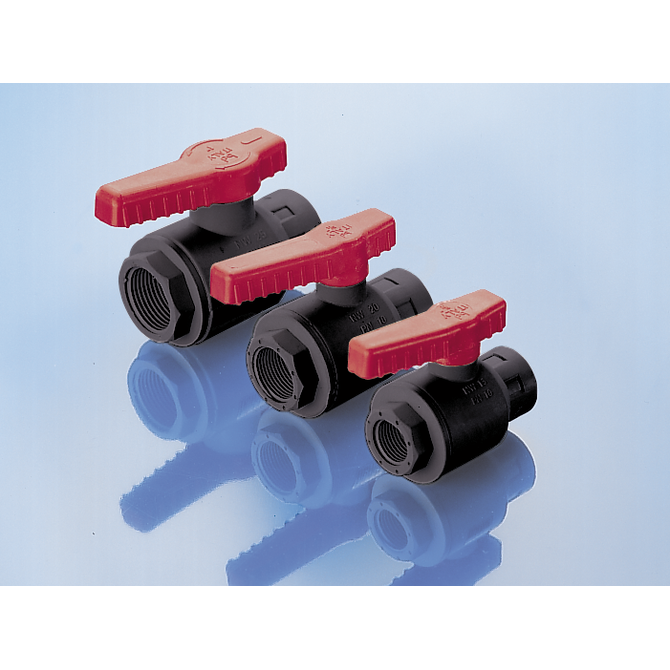

Barrel ball valves PP
- Suitable for crystallizing media
- Max. 10 bar pressure at 20 °C
- Individually adaptable thanks to a wide range of accessories
Detailed information
Barrel ball valves made of PP for barrels with threaded connections.
- Barrel ball valve PP
Specifications
General material
PP
Polypropylene
Further materials
FKM, FPM
Fluorine rubber
Further materials
PTFE
Polytetrafluoroethylene
Connection
- Connection type:
- Thread
- Thread:
- G 3/4 Zoll
- Version:
- Internal thread
Coloring
- Color:
- black/red
Spigot outlet
- Outlet type:
- Thread
- Thread:
- G 3/4 Zoll
- Version:
- Internal thread
Operating pressure (at +20 °C)
- Pressure max.:
- 10 bar (145.0377 psi)
Operating temperature
- Temperature max.:
- 80 °C (176 °F)
Nominal Ø
- Nominal diameter:
- 20 mm (0.7874 in)
Dimensions
- Length:
- 110 mm (4.3307 in)
- Width:
- 54 mm (2.126 in)
- Height:
- 89 mm (3.5039 in)
Type of spigot
- Design of the stopcock:
- plug valve
- Flow rate:
- low flow rate
- Special features:
- Extensive accessories
Complementary products
Thread adapter for ball valve
This polypropylene thread adapter allows for the easy connection of a ball valve (drain tap) to various drum or container threads. The adapter has a ¾″ (G 3/4″) female thread, compatible with the inlet thread of standard commercial ball valves. This means a ¾″ ball valve can be securely screwed into a drum opening without the need for special tools. Made of durable, chemically resistant PP, the adapter withstands the effects of the stored medium and ensures a leak-tight connection. With this adapter, attaching a drain tap to a drum or jerrycan is quick and simple – it provides the standard connection between different thread types.
Thread sealing tape PTFE
Adapter set thread adapter PP
Thread adapter set consisting of:
- Adapter PP outside/inside, S 56x4 (Tri-Sure) - G 2"
- Adapter PP outside/inside, S 70x6 (Mauser) - G 2"
- Adapter PP inside/inside, S 61x6 (DIN 61) - G 2"
- Adapter PP inside/inside, S 71x6 (DIN71) - G 2"
