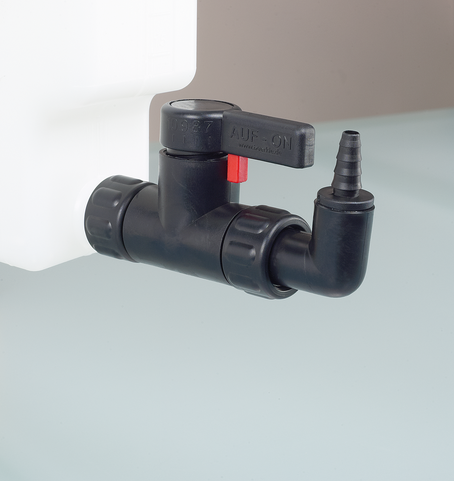

StopCock PA, electroconductive

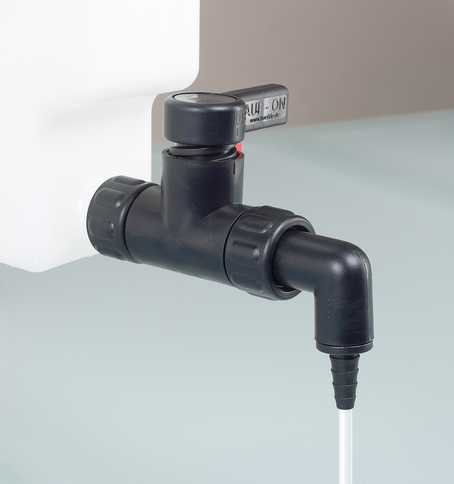

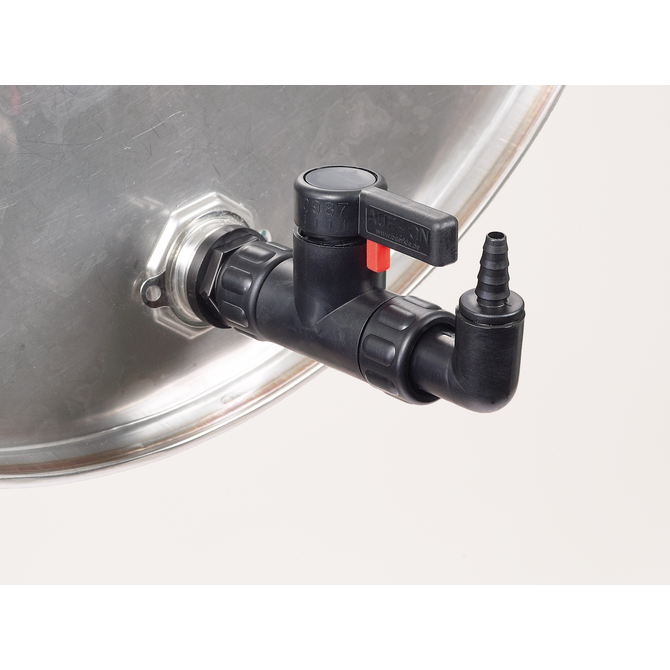

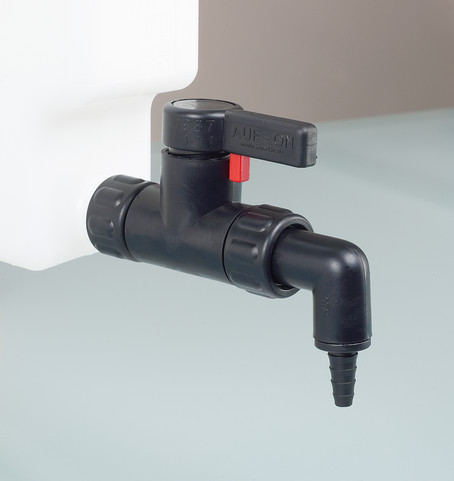

- With discharge angle and rotatable spout preventing drips
- With tapered spout for bottles with narrow openings with a diameter from 6 to 8 mm
- Media-contacting parts PA conductive to electricity and PTFE
- Supplied with PA adapter conductive to electricity for 3/4" inner thread
- Tight-closing for complete seal
- Especially effortless
- With connecting cap nut, guaranteed vertical position of the cock
- Pressure-resistant up to 2 bar at 20 °C (without discharge bracket and grommet)
Please note

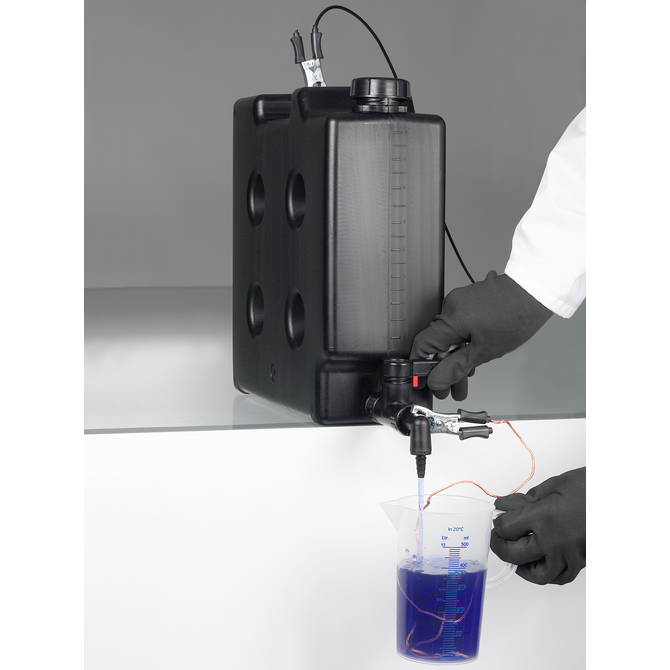

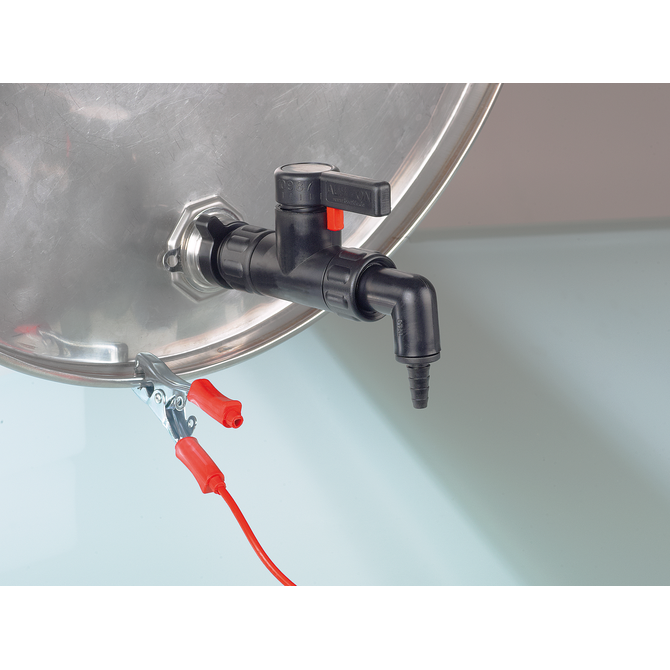

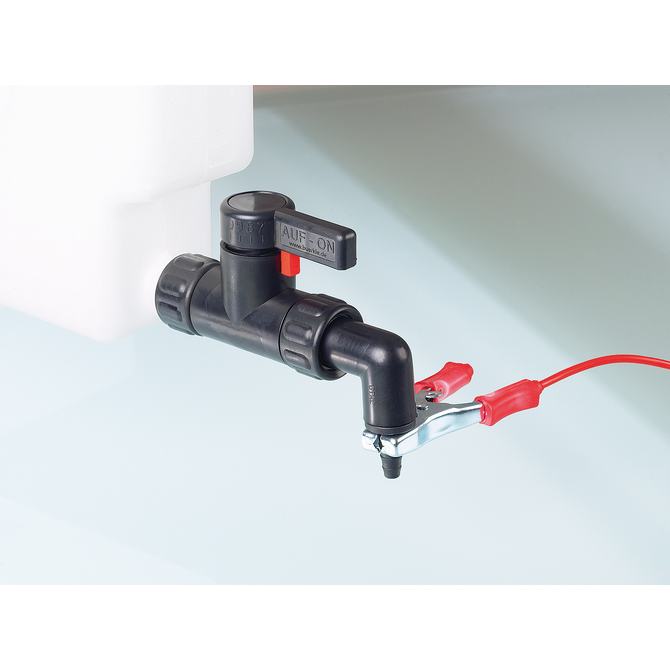

Caution! When handling flammable or highly flammable liquids, follow the explosion protection guidelines. All parts must be grounded (e.g., using the antistatic kit).
Pay attention to the chemical resistance of the materials! See also "List of chemical resistance"
Detailed information
Commercially available spigots made of the materials polyethylene or polypropylene cannot be used for solvents.

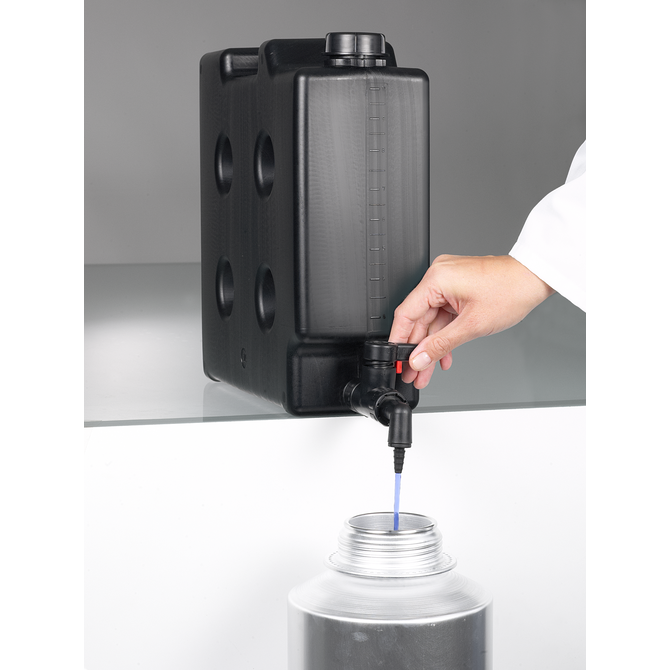

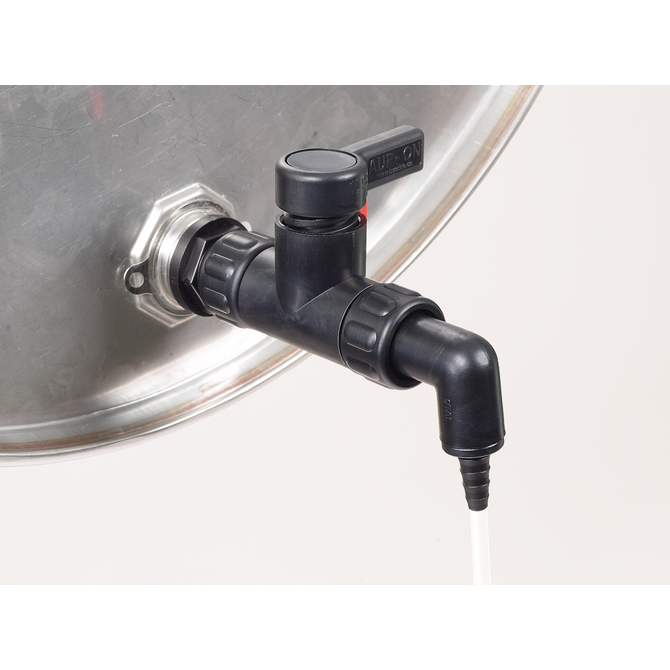

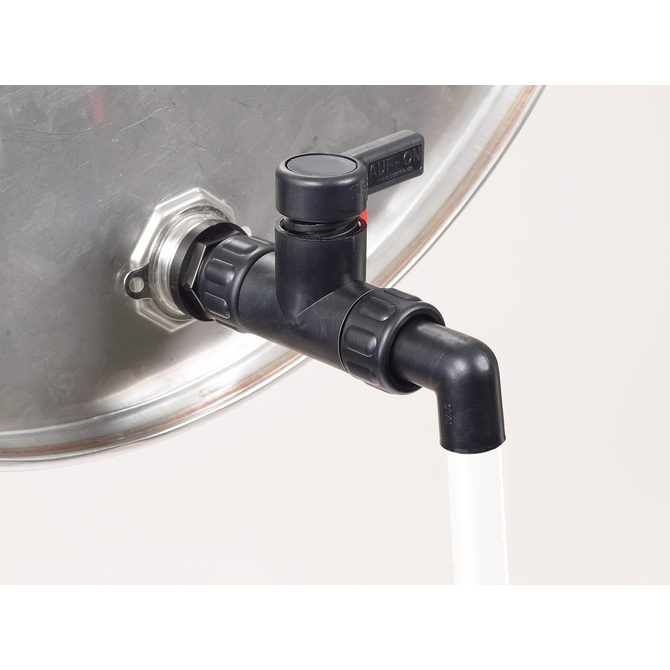

StopCock PA fits onto 3/4" outer threads and with the supplied adapter onto 3/4" inner threads and therefore onto nearly all commercially available canisters and barrels where the discharge thread is at the bottom.
The StopCock discharge cocks fit all containers with G 3/4" connection threads. Thread adapters facilitate connection of cocks to nearly all containers.
Typical application area of the product
The spigot StopCock PA is made of electrically conductive polyamide and therefore perfectly suitable for solvents.
- StopCock PA, electroconductive
- Adapter onto 3/4" inner threads
Specifications
General material
PA
Polyamide
Further materials
PTFE
Polytetrafluoroethylene
Connection
- Connection type:
- Thread
- Thread:
- G 3/4 Zoll
- Version:
- Cap nut
Further thread
- Thread:
- G 3/4 Zoll
- Version:
- External thread
Coloring
- Color:
- black
Spigot outlet
- Outer outlet Ø:
- 6 mm (0.2362 in)
- Outlet type:
- Angle discharge with spout
Nominal Ø
- Nominal diameter:
- 5 mm (0.1969 in)
Operating pressure (at +20 °C)
- Pressure max.:
- 20 bar (290.0754 psi)
Dimensions
- Length:
- 150 mm (5.9055 in)
- Width:
- 33 mm (1.2992 in)
- Height:
- 95 mm (3.7402 in)
Suitable for use in:
- Ex zone:
- 0,1,2
- Explosion groups:
- IIA, IIB
Type of spigot
- Design of the stopcock:
- plug valve
- Flow rate:
- low flow rate
- Special features:
- Tap can be freely positioned
