Stainless steel barrel pump - discharge hose/stopcock

In our catalog you will find this product on page 19

Look up in our flip catalog

Configure your version

Enter item number: {config.singleVariant.number}

At a glance

  • Immersion tube Ø 32 mm (1.26 in.)
  • Removable hose, 1.2 m (3.94 ft.) in length
  • Ball valve made of stainless steel NW 8 mm (0.31 in.)
  • Discharge nozzle Ø 12.8 mm (0.50 in.)

Please note

Not suitable for acetone!

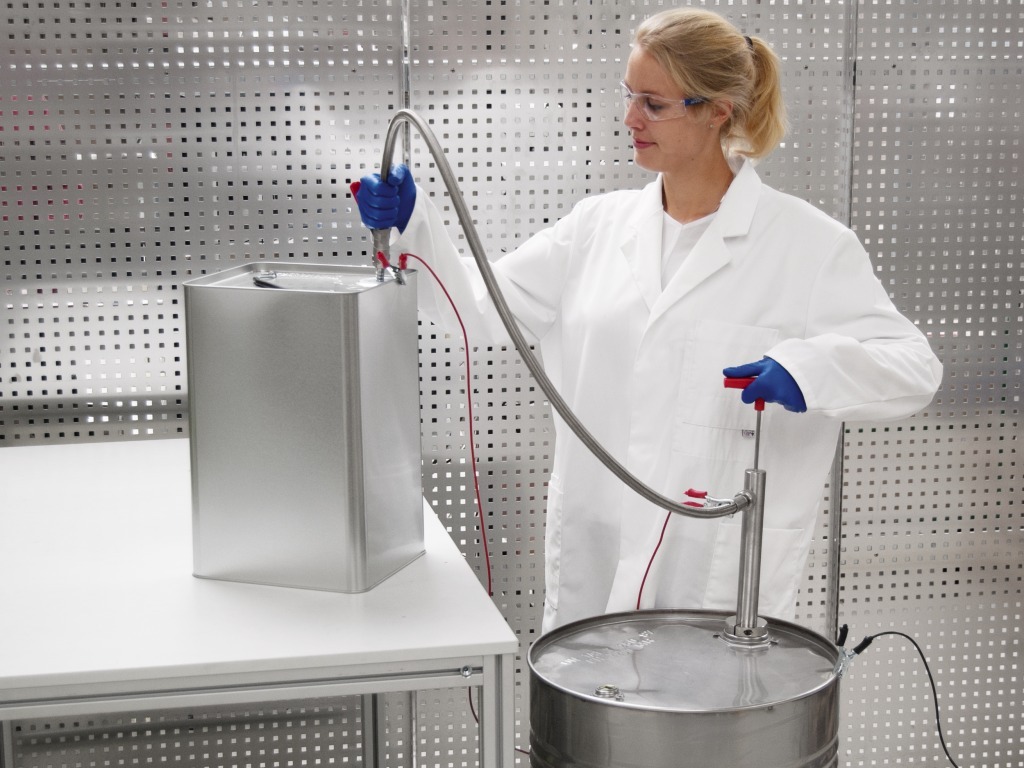

When withdrawing flammable liquids, the barrel and pump have to be grounded! Use Anti-static set!

  • Observe explosion protection guidelines
  • Suitable for use with foodstuffs
  • Material V2A

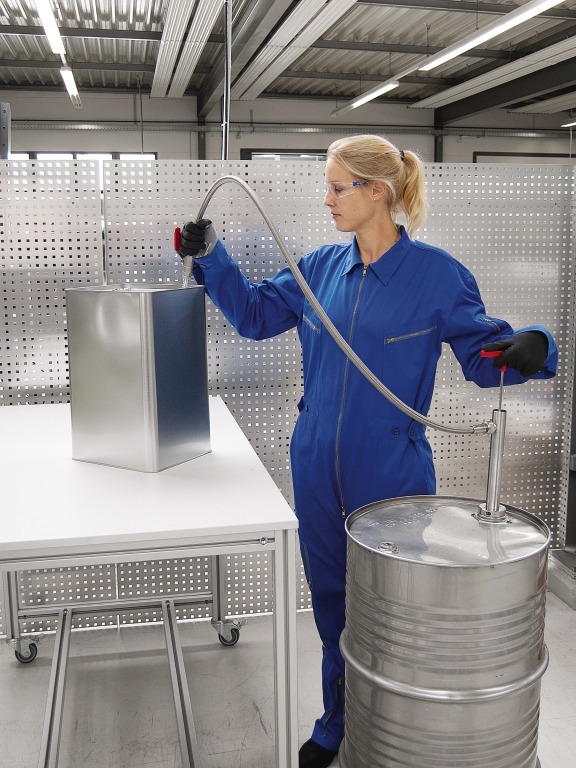

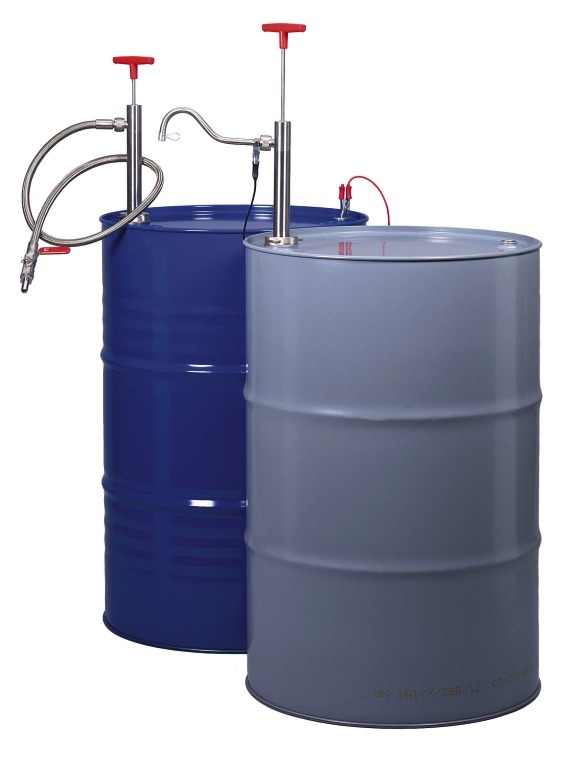

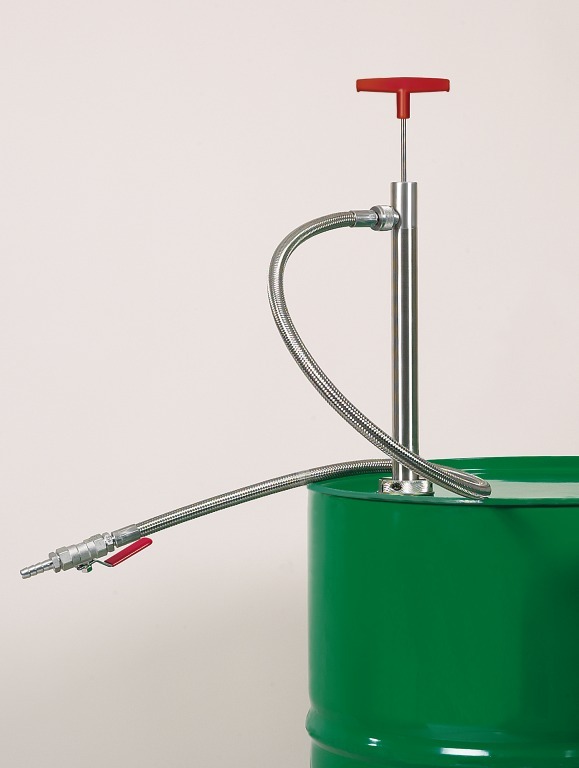

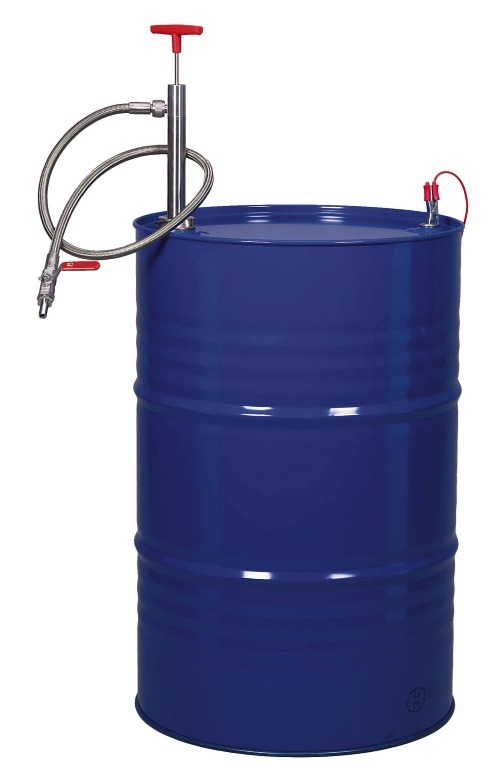

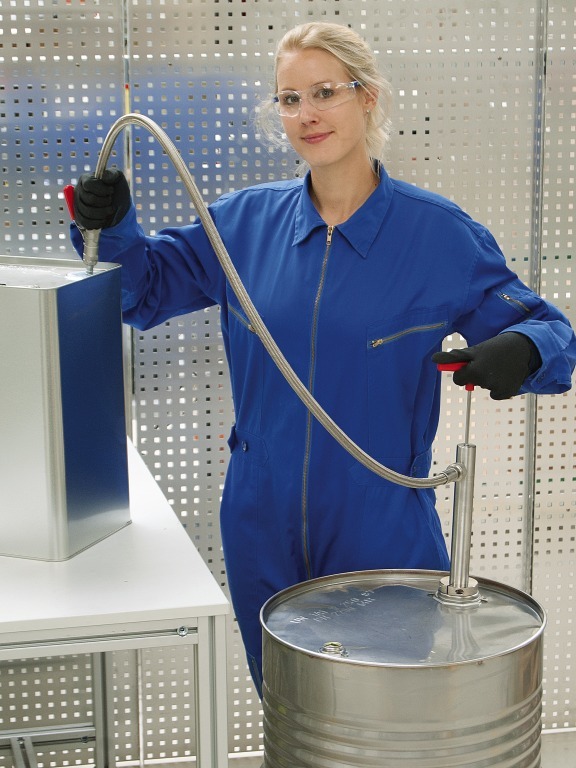

Barrel pump stainless steel with discharge hose and stopcock made of stainless steel and PTFE, can conduct electricity.

The Bürkle barrel pump made of stainless steel AISI 304 (1.4301) is suitable for filling combustible and easily flammable liquids. The barrel pump can conduct electricity and therefore fulfils the requirements for handling flammable liquids in combination with the accessory anti-static set.

The PTFE gaskets ensure long-term and maintenance-free use. Pumping capacity approx. 9–22 l/min (2.38–5.81 gpm), dependent on pump length.

The wide range of accessories makes it possible to adapt the pump to very different requirements.
