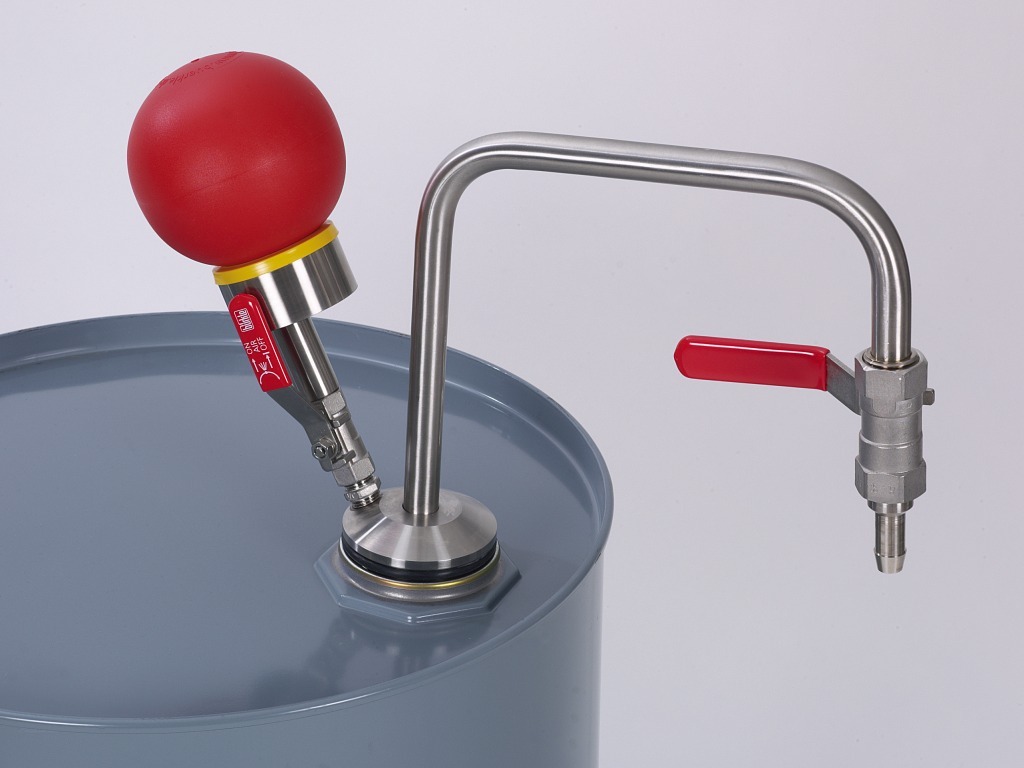

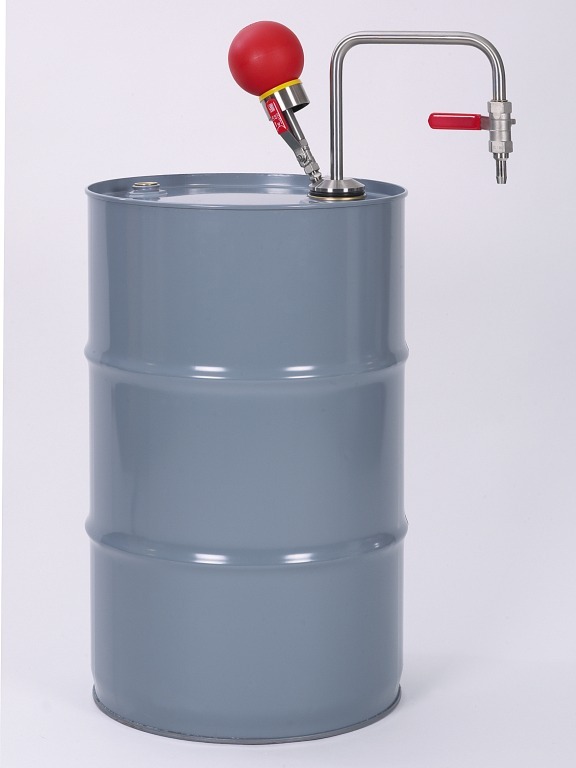

Solvent pump hand operated

1/8

In our catalog you will find this product on page 23

Look up in our flip catalog

Immersion depth

60 (23.62) cm (in.)

Connector thread

2''

Pump capacity approx.

10 (2.64) l/min (gpm)

Enter item number: {config.singleVariant.number}

Where to buy

At a glance

Medium-contacting parts made of stainless steel AISI 304 (1.4301) and PTFE

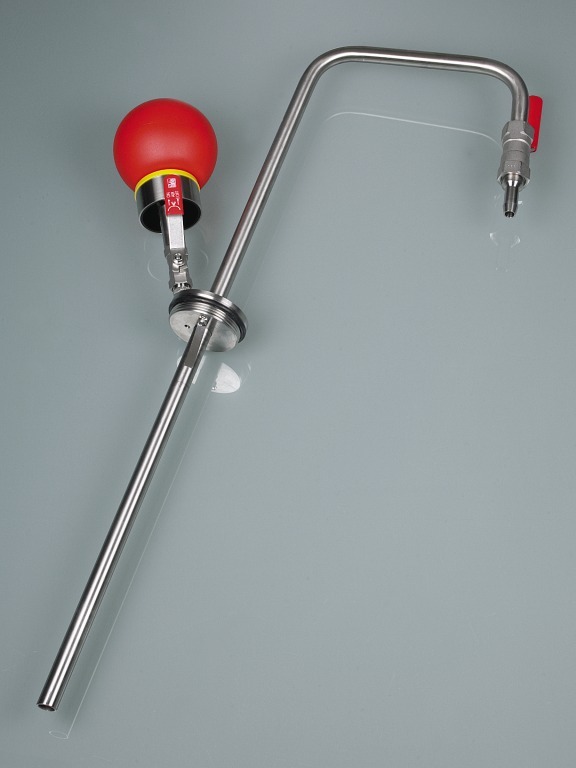

Rigid discharge tube with stopcock made of stainless steel/PTFE
Suitable for containers with R 2" thread
Thread adapter for commercially available containers available as accessory

Please note

When withdrawing flammable liquids, the barrel and pump have to be grounded! Use Anti-static set!

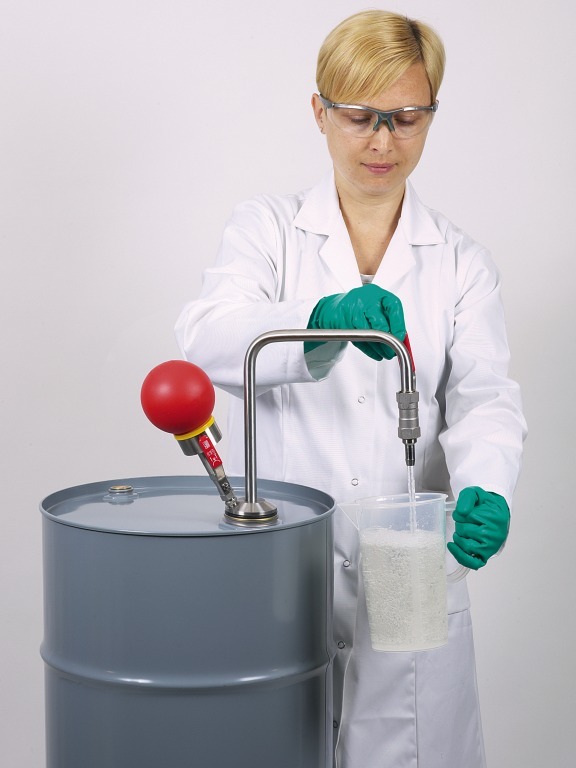

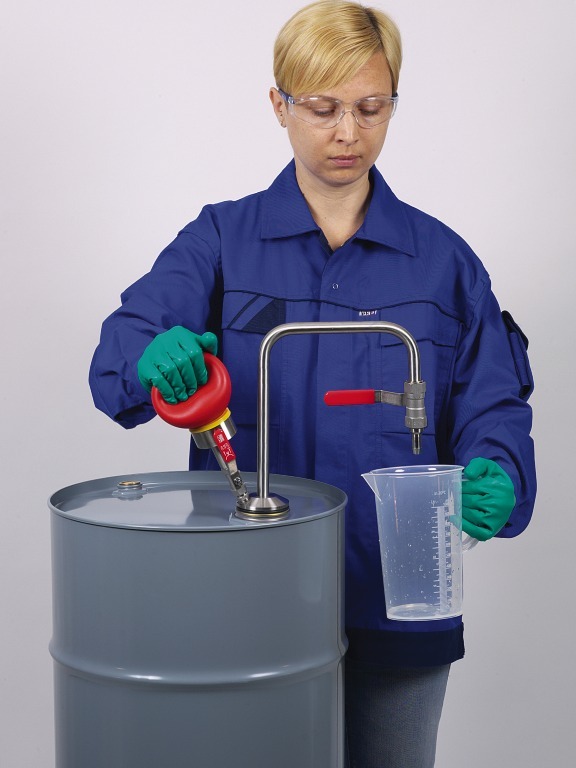

Hand-operated solvent pump for contaminationfree removal of organic solvents and flavoring agents. The hand pump works according to the overpressure principle. An excess pressure is built up in the tank with the pump ball, forcing the liquid out of the container.

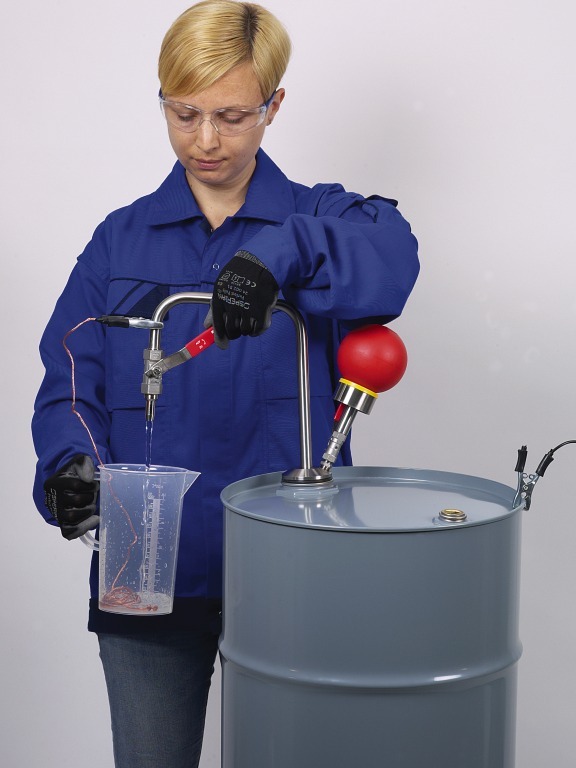

Pouring flammable liquids

All medium-contacting parts are made of stainless steel AISI 304 (1.4301) and PTFE. The Bürkle anti-static set can be used to ground the pump for dispensing flammable liquids so that no electrostatic charge forms.

Gastight version

The pump can be completely closed off with the two ball valves so that no dangerous vapors can escape after dispensing.

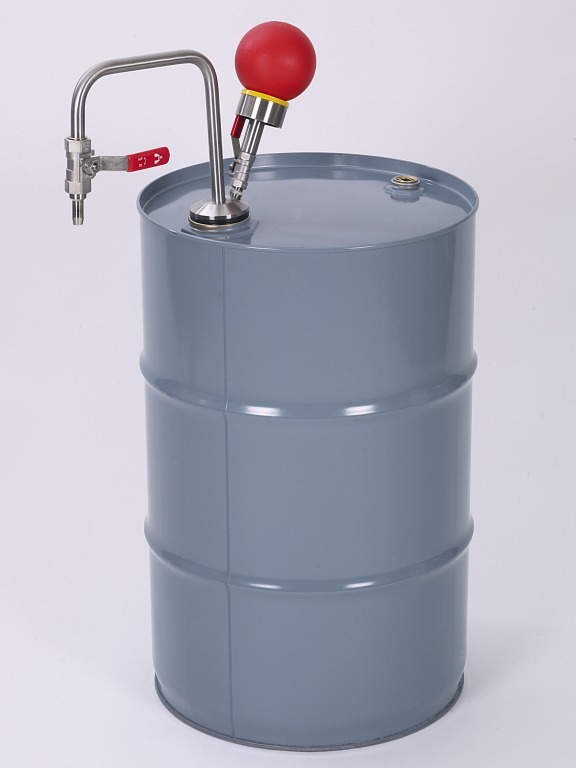

Suitable for different containers

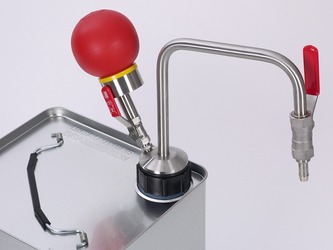

The hand pump is suitable for containers up to 60 liters (15.85 gal.). The solvent pump for tinfoil canisters has a connector thread for pull-out spouts.

Anti-static set

When decanting flammable liquids without the machines and containers...
