Solvent pump foot operated - discharge hose/stopcock

In our catalog you will find this product on page 22

Look up in our flip catalog

Enter item number: {config.singleVariant.number}

At a glance

  • Immersion tube can be steplessly adjusted to the barrel depth
  • For barrels up to 220 liters (58.12 gallons)
  • Suitable for steel barrels with R 2" thread
  • Thread adapter for commercially available containers and air filters for ultra-pure drawing-off available as accessory

Please note

When withdrawing flammable liquids, the barrel and pump have to be grounded! Use Anti-static set!

  • Observe explosion protection guidelines
  • Suitable for use with foodstuffs
  • Material V2A
  • Warranty period 5 years

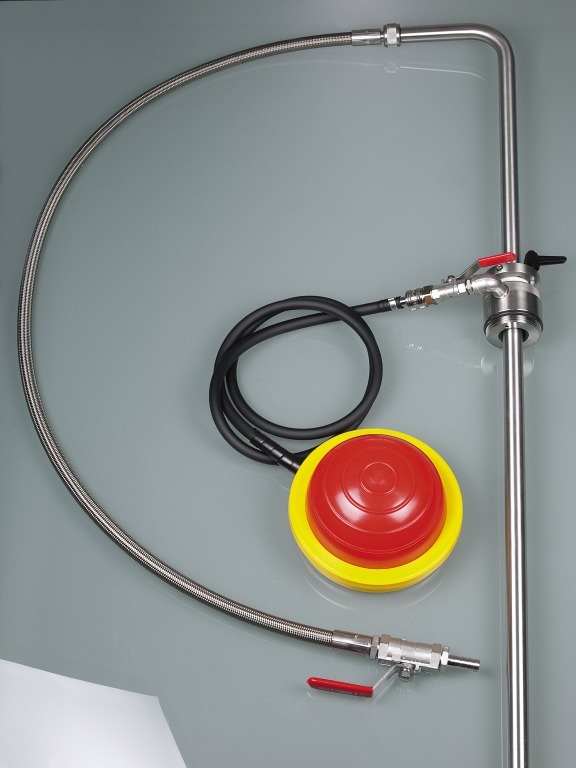

Barrel pump for solvents with discharge hose and stopcock made of stainless steel/PTFE.

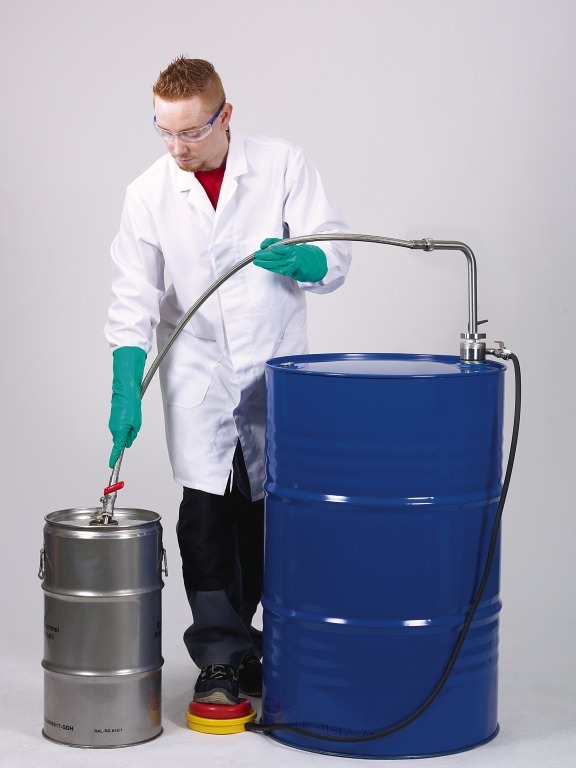

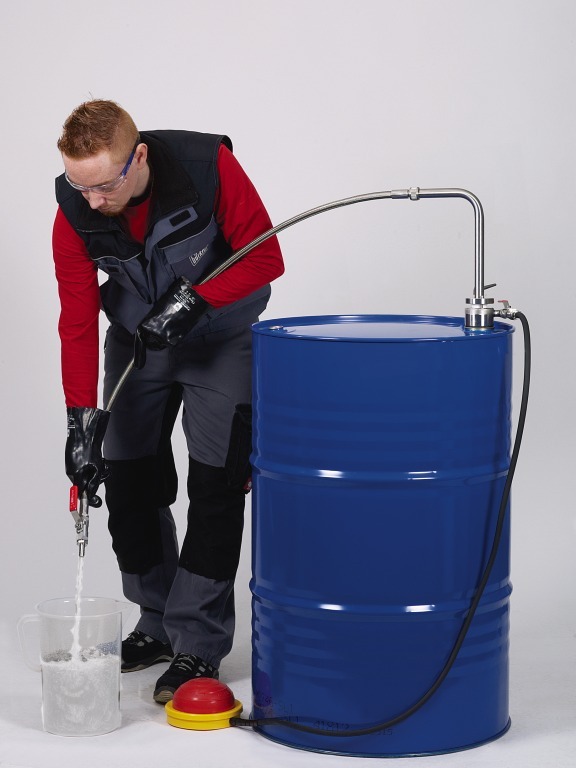

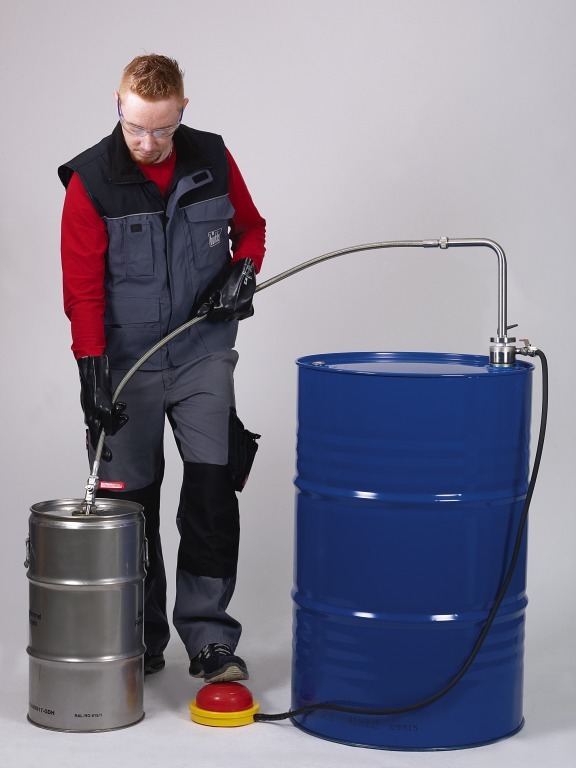

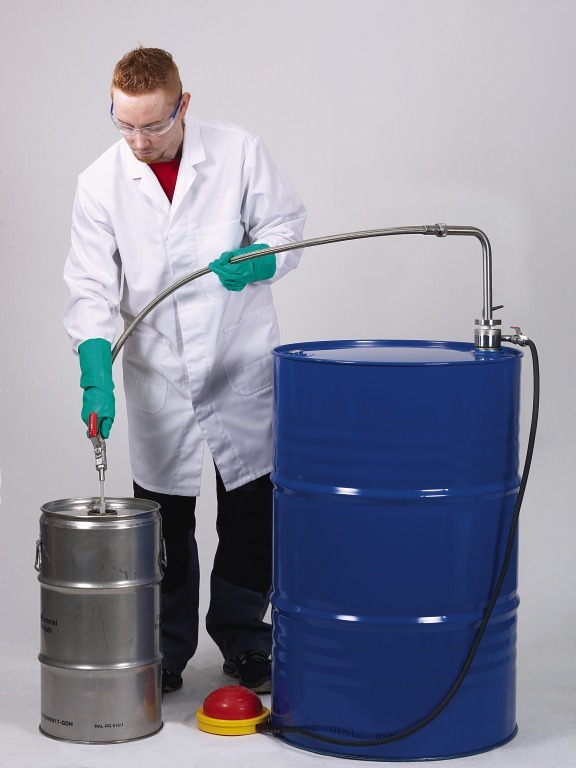

Solvent pump foot operated for filling off high purity liquids such as solvents.

Pouring flammable liquids

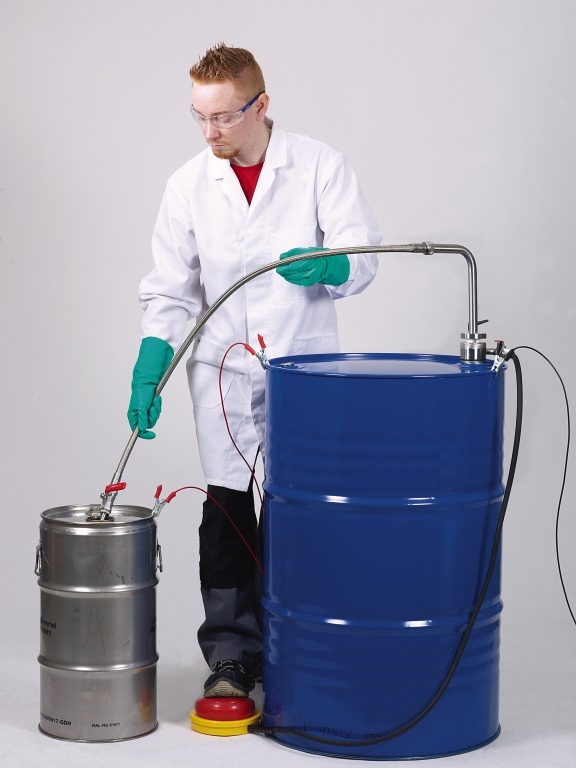

All medium-contacting parts are made of stainless steel AISI 304 (1.4301) and PTFE. The Bürkle anti-static set can be used to ground the pump for dispensing flammable liquids so that no electrostatic charge forms.

Protection against hazardous vapors

Due to the barrel screw joint and the stopcock, the container and the pump can be hermetically sealed. So that no dangerous vapors can escape after dispensing. This protects both health and the environment.

Sturdy and practical design

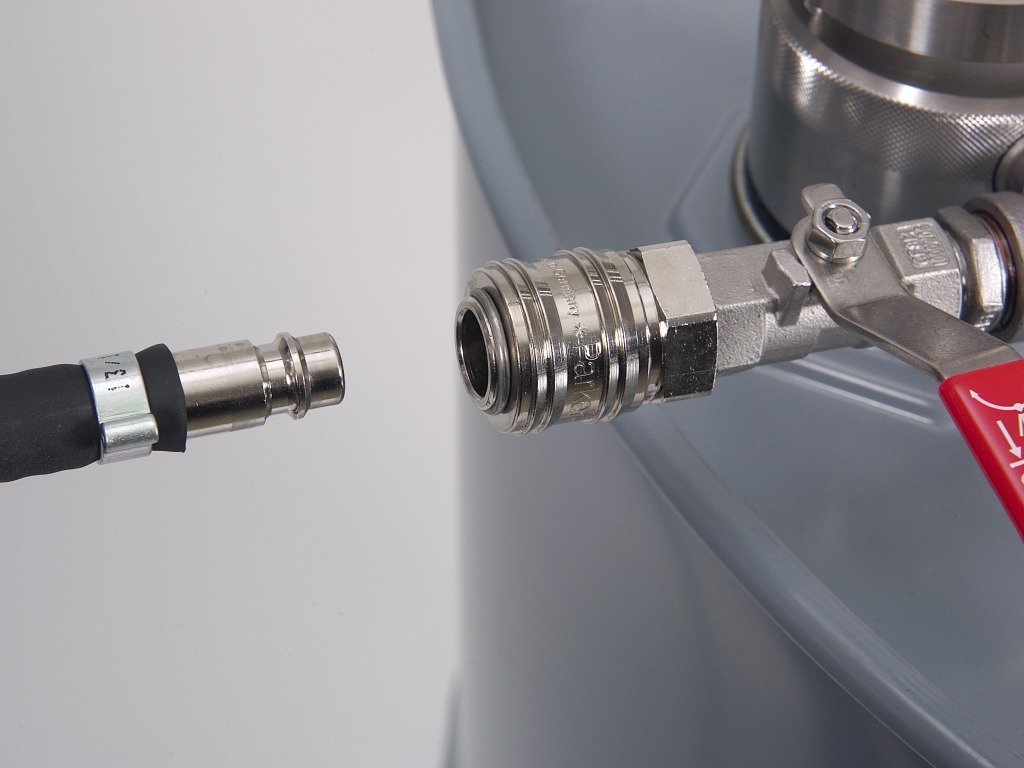

The solid, durable industrial version of the solvent pump ensures a long service life. The pump works according to the overpressure principle. An excess pressure is built up in the tank with the foot actuator, forcing the liquid out of the container. Easy foot operation of the pump with foot actuator leaves both hands free for dispensing. The air hose can be quickly and easily connected and disconnected with the practical clip connection.
