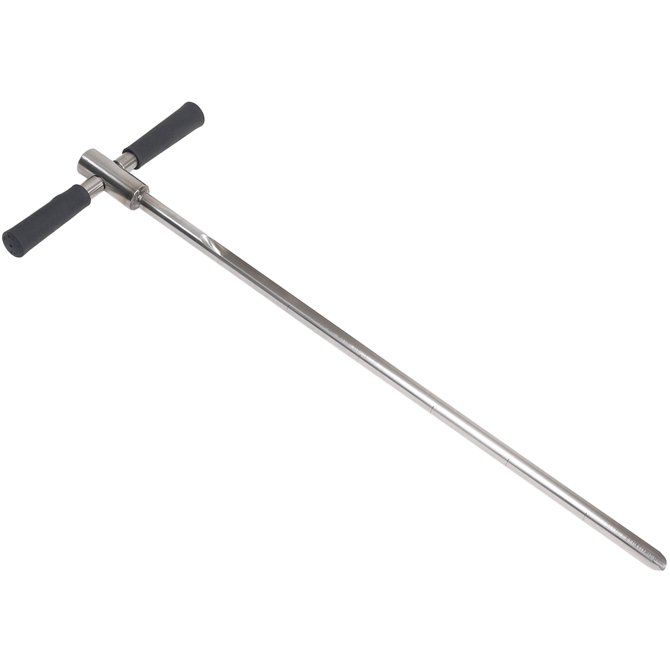

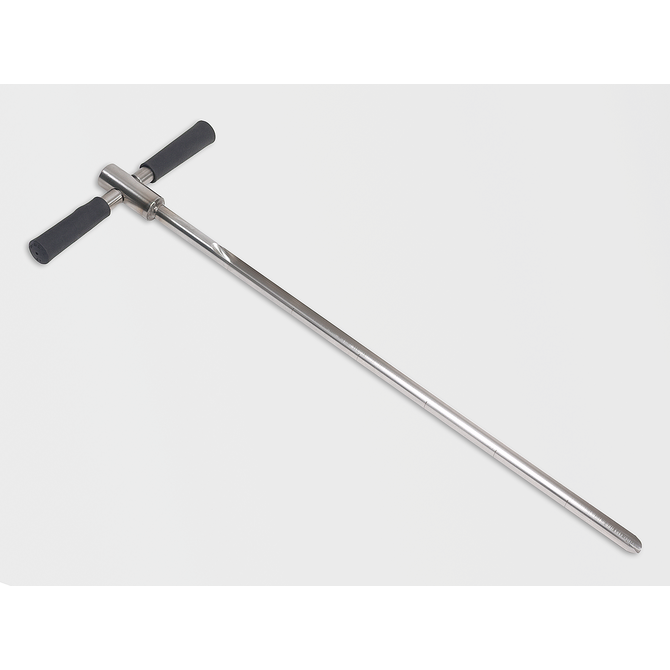

Soil sampler Puerckhauer
Depth graduation 10 cm divisions

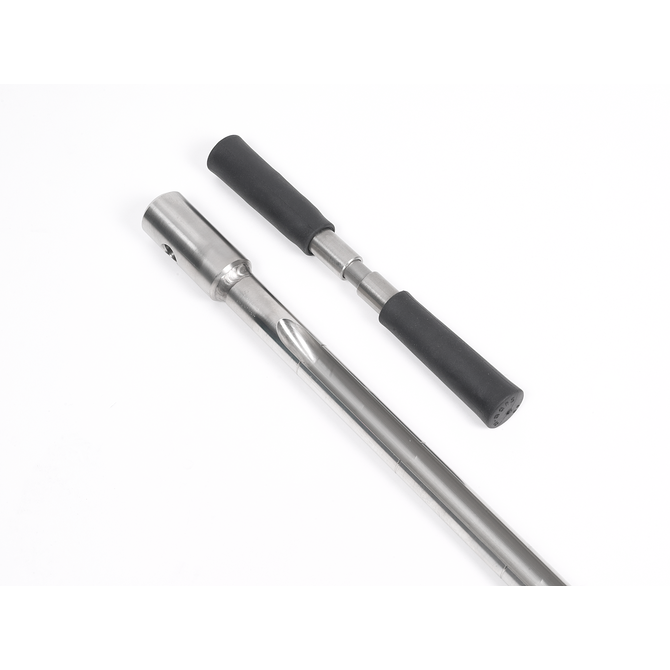

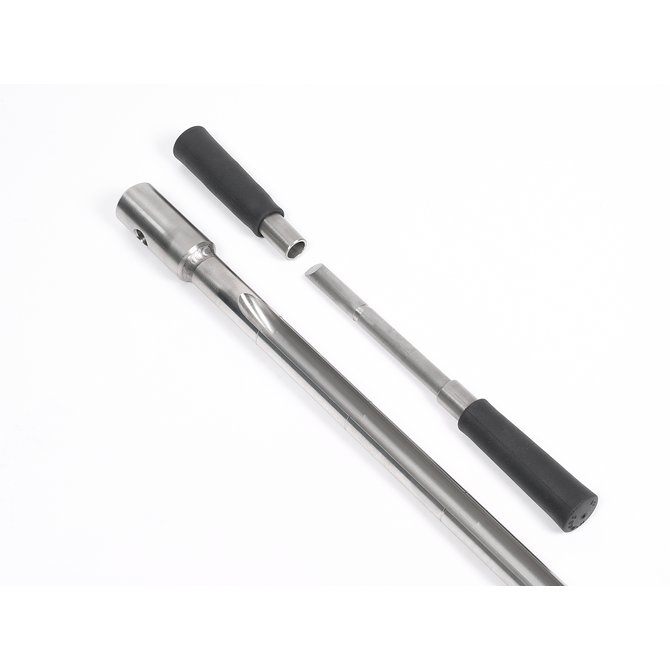

Attachable handle, with non-slip plastic grips

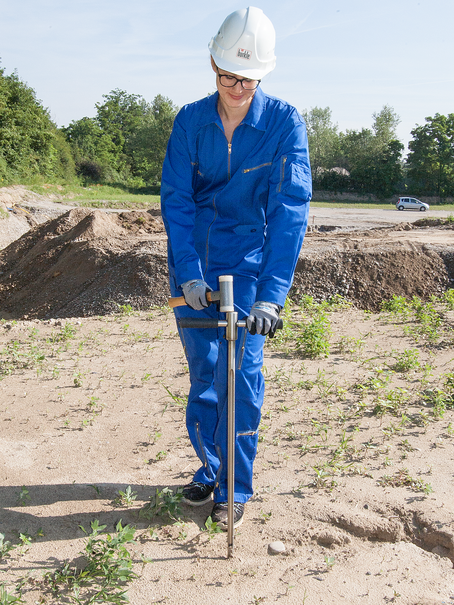

Reinforced impact head
Stainless steel
Detailed information

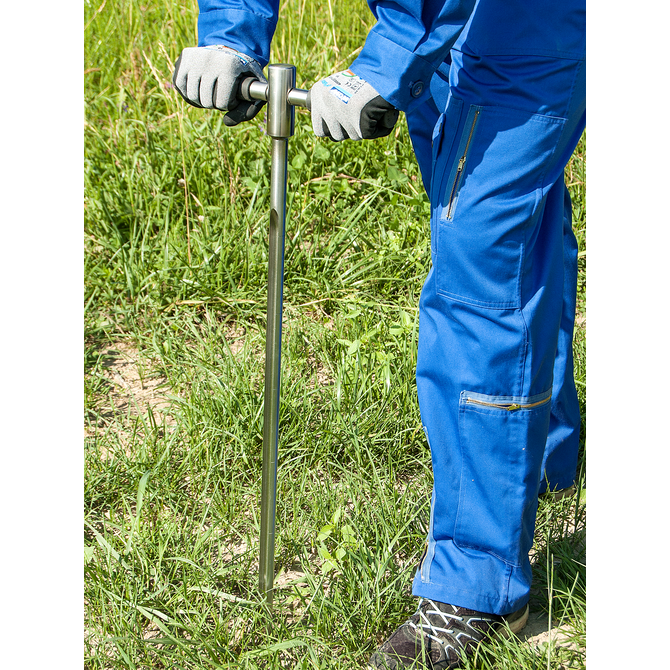

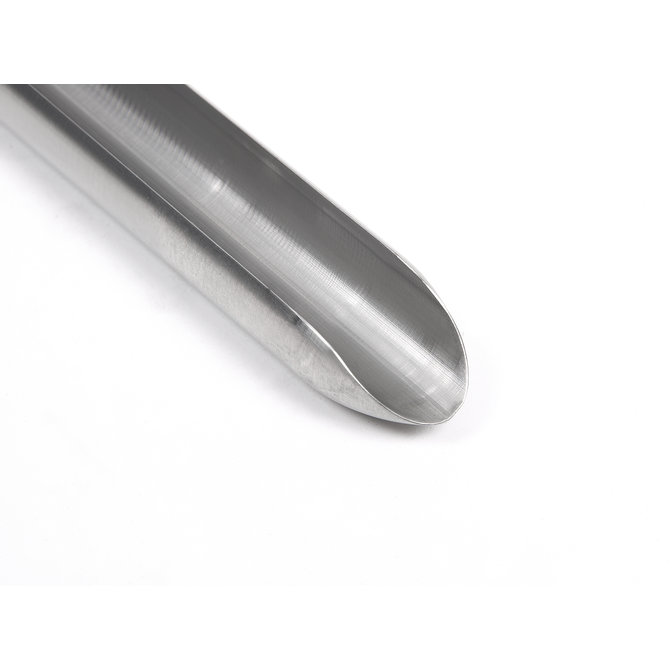

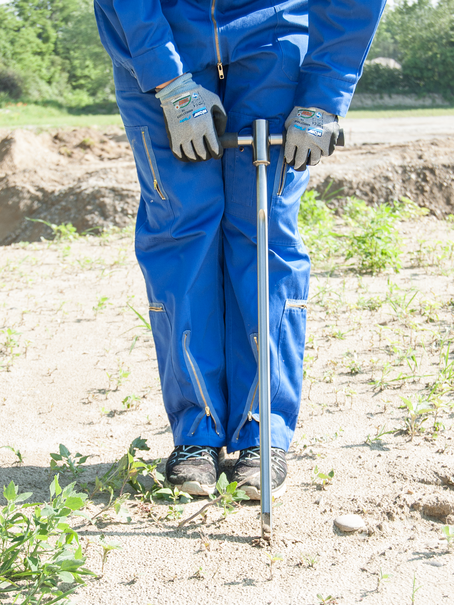

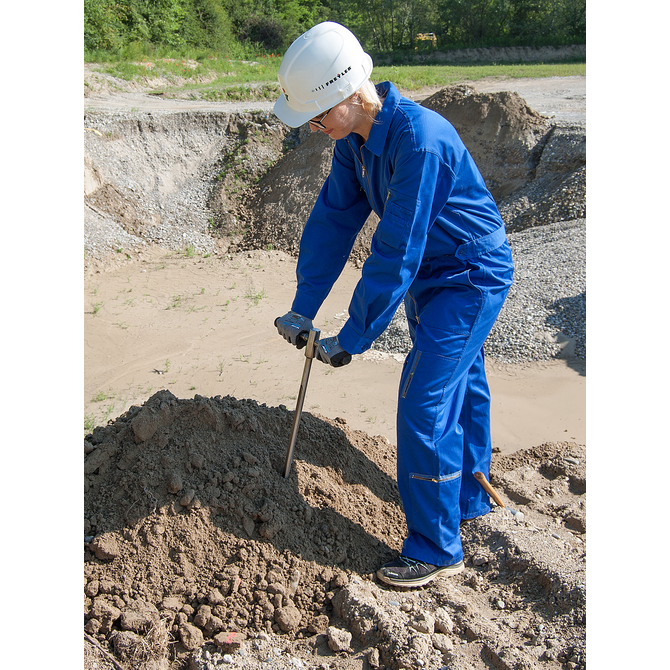

Very robust Puerckhauer-sampler for heavy and stony soils. Model 5350-5018 has a conically-tapered 60 cm (23.62 in.) tip which makes it much easier to extract the driven-in sampler. Ideal for N-min sampling 0–90 cm (0–35.43 in.).

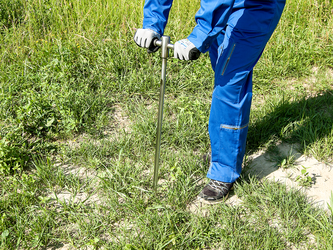

Typical application area of the product
Very robust Puerckhauer-sampler for heavy and stony soils.
- Soil sampler Puerckhauer
Specifications
General material
1.4301 (AISI 304)
Stainless steel (1.4301), AISI 304
Scaling
- Division:
- 10 cm (3.937 in)
- Scale:
- embossed
Lance dimensions
- Pipe Ø:
- 13 mm (0.5118 in)
- Total length:
- 810 mm (31.8898 in)
- Outer Ø:
- 20 mm (0.7874 in)

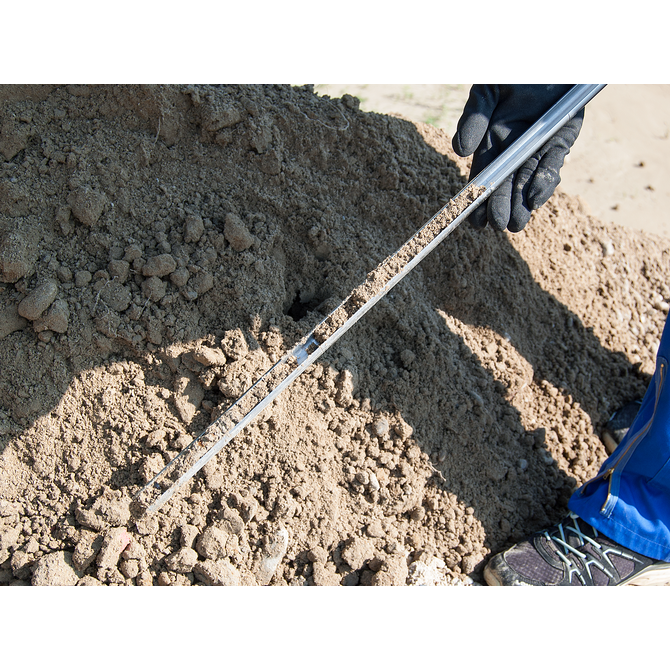

Collecting chamber dimensions
- Chamber length:
- 600 mm (23.622 in)
Sampling
- Sampling type:
- All-layer sample/cross-section sample
Sampler
- Drive type:
- manually operated
