Name: Pump-it® canister pump
SKU: 5201-1000
Price: 143.6 EUR

View in the interactive catalog

To all specifications

Packaging unit

Piece

Where to buy

Please note

Not suitable for crystallizing substances!

Pay attention to the chemical resistance of the materials! See also "List of chemical resistance"

Detailed information

The Pump-it^® canister pump is ideal for frequently transferring small quantities of liquid from canisters and similar containers up to approximately 60 liters (15.85 gal.). Safe filling and emptying of canisters, carboys and small drums is also quick and easy.
The acid-proof canister pump seals the container airtight, allowing the pump to remain on the container and be quickly available for filling at any time.
Repeated actuation of the hand piston creates excess pressure in the container. By opening the stopcock, the fluid is discharged from the pump. When the stopcock is released, the pulsation-free jet of liquid stops immediately, without run-on. This allows for precise dosing. By reopening the stopcock, filling can continue immediately without a renewed pressure build-up.
The delivery tube is continuously adjustable from 550 to 1000 mm (21.65 to 39.37 in.) for complete emptying of the container; for smaller containers the tube can be shortened.
The lightweight and compact canister pump is suitable for weak acids, alkalis and petrochemicals.

Typical application area of the product

The Pump-it^® canister pump is used wherever small quantities of acids, alkalis or petrochemical liquids have to be filled or decanted every day, e.g. in laboratories, pharmacies, in the chemical sector or in industry.

How to use the product

Insert the telescoping delivery tube into the canister pump and fully extend.
Screw the canister pump onto the container thread (Ø 64 mm (2.52 in.)), if necessary use a suitable thread adapter (see accessories).
Actuate the hand piston and build up pressure.
To fill, open the drain valve (press lever down) and fill liquid.
Release the lever to stop filling.

Material

5201-1000_zer12_v02_en_ex.pdf

5201-1000_pump-it_gebrauchsanleitung.pdf

Pump-it® canister pump

Specifications

General material

PP
Polypropylene

General material

PE
Polyethylene

Further materials

FKM, FPM
Fluorine rubber

Connection

Connection type:: Thread
Thread:: S 64x5
Version:: Internal thread

Throughput

Conveying capacity:: 8 l/min

Limit values

Viscosity up to:: 500

Ø

Immersion tube Ø:: 19 mm (0.75 in)

Coloring

Color:: red

Pump outlet

Outer outlet Ø:: 19 mm (0.75 in)
Length of discharge tube:: 162 mm (6.38 in)
Outlet type:: Discharge tube

Delivery tube

Immersion depth max.:: 100 cm
Immersion depth from:: 54 cm
Immersion depth up to:: 100 cm

Filling container

Adjusting the immersion depth:: Immersion tube can be shortened as required,Immersion depth infinitely adjustable
For containers up to:: approx. 60 liters

How to fill

Drive type:: manually operated
Pump type:: Overpressure pump

To the list of chemical resistance

The adapter set for Pump-it^® canister pumps includes adapters for all common container threads.

Complementary products

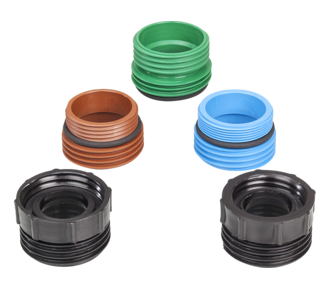

Adapter set Pump-it®

Thread adapter set for Pump-it® canister pump consisting of:

Adapter PP outer-outer, S 70x6 (Mauser) - S 64x5, green
Adapter PP outer-outer, S 56x4 (Tri-Sure) - S 64x5, brown
Adapter PP outer/outer, G 2" - S 64x5, blue
Adapter PP outer-inner, S 64x5 - S 60x6 (DIN60), black
Adapter PP outer-inner, S 64x5 - S 55x5 (DIN51), black

Thread adapters PP

We offer a broad range of thread adapters. This facilitates the secure connection of many of our pumps and discharge cocks to a variety of containers. You will always find the correct connection thanks to the combination of different adapters. Do you have any questions about choosing the right thread adapter? Please call us. We are glad to offer assistance.
