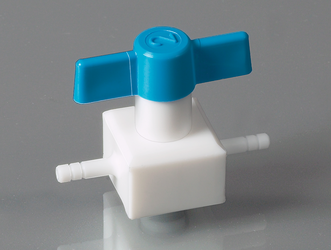

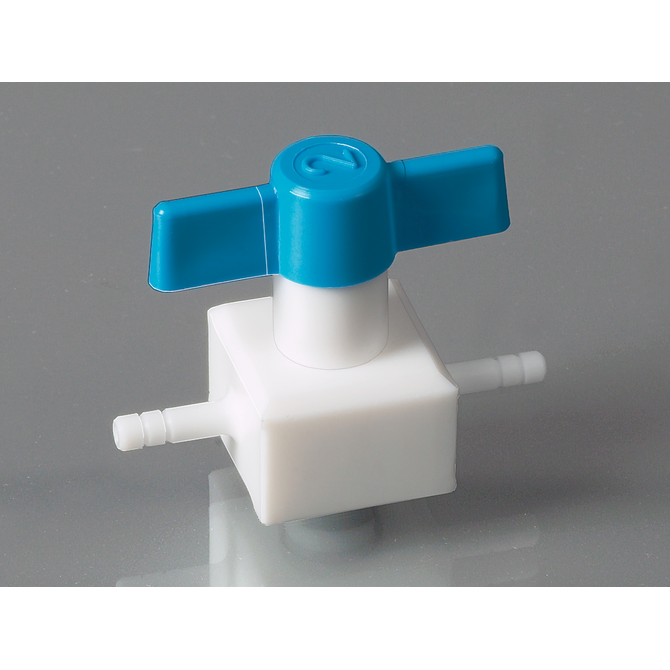

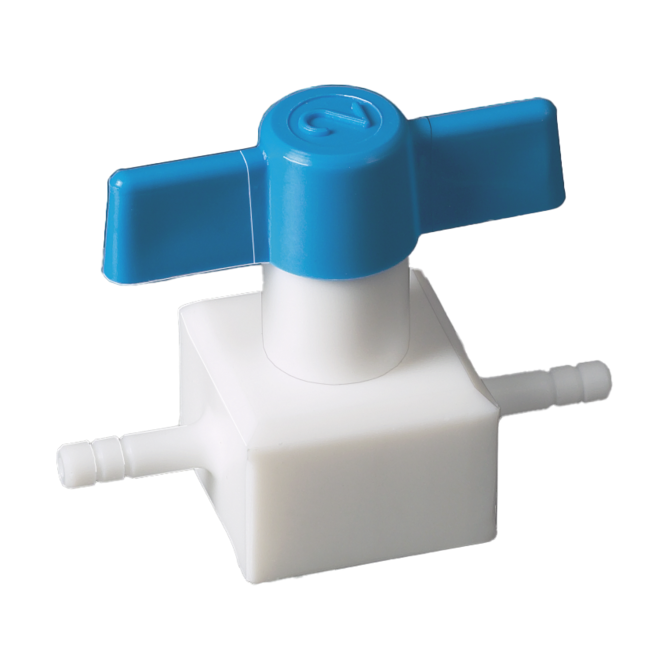

PTFE valve, two-way
Two-way valve for reliable flow control
- Maximum chemical resistance, resistant to aggressive media
- Ideal for high-purity processes thanks to smooth, non-adhesive surface and sterilizability
- Clear media control with open/close function for clear flow control
Detailed information
The two-way valve is the ideal solution for reliably regulating, stopping or releasing a medium. Thanks to its simple open/close function, it regulates the flow in hose systems extremely precisely and efficiently.
The compact PTFE valve, with two or three ways, is the ideal solution for demanding applications in laboratories, technology and industry. Made of high-purity PTFE (polytetrafluoroethylene), it offers excellent chemical resistance, even to aggressive acids, alkalis and solvents. The PP handle ensures comfortable handling and the excellent sliding properties make the valve smooth and easy to operate. Thanks to its vacuum and pressure resistance (up to 1 bar and 5 mmHg respectively), the valve can be used for a wide range of applications - from standardized laboratory processes to high-purity applications in semiconductor production or the pharmaceutical industry. The compact design saves space during installation, while the flexible connection option ensures easy integration into existing systems.
Typical application area of the product
The two- or three-way PTFE valve is used in chemical plants, dosing systems and analysis devices in which aggressive media must be safely and reliably guided. It also impresses in clean rooms, in semiconductor production or in the pharmaceutical industry thanks to its high material purity and low particle content. It is perfect for precise dosing, media switching or vacuum-based processes.
- PTFE valve, two-way
Specifications
General material
PTFE
Polytetrafluoroethylene
Further materials
PP
Polypropylene
Coloring
- Color:
- blau/weiss
Nominal Ø
- Nominal diameter:
- 2 mm (0.0787 in)
Grommet suitable for
- For hose Ø inside from:
- 4 mm (0.1575 in)
- For hose Ø inside up to:
- 4.5 mm (0.1772 in)
Connector dimensions
- Total length:
- 59 mm (2.3228 in)
- Width:
- 27 mm (1.063 in)
- Total height:
- 51 mm (2.0079 in)
- Spout Ø outside:
- 4.5 mm (0.1772 in)
Pressure resistant
- Pressure max.:
- 1 bar (14.5038 psi)
Operating temperature
- Temperature max.:
- 260 °C (500 °F)
- Temperature min.:
- -200 °C (-328 °F)
Connector
- Shape:
- I
- Grommet:
- cylindrical/straight
