ProfiSampler Aluminum
In our catalog you will find this product on page 79
Look up in our flip catalogEnter item number: {config.singleVariant.number}
At a glance
- Three feet guarantee that the ProfiSampler stands safely

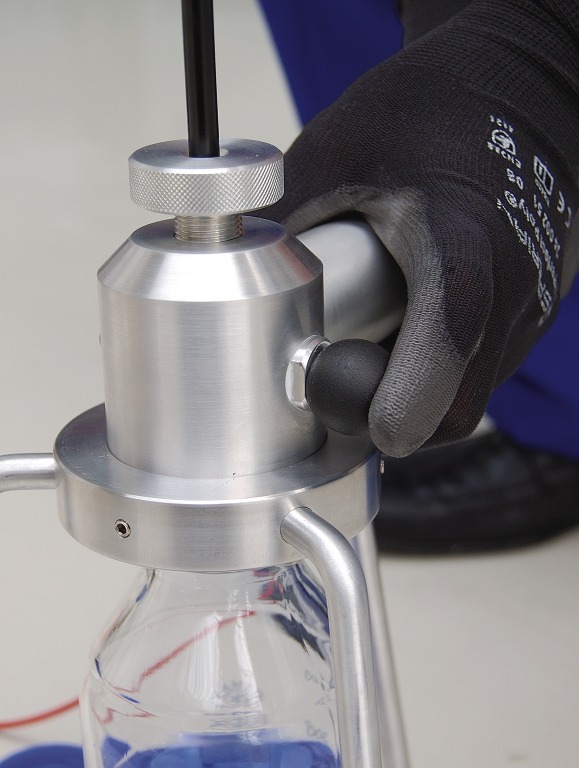

- Fill level control, automatic return flow and overfill protection through built-in venting valve
- Available with suction hose in PE, PA and PTFE wherever the highest degree of purity is required
- Can be supplied with straight suction tubes for simpler sampling, incl. transport case for tidy transport and disposal of the suction tubes
- Suction volume 200 ml (6.76 oz.), suction pressure 0.5 bar (7.25 psi)
- Suction height from liquid surface 5 m (16.40 ft.) WS
- Sample bottles available in different materials and sizes
Please note
Attention! Make sure to pay attention to the “List of Chemical Resistance“!
ProfiSampler aluminum for solvents and flammable liquids in Explosion Categories IIA, IIB and IIC. With bottle thread GL 45 (suitable for Schott glass bottles 100 ml (3.38 oz.) to 1000 ml (33.81 oz.)).
When taking samples of flammable liquids, the device must be grounded. For this, grounding cable and, possibly in addition, anti-static set should be used, see accessories.

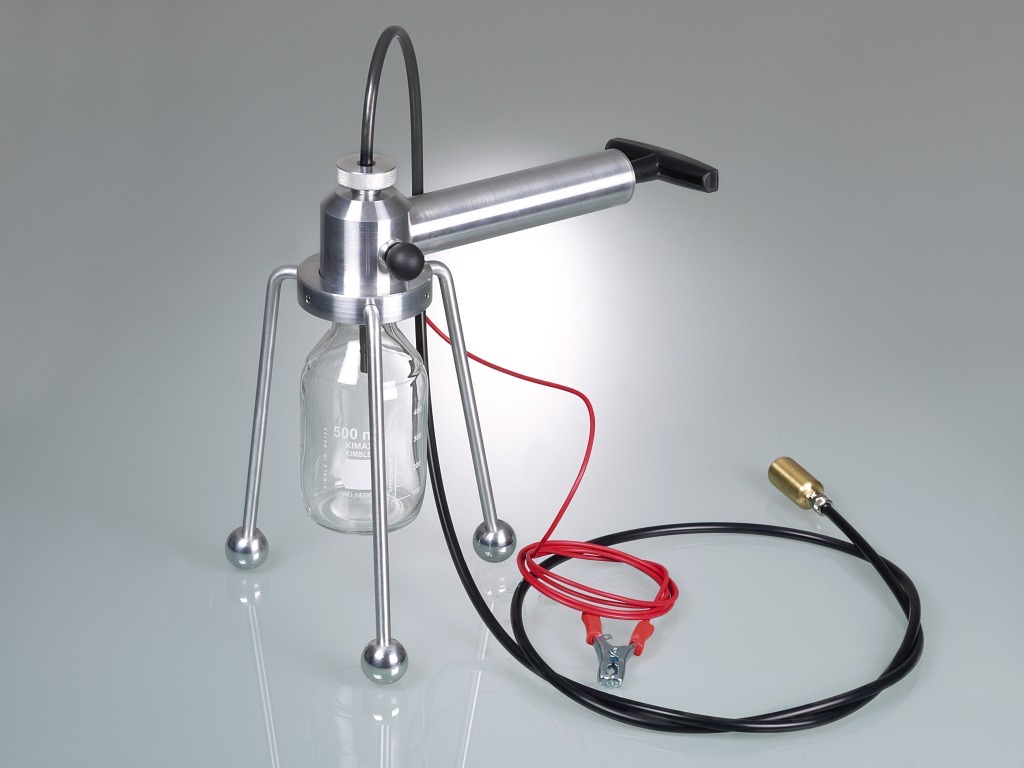

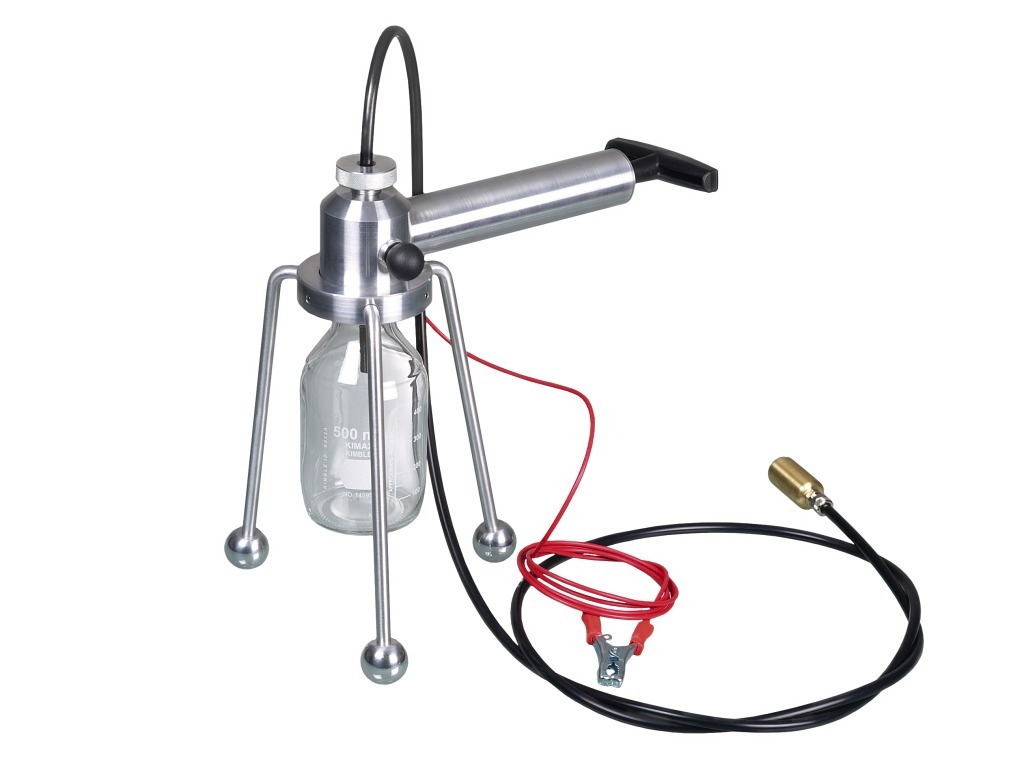

ProfiSampler aluminum, consisting of: Vacuum pump made of aluminum, with feet, venting valve and bottle thread GL 45 with glass bottle 500 ml (16.91 oz.), 5 suction tubes PA black (220 cm (86.61 in.) long, electrically conductive), hose cutter, brass hose weight, 20 seal-it bottle seals, grounding cable.
While the MiniSampler is designed for laboratory use, the ProfiSampler has been specially developed for rough industrial use.
Applications

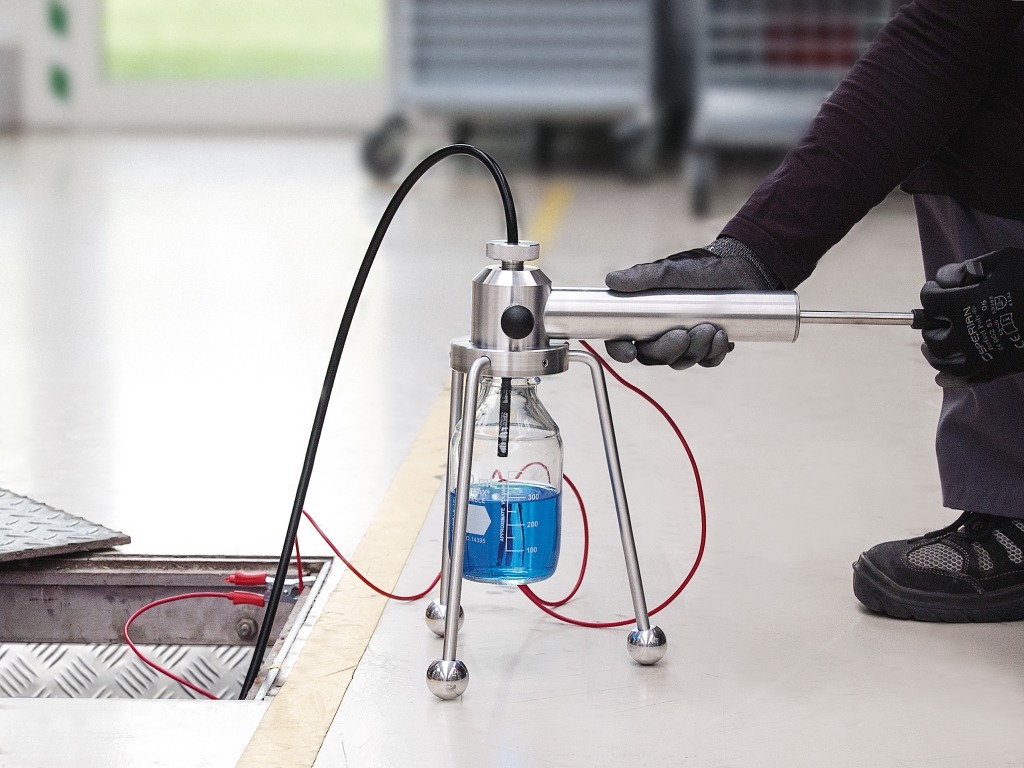

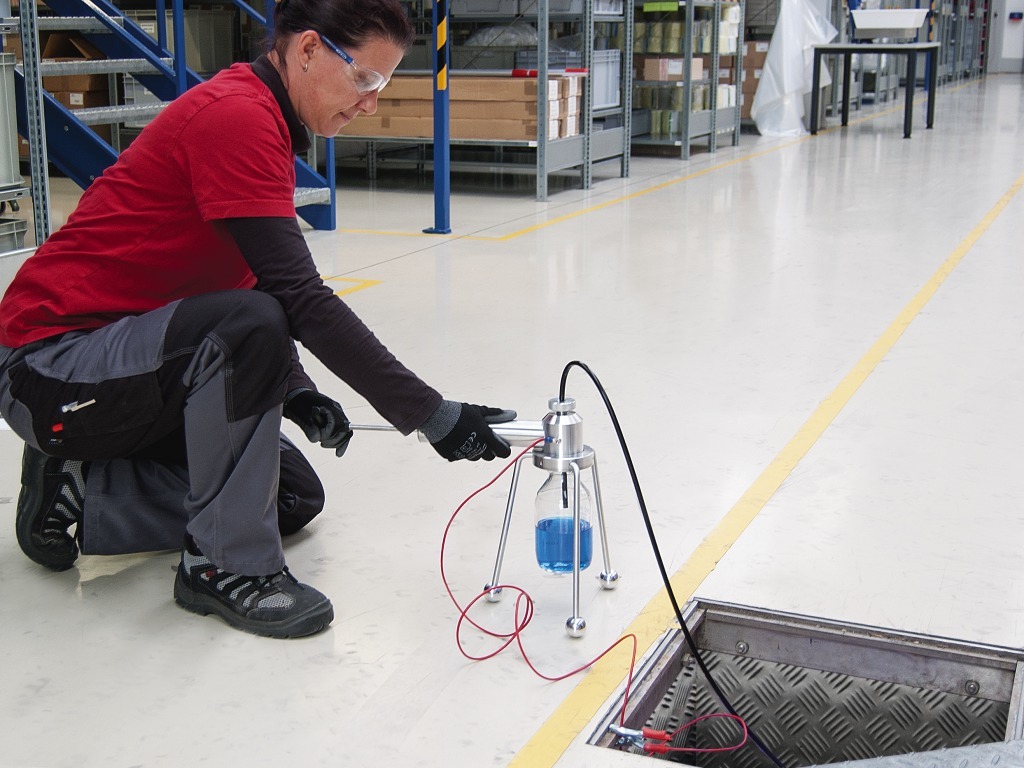

Sampling liquids in barrels, tanks, trucks, railway goods cars, ships, water courses, ground water, etc.
Vacuum samplers have the advantage that the sample liquid only comes into contact with the suction hose and the original sample bottle. The possibility of cross-contamination is greatly reduced. Immediately after taking the sample, the bottles are sealed. The disposable suction hose can quickly be replaced. This guarantees that the samples are always authentic. If necessary, a new hose can be used for every single sample.
Due to its small diameter (8 mm (0.31 in.)), the hose can reach narrow, seemingly inaccessible sampling areas.
The ProfiSampler can be extended with useful accessories developed in practice.
