OTAL® disposable hand pump
Hand pump with interchangeable disposable delivery tubes
- Saves time and money by eliminating the need for cleaning
- Flexible in use and individually adaptable
- For all common containers with opening Ø 30-70 mm (1.18 - 2.76 in.)
- Particularly compact and space-saving hand pump
- Ideal for containers from approx. 10 - 60 liters (2.68 - 15.85 gal.)
Detailed information
OTAL® hand pump with disposable delivery tubes made of HDPE, for single use.
With OTAL® pumps, the medium to be filled only comes into contact with the delivery tube.
The disposable delivery tube can be replaced quickly and easily after use.
With commercially available reusable pumps, there is a risk that the liquid to be filled will be contaminated by the pump - especially if the pump is used for different media or containers and no professional cleaning is carried out before replacement.
The space-saving container pump is specially designed for single use, so time-consuming and costly cleaning is completely unnecessary and contamination is ruled out.
The delivery pipe of the filling pump is made of one piece and can be easily shortened to the respective container height using the cutter provided. This offers maximum flexibility and guarantees good residual emptying of the container. The outlet of the delivery tube can also be shortened if required.
Filling with OTAL® pumps works with airtight containers (drums, canisters, barrels or similar) with an opening Ø between 30 and 70 mm (1.18 and 2.76 in.). Due to the PVC universal plug, no thread connection and thus no determination of the container thread is necessary. Containers up to a height of 90 cm (35.43 in.) are emptied completely.
The disposable pump is ideal when special cleanliness is required, cleaning is difficult or not possible at all.
Typical application area of the product
The OTAL® disposable hand pump is suitable for filling thin-bodied to low-viscosity liquids up to 500 mPas, e.g. acids, alkalis, cleaning agents, liquids in the food sector.
The pump is ideal for airtight containers up to approx. 60 liters (15.85 gal.).
How to use the product
- Push the delivery tube into the universal plug and attach the pump ball.
- Cut the delivery tube at a slight angle at the height of the container.
- Use the pump ball to build pressure and fill.
- To replace the delivery tube, cut the tube just below the plug.
- Dispose of the lower end of the tube directly, pulling the upper end out of the universal plug.
- Insert new tube.
- 10 x delivery tube, single-use
- Universal plug, three-part
- Pump ball
- Cutter
Specifications
General material
PE-HD
High-density polyethylene (HDPE)
Further materials
PVC
Polyvinyl chloride
Connection
- For openings from:
- 30 mm (1.18 in)
- For openings up to:
- 70 mm (2.76 in)
- Connection type:
- Variable universal stopper
Throughput
- Conveying capacity:
- 14 l/min
Limit values
- Viscosity up to:
- 500
Ø
- Immersion depth max.:
- 90 cm
- Pipe Ø:
- 12 mm (0.47 in)
- Immersion tube Ø:
- 12 mm (0.47 in)
Coloring
- Color:
- red/yellow
Pump outlet
- Outer outlet Ø:
- 12 mm (0.47 in)
- Length of discharge tube:
- 200 mm (7.87 in)
- Outlet type:
- Discharge tube
Delivery tube
- Immersion depth max.:
- 90 cm
- Immersion depth from:
- 10 cm
- Immersion depth up to:
- 90 cm
Filling container
- For containers up to:
- approx. 60 liters
How to fill
- Drive type:
- manually operated
You need

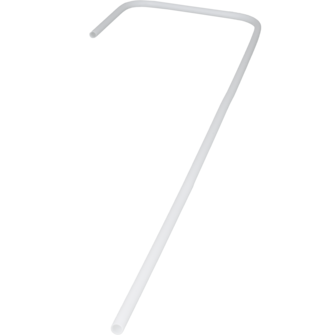

The disposable delivery tubes made of PE can be reordered in packs of 10.
The OTAL® disposable pump is also available as a foot pump for larger delivery rates.
