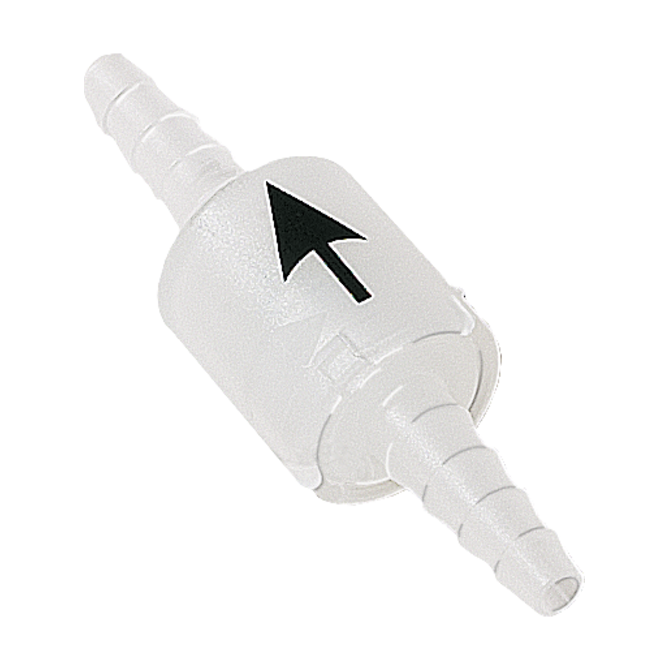

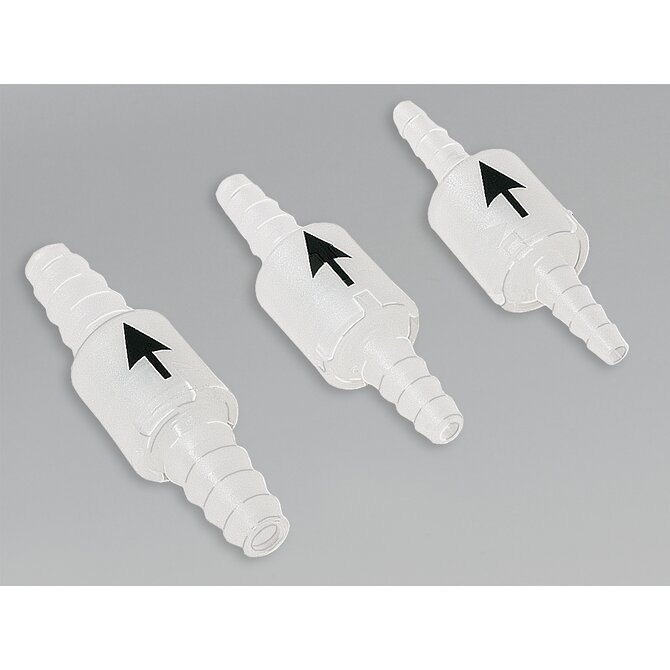

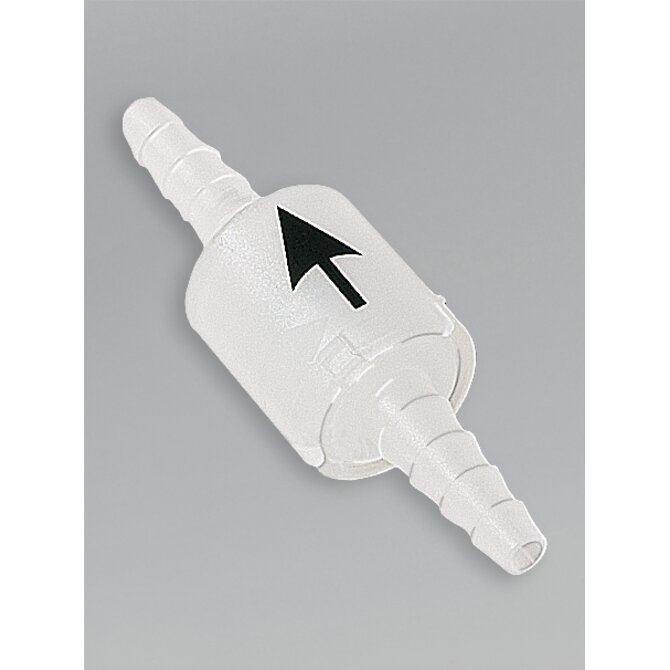

Non-return valves with conical inlet/outlet, black arrow
- Resistant to compression max. 4 bar (58.01 psi)
- Operating temperature +0 °C (+32 °F) to +40 °C (+104 °F)
- With PP valve ball
Detailed information
Non-return valves with embossed directional arrow printed in black.
Retaining valve with embossed directional arrow or printed in black. With conical nozzles. Various uses.
Typical application area of the product
Bürkle offers a large portfolio of different hose connectors that are used to extend, connect, branch, join and repair hoses, etc.
The ranges of application are diverse and thus the requirements for shape, size and material properties are broadly based.
- Non-return valves with conical inlet/outlet, black arrow
Specifications
General material
PP
Polypropylene
Grommet suitable for
- For hose Ø inside from:
- 6 mm (0.2362 in)
- For hose Ø inside up to:
- 8 mm (0.315 in)
Connector dimensions
- Total length:
- 72 mm (2.8346 in)
- Width:
- 21 mm (0.8268 in)
- Spout Ø outside from:
- 5 mm (0.1969 in)
- Spout Ø outside to:
- 9 mm (0.3543 in)
Imprint connector
- Directional arrow:
- black printed/embossed
Pressure resistant
- Pressure max.:
- 4 bar (58.0151 psi)
Operating temperature
- Temperature max.:
- 40 °C (104 °F)
Connector
- Shape:
- I
- Grommet:
- conical/reducing
- Function:
- for connection incl. non-return valve
On request also with ball made of stainless steel or PTFE.
Similar products

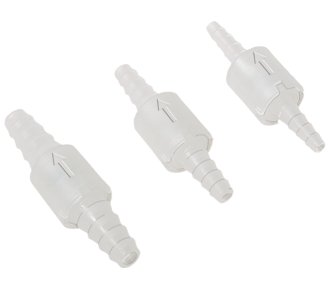

Non-return valves with coNon-return valves with conical inlet/outlet, embossed directional arrownical inlet/outlet
