MiniSampler PTFE
In our catalog you will find this product on page 77
Look up in our flip catalogEnter item number: {config.singleVariant.number}
At a glance
- Also suitable for viscous oils
- Complete in a handy transport case
Please note
Not for aggressive acids. Vapors could destroy pump.
Ideal when maximum purity is needed.

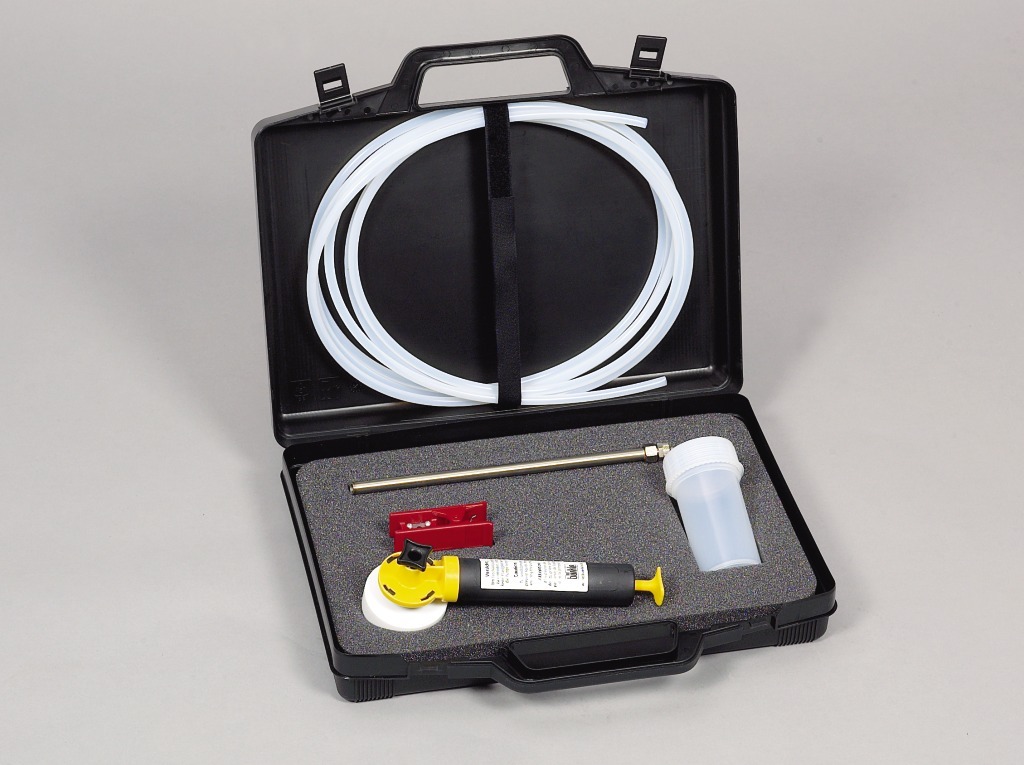

MiniSampler PTFE complete with accessories in its transport case, contents: Vacuum pump, 1 sample bottle PFA 180 ml (6.09 oz.), 5 m (16.40 ft.) PTFE suction hose 6 x 8 mm (0.24 x 0.31 in.), 1 hose cutter, 1 stainless steel hose weight made of AISI 304 (1.4301)/brass nickel-plated, 20 seal-it bottle seals.

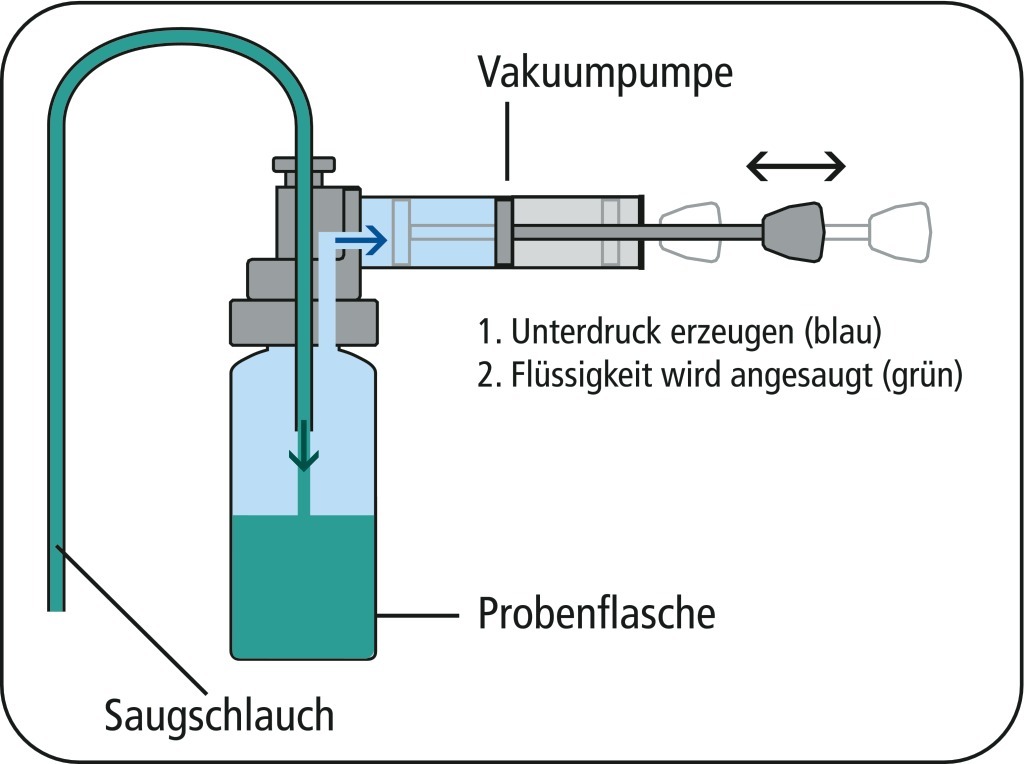

With the vacuum sampler MiniSampler, the sample liquid only comes into contact with the suction hose and the original sample bottle. The possibility of cross-contamination is greatly reduced. Immediately after taking the sample, the bottles are sealed. The disposable suction hose can quickly be replaced. This guarantees that the samples are never contaminated. If necessary, a new hose can be used for every single sample.
Due to its small diameter (8 mm (0.31 in.)), the hose can reach narrow, seemingly inaccessible sampling areas.
Two models:
PE MiniSampler for general sampling, max. suction height 5 m* (16.40 ft.*)
PTFE MiniSampler for ultra-pure sampling, max. suction height 5 m* (16.40 ft.*)
* depending on the medium

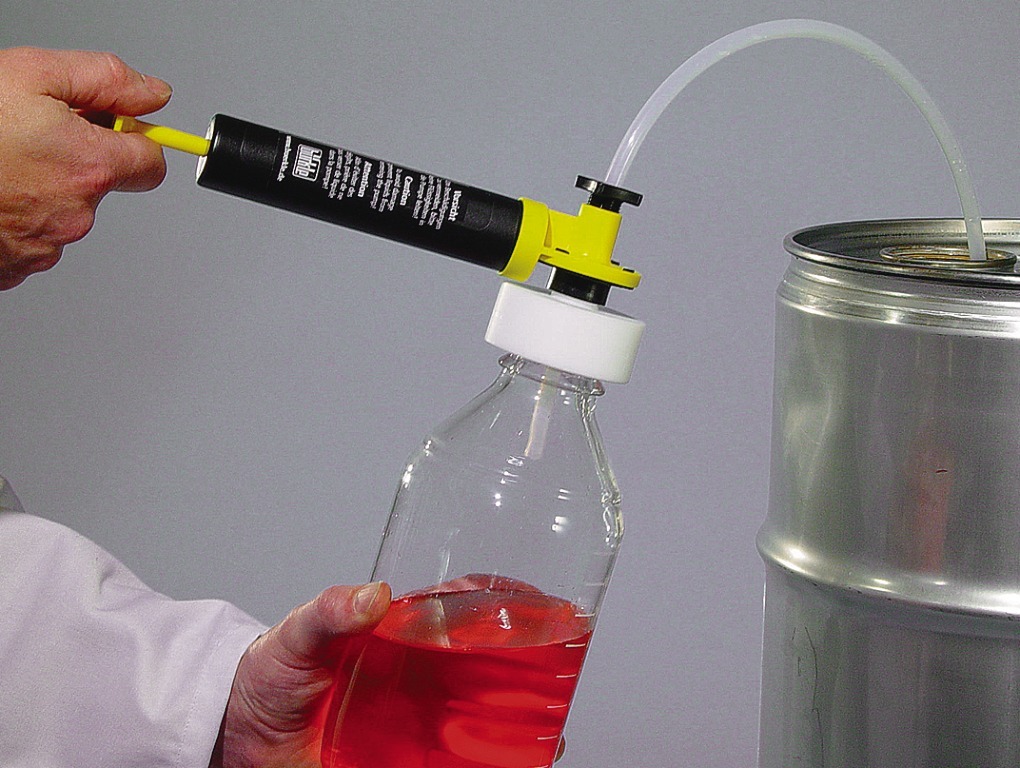

Use
- Insert the hose and the bottle into the pump.
- Insert hose end to desired sample depth.
- Move the pump piston back and forth and collect the sample. The liquid flows directly into the bottle.
- Take off the filled bottle, close and label it.
