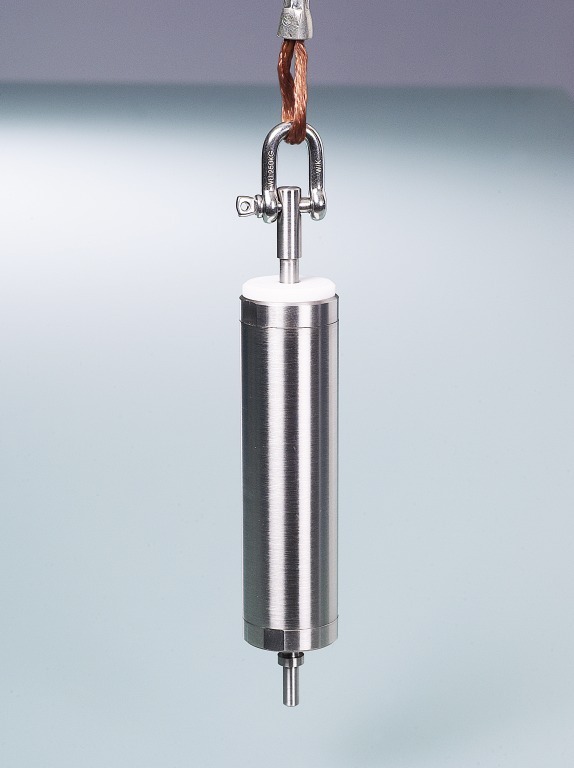

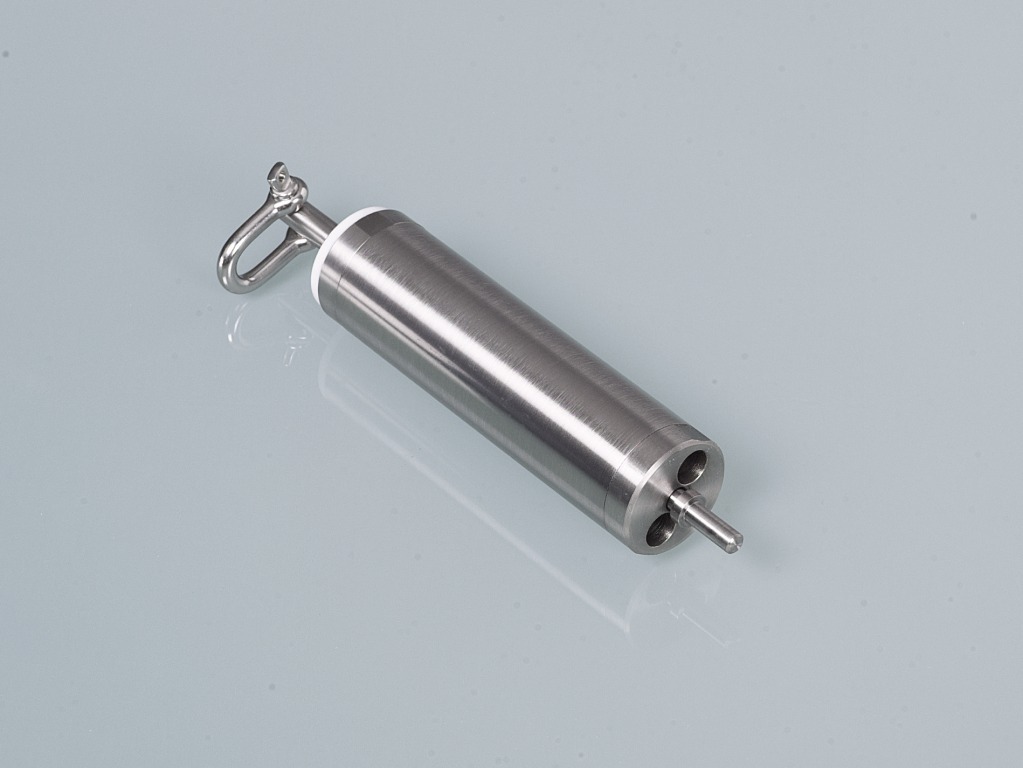

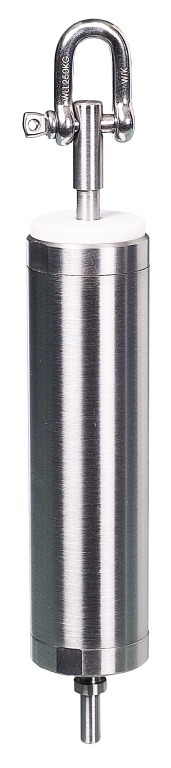

Mini immersion cylinder

In our catalog you will find this product on page 84

Look up in our flip catalog

Enter item number: {config.singleVariant.number}

At a glance

  • Diameter only 32 mm (1.26 in.)
  • Weight 330 g (11.64 oz.)
  • Stainless steel AISI 304 (1.4301)
  • Screw-off top enables easy cleaning
  • Tested for use in the Ex protection zone 0, Explosion Categories IIA and IIB

Please note

Please order the required lowering cable separately.

Observe Ex-proof guidelines when sampling flammable liquids. Only use conductive lowering cables made of nonspark-producing material and conductive hand reels with grounding connection.

  • Observe explosion protection guidelines
  • Warranty period 3 years
  • Autoclavable up to max. 121°C (249.8°F) 20 min.
  • Material V2A

For sampling liquids in narrow places where access is difficult. Can also be used in curved dipping tubes and barrels with narrow openings.

Dipping containers are used in various areas to collect liquids for sampling. Bürkle produces the most comprehensive collection of dipping containers by a long way, the right product for every use as it were.

Bürkle offers dipping bottles and immersion cylinders for sediments, for the area of environmental issues, for chemically aggressive products, for petrochemistry, for the ex protection area etc. The dipping bottles for the Ex protection area are made of nickel-plated brass, therefore they do not oxidize.

Dipping vessels can be used for point sampling, all-layer samples and bottom sampling.

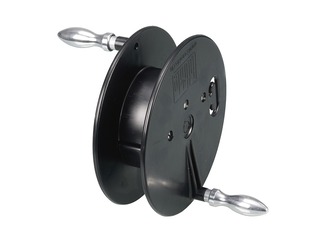

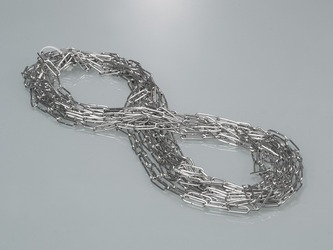

Dipping vessels are heavy. Lowering requires the use of special manually-operated drum reels with a large winding diameter. Other manually-operated drum reels place too much strain on the user's wrist and could represent a health hazard. Lowering cables and chains made from different materials, as well as manually-operated drum reels, also for Ex-proof applications, available as accessories.

Use

  1. When the dipping vessel is lowered, the liquid constantly runs through it.
  2. When it is pulled back, both valves close automatically.
  3. It can be emptied via the base valve or the upper screw-off cap.
