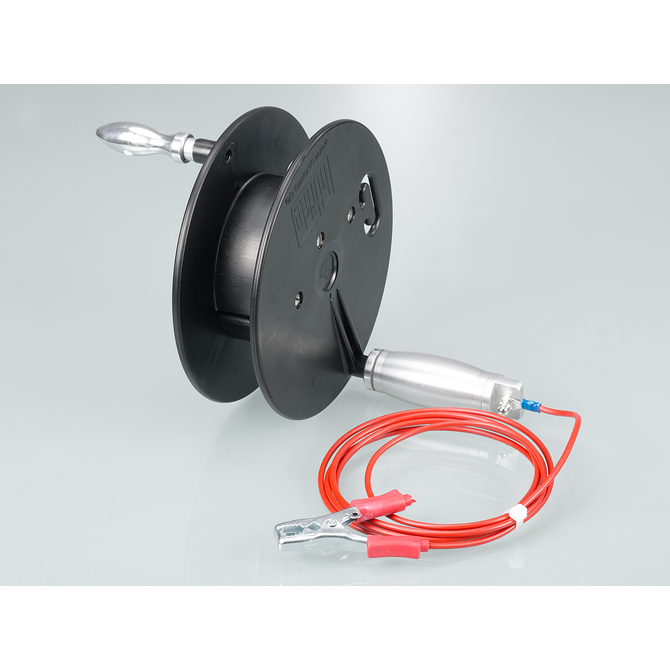

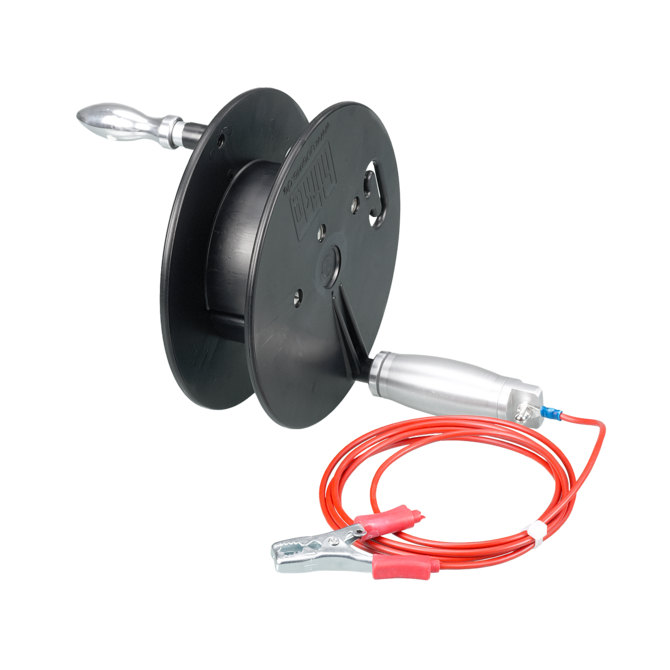

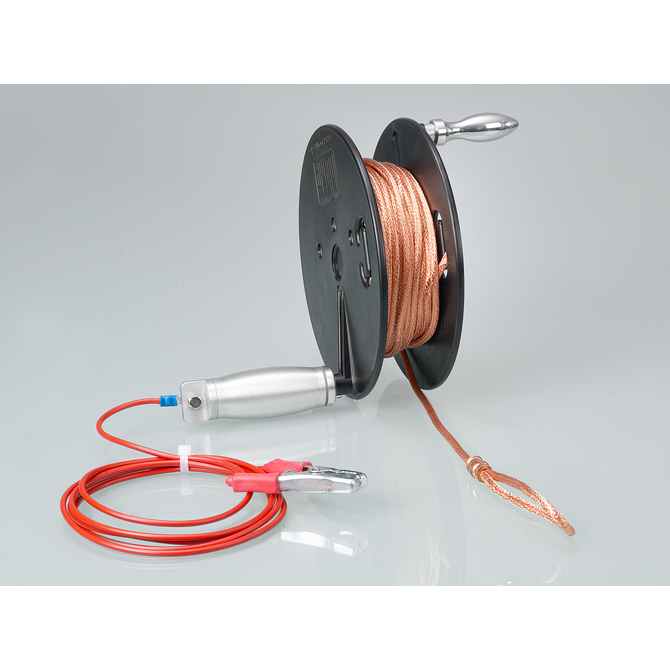

Manually-operated reel Ex with grounding cable
- High winding capacity of up 150 m (492.13 ft.) for cable 2 mm (0.08 in.) dia.
- Reel width: inner 44 mm (1.73 in.), outer 55 mm (2.17 in.), reel diameter: inner 100 mm (3.94 in.), outer 180 mm (7.09 in.)
Please note
Please order the desired lowering cable and manually-operated reel as accessories!
Caution! When handling flammable or highly flammable liquids, follow the explosion protection guidelines. All parts must be grounded (e.g., using the antistatic kit).
Detailed information
Manually-operated drum reel Ex made of polyamide, black, electrically-conductive, with earthing cable, for Explosion Categories IIA and IIB, without lowering cable.
The manually-operated drum reels can be equipped with various cables or chains.
If flammable or highly flammable liquids are to be collected, then electrically conductive manually-operated drum reels must be used together with a grounding cable. The dipping bottles must be made of non-sparking metal.
Typical application area of the product
The manually-operated drum reels are used to lower dipping bottles and immersion cylinders safely to the required depth in shafts, wells and tanks and then to pull them up again.
- Manually-operated reel Ex with grounding cable
Specifications
General material
PA
Polyamide
Coil dimensions
- Outer Ø:
- 180 mm (7.0866 in)
- Inside Ø:
- 100 mm (3.937 in)
- Outer width:
- 55 mm (2.1654 in)
- Inside width:
- 44 mm (1.7323 in)
Capacity
- Winding capacity (rope Ø 2 mm) up to:
- 150 m (492.126 ft)
Suitable for use in:
- Ex zone:
- 0,1,2
- Explosion groups:
- IIA, IIB, IIC
