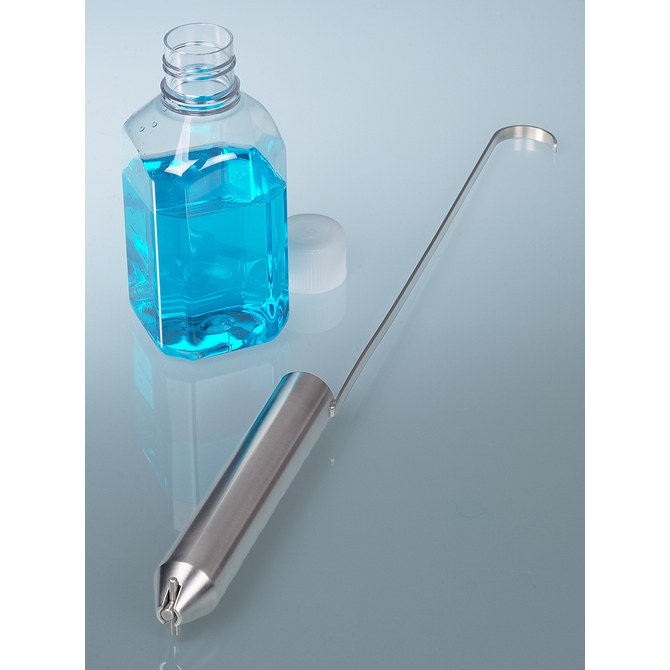

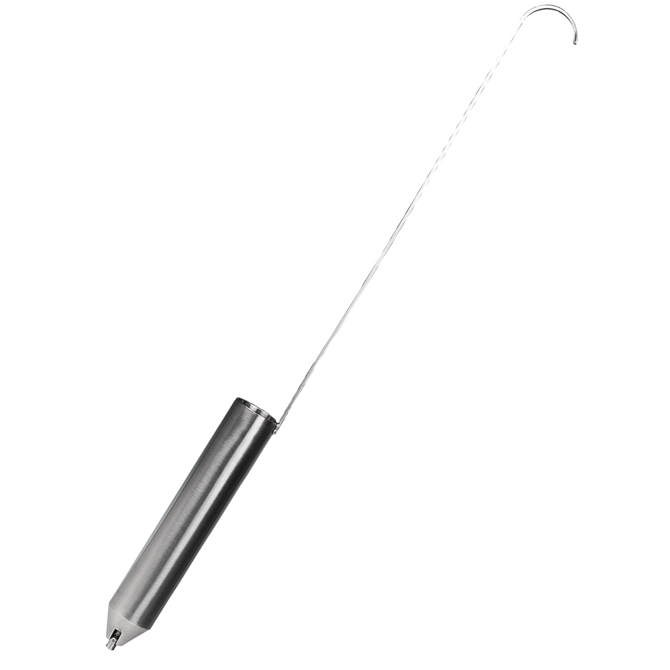

Liquid-Sampler, place onto bottle
- Material AISI 316L (1.4404)
Detailed information

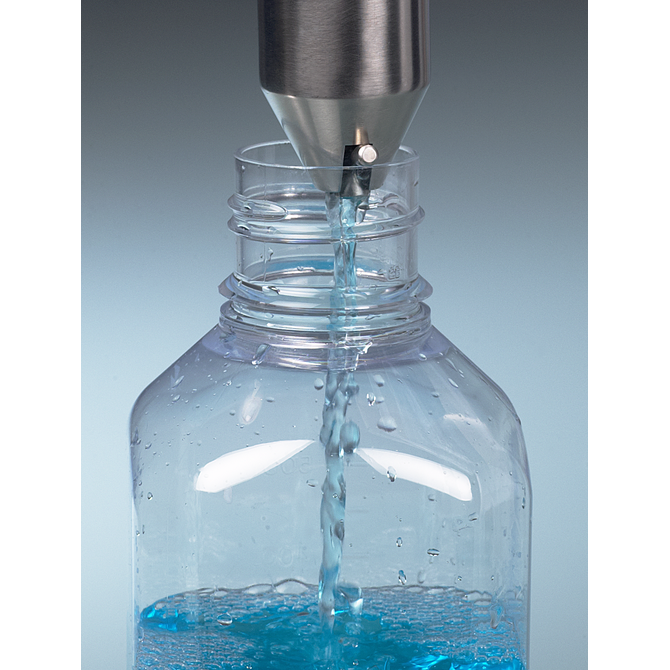

The valve is opened by attaching the sample container to empty the sample.
Easy use with one-handed operation. With discharge funnel for safe filling of the sample bottles.
Typical application area of the product
Sampler for thin to viscous liquids.
Material
- Liquid-Sampler, place onto bottle
Specifications
General material
1.4404 (316L)
Stainless steel 1.4404, AISI 316L
Scoop dimensions
- Immersion depth max.:
- 425 mm (16.7323 in)
- Total length:
- 455 mm (17.9134 in)
- Outer Ø:
- 32 mm (1.2598 in)
Contents of scoop container
- Contents:
- 50 ml (1.6907 fl oz)
Other dimensions
- Collection container height:
- 106 mm (4.1732 in)
- Handle/handle length:
- 349 mm (13.7402 in)
Scoop
- Sample material:
- free-flowing,viscous/light viscosity,liquid
- Special properties scoops:
- Simplified emptying
