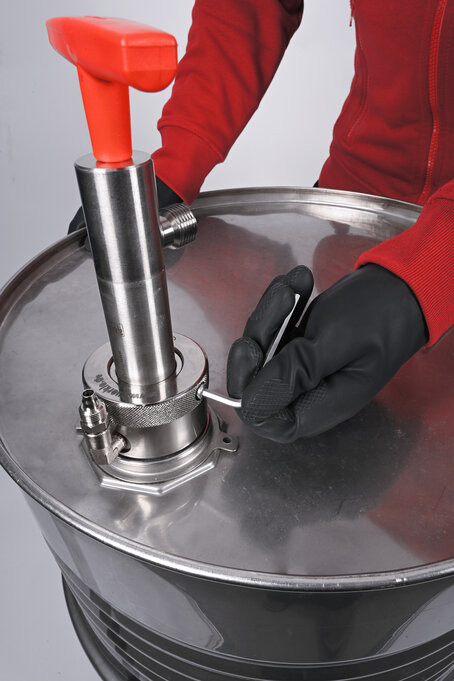

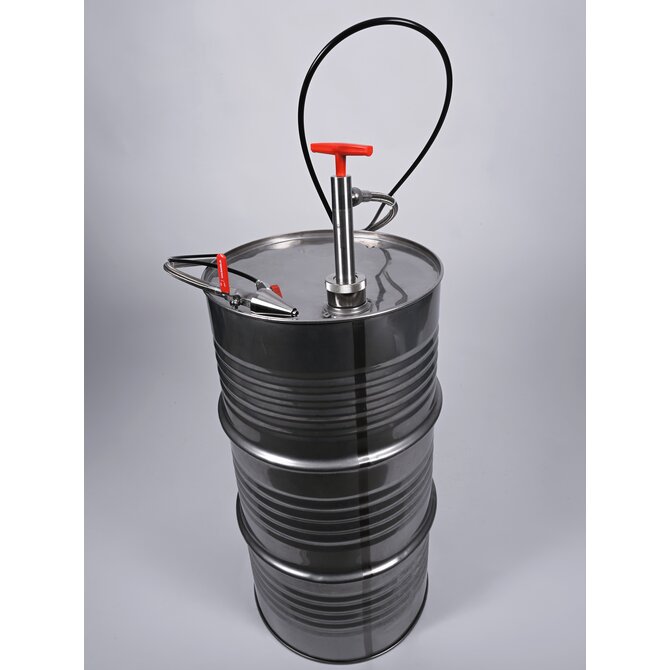

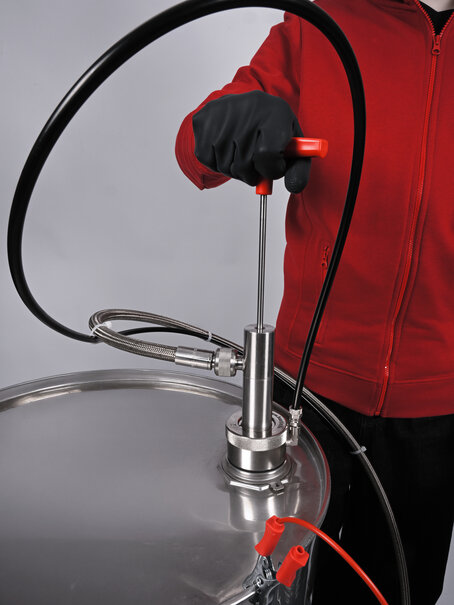

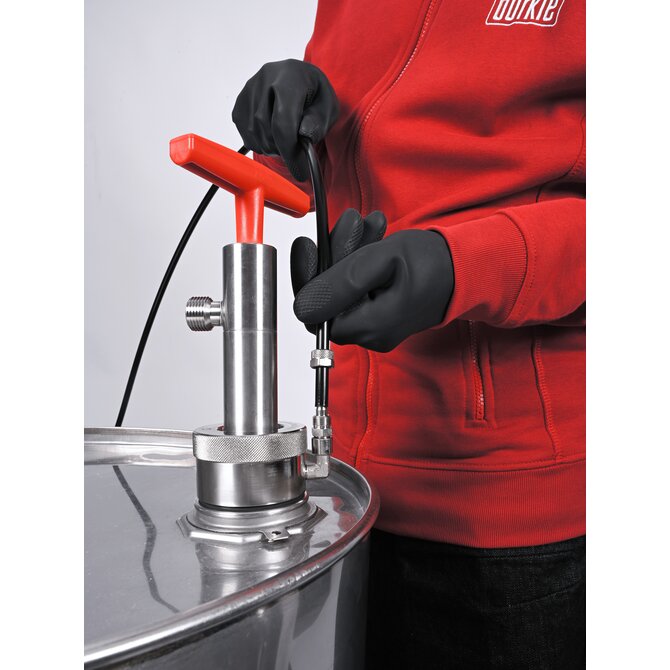

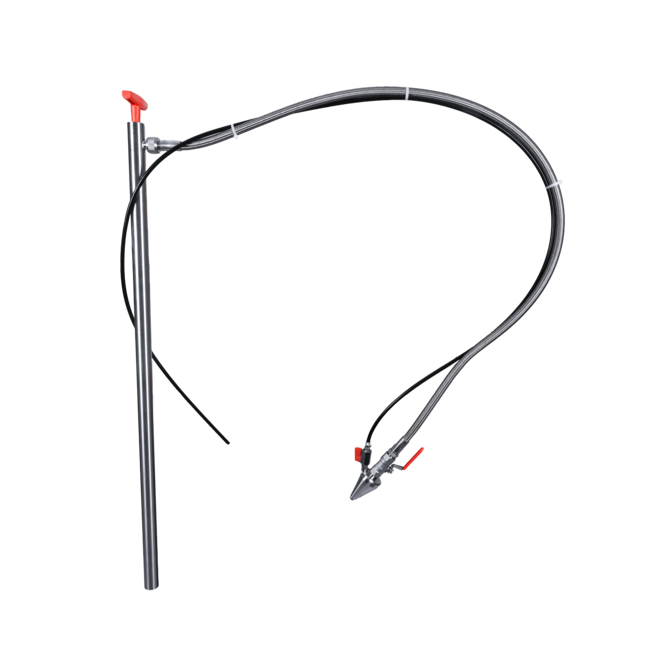

Gas-tight stainless steel drum pump with outlet hose
Safe and gas-tight filling of flammable liquids
- Safe gas recirculation reduces emissions, protects employees and prevents unpleasant odors

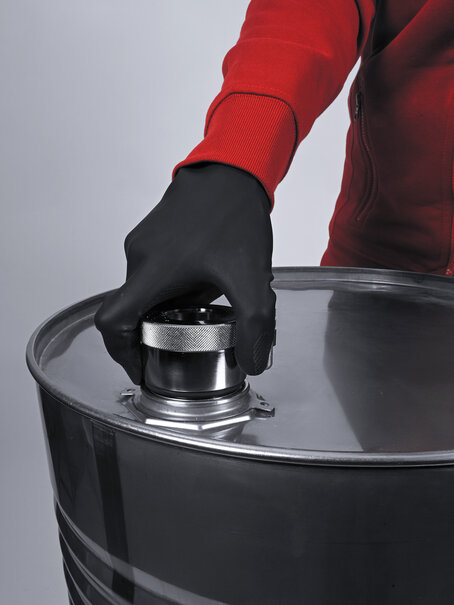

- Universal adapter suitable for various container openings

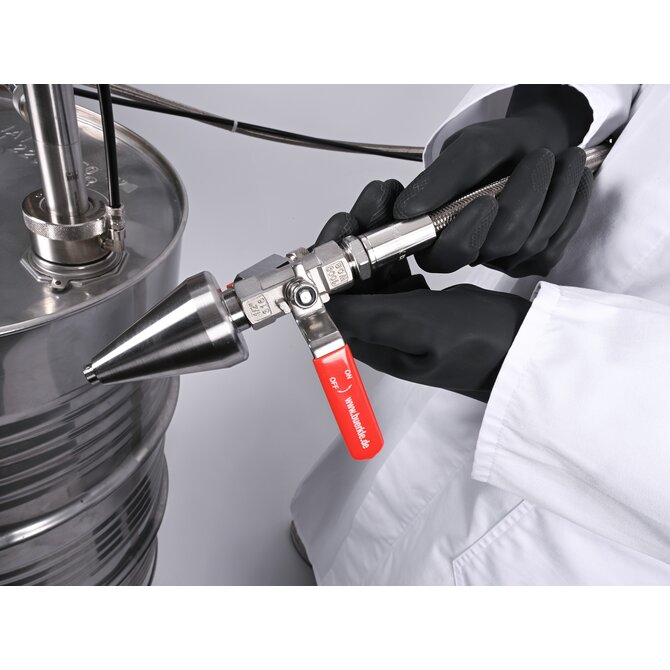

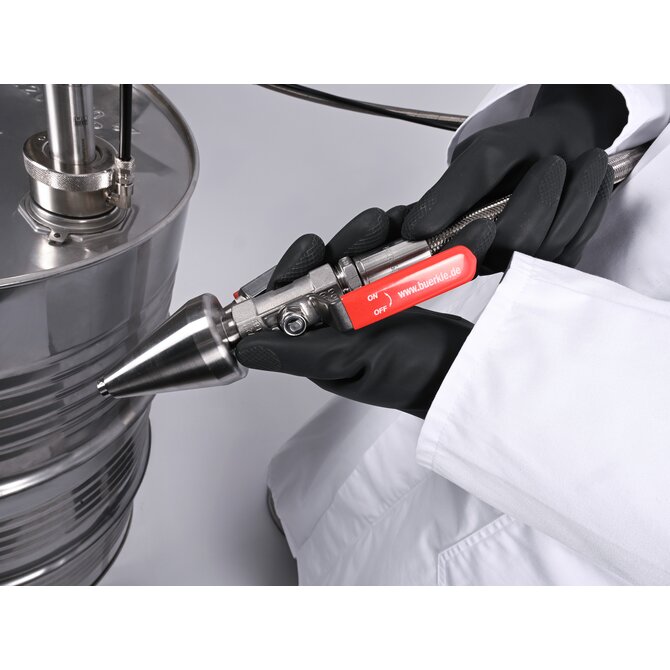

- Safe shut-off system with two ball valves for hermetically sealing the conveying paths
- Resistant materials for aggressive media and a long service life
- Suitable for highly flammable liquids
Please note

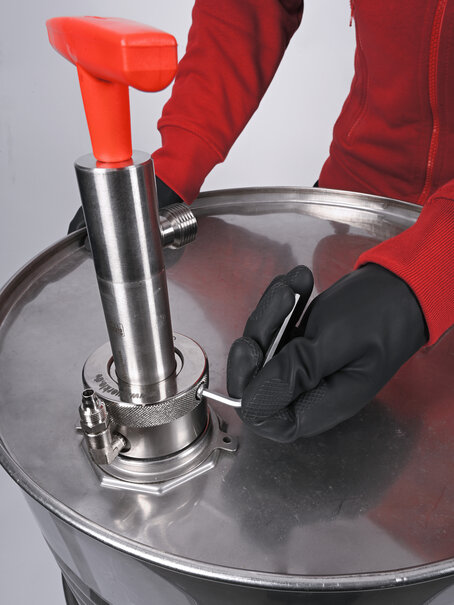

Caution! When handling flammable, highly flammable liquids, the explosion protection guidelines must be observed. All parts must be earthed, use anti-static set!
The pump is not suitable for acetone or similar drying solvents.
Detailed information

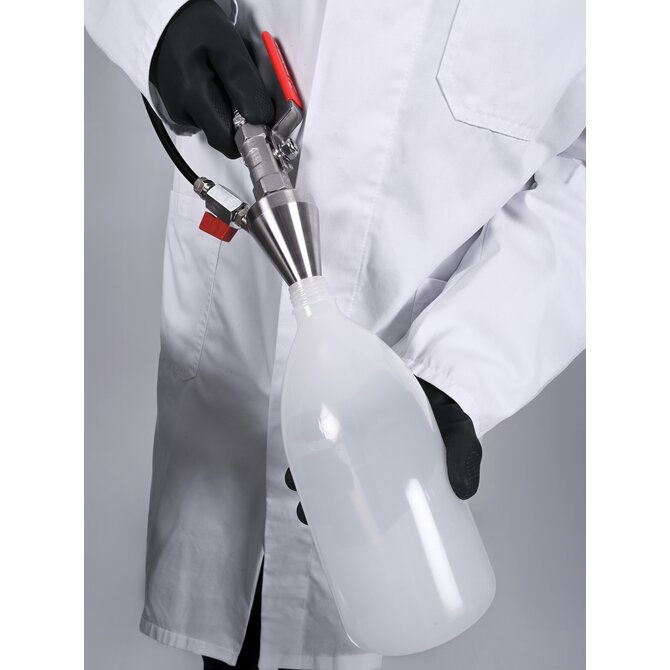

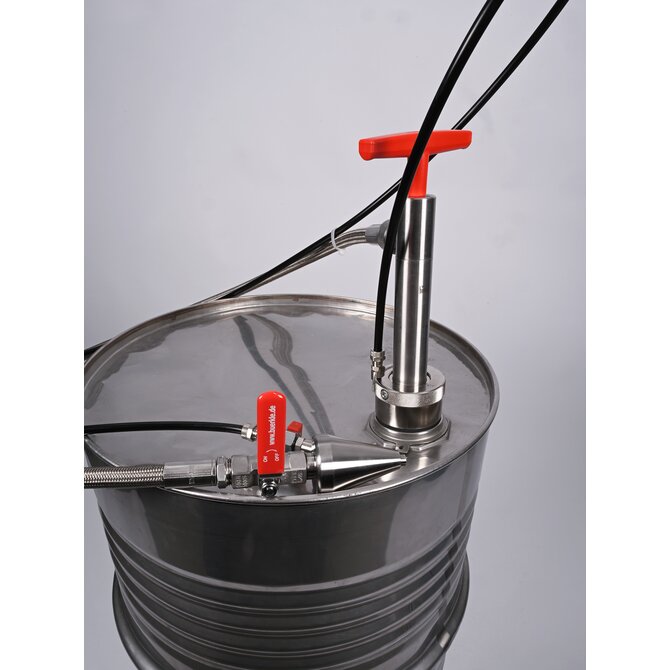

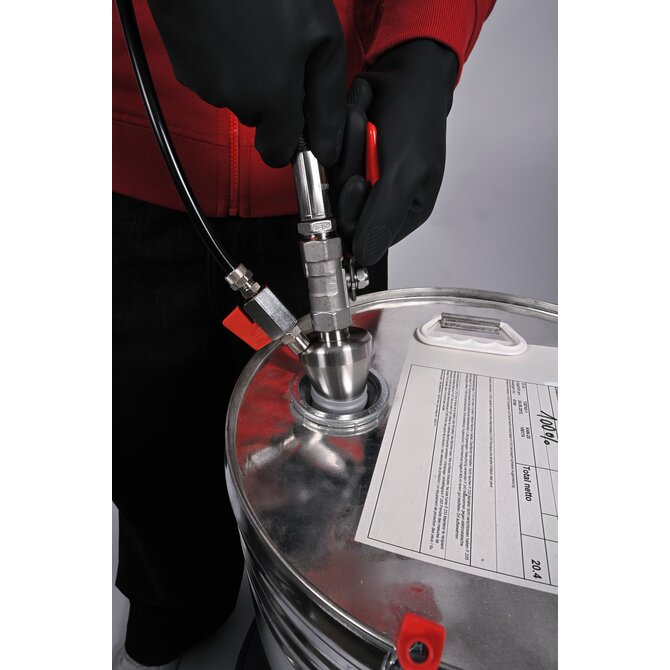

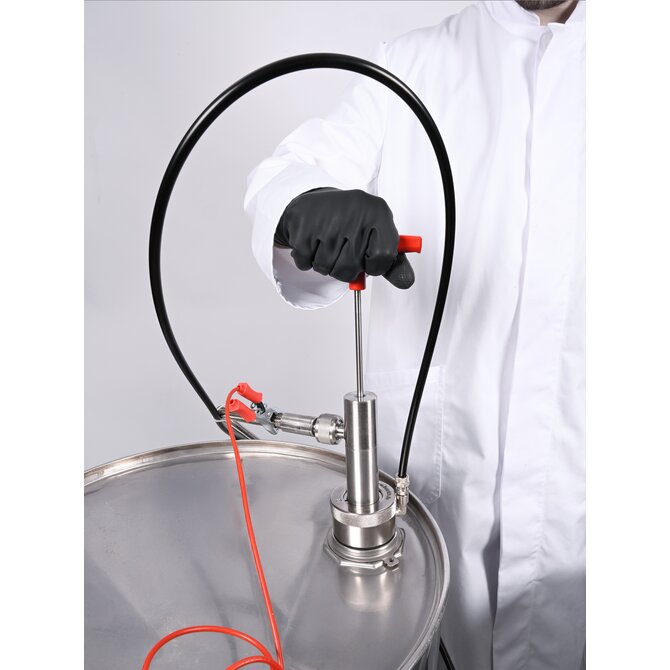

This gas-tight, stainless steel drum pump is the ideal solution for safely and odor-free filling of aggressive or volatile media. Made of high-quality, chemical-resistant materials such as stainless steel (1.4301) and PTFE, it meets the highest standards for resistance, tightness, and safety. The integrated gas-tight drum screw connection and vapor recovery system effectively prevent vapors from escaping, making the pump ideal for applications involving odor-intensive or potentially explosive substances. Two ball valves allow the liquid and vapor paths to be completely shut off for maximum control and safety during every filling process.
The gas-tight drum pumps are specially designed for safely handling volatile, odoriferous, or harmful liquids. The integrated vapor recovery system uses the vapor pendulum method to prevent hazardous vapors from escaping into the environment during decanting. Instead, the vapors are directed back into the original container.
Typical application area of the product
These pumps ensure a clean, safe, and efficient workflow wherever outgassing media are transferred, whether in the laboratory, production, or warehouse. They are ideal for companies that prioritize emission protection, occupational safety, and environmental responsibility.
- Gas-tight stainless steel drum pump with outlet hose
Specifications
General material
1.4301 (AISI 304)
Stainless steel (1.4301), AISI 304
Further materials
PTFE
Polytetrafluoroethylene
Connection
- Connection type:
- Barrel screw joint
- Thread:
- G 2 inch
- Version:
- External thread
Throughput
- Conveying capacity:
- 540
Limit values
- Viscosity up to:
- 500
Ø
- Immersion tube Ø:
- 32 mm (1.2598 in)
Coloring
- Color:
- silver
Pump outlet
- Outer outlet Ø:
- 15 mm (0.5906 in)
- Outlet hose length:
- 1.2 m (3.937 ft)
- Outlet type:
- Discharge hose
Delivery tube
- Immersion depth max.:
- 91 cm (35.8268 in)
Further connection
- For openings from:
- 16 mm (0.6299 in)
- For openings up to:
- 49 mm (1.9291 in)
Filling container
- Adjusting the immersion depth:
- Immersion depth infinitely adjustable
- For containers up to:
- approx. 220 liters
How to fill
- Drive type:
- manually operated
- Pump type:
- Reciprocating pump
- Special features Pumps:
- Return of gases via vapour recovery line
Similar products

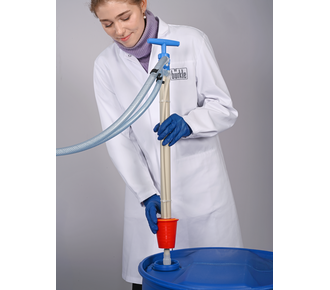

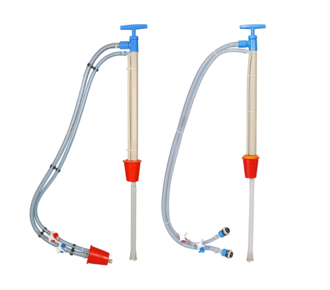

Gas-tight PP drum pump
