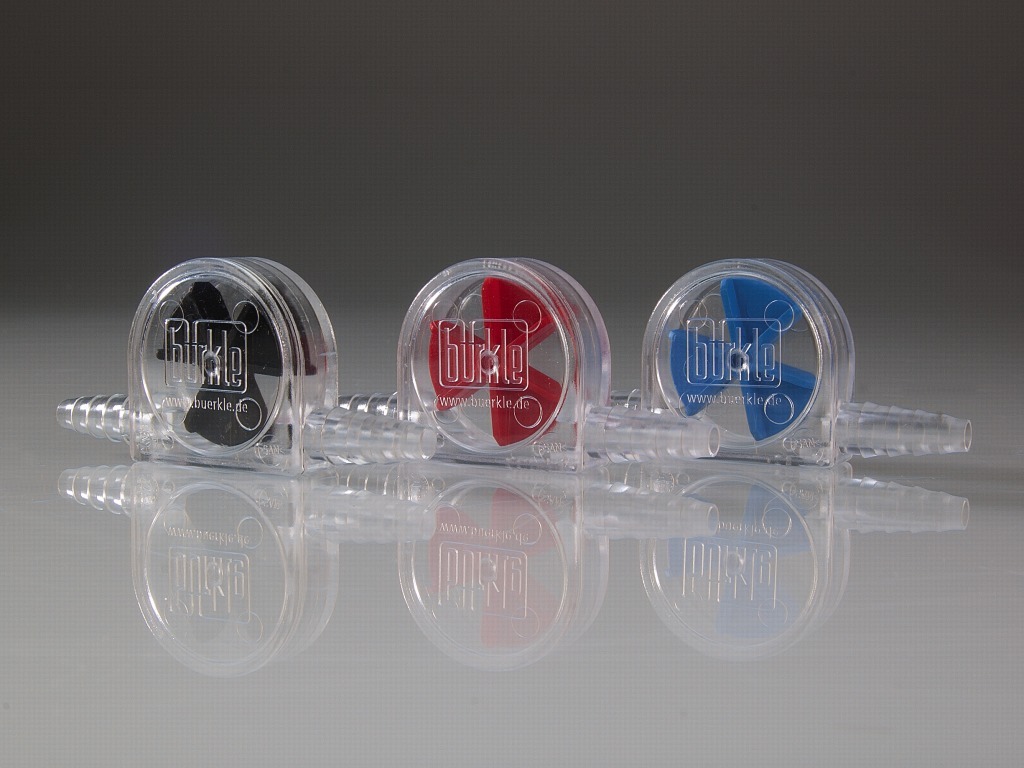

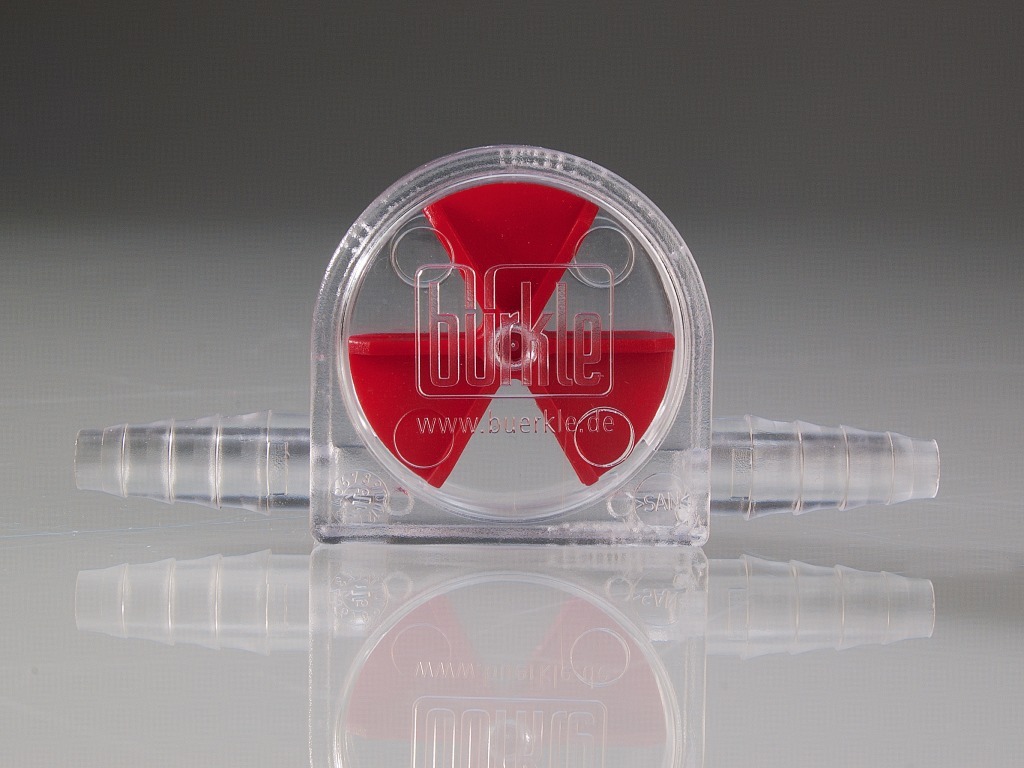

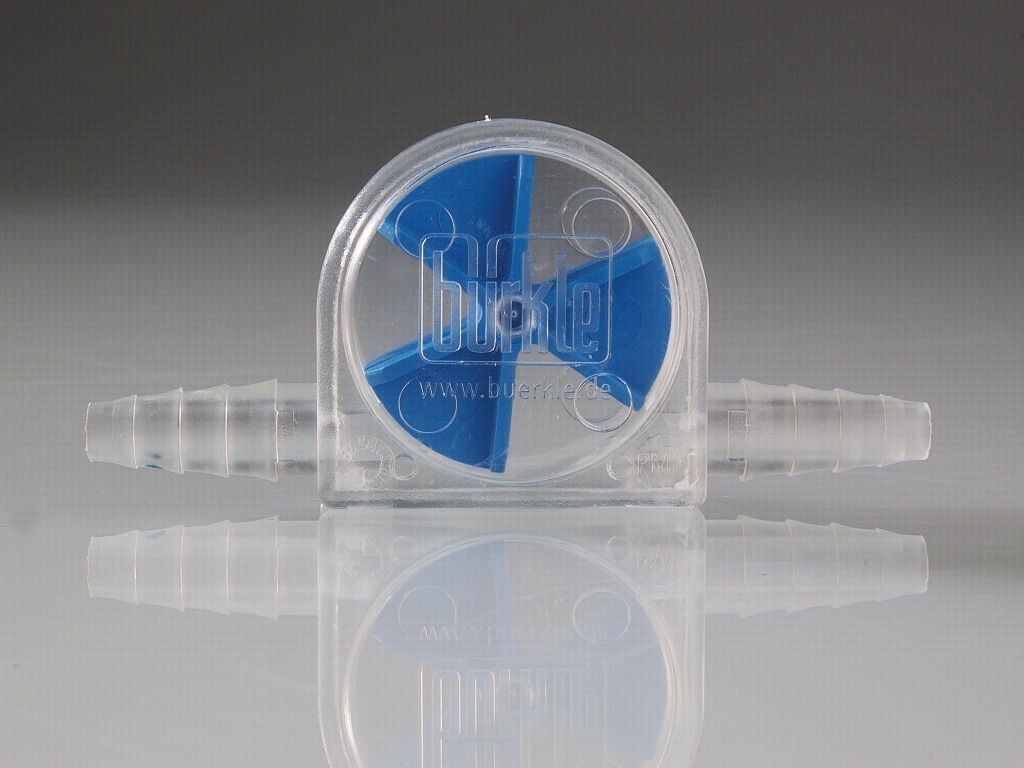

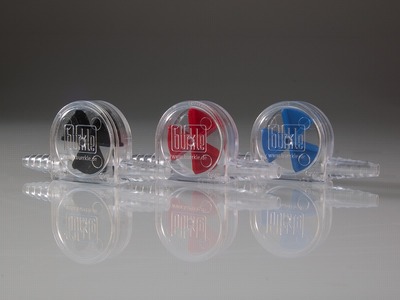

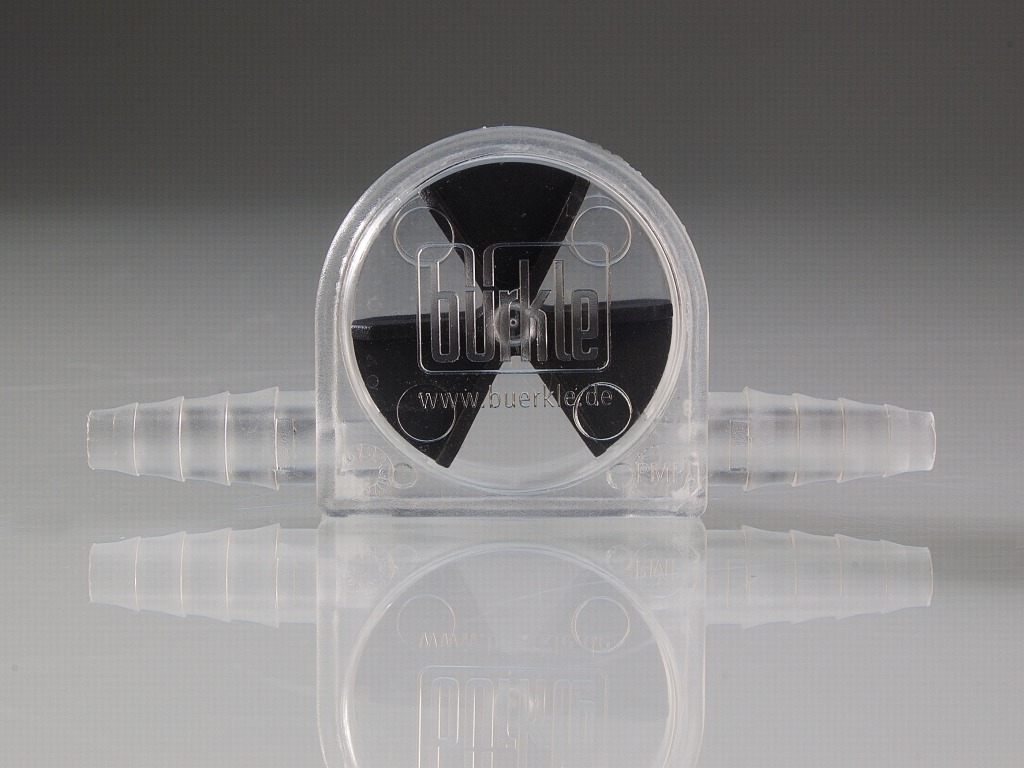

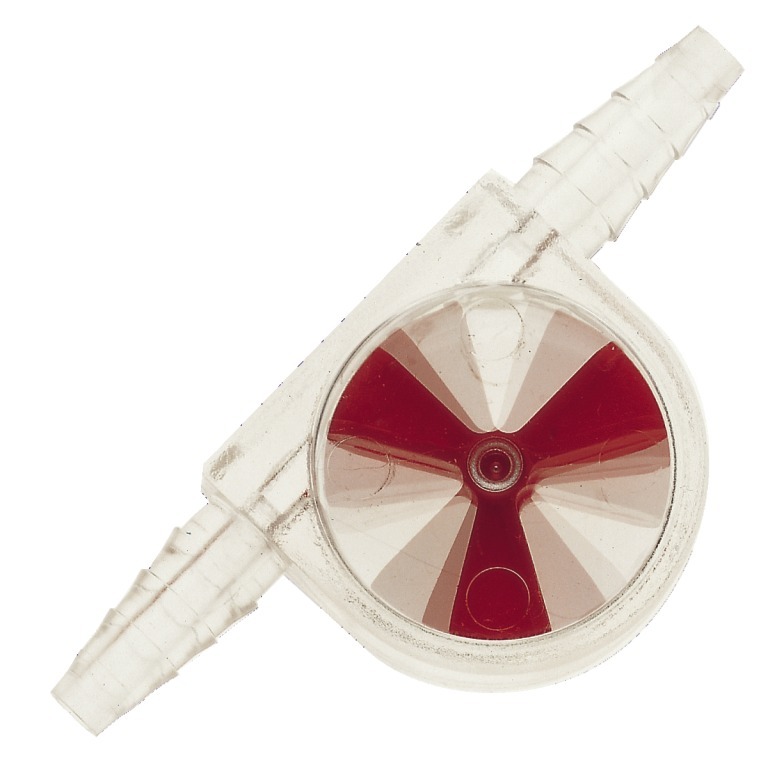

Flow indicators LiquiMobil SAN
In our catalog you will find this product on page 169
Look up in our flip catalogEnter item number: {config.singleVariant.number}
At a glance
- Operating temperature LiquiMobil SAN max. +30 °C (+86 °F)
- For hoses with inner diameter of 6–11 mm (0.24–0.43 in.)
- Pressure resistant up to 2 bar (29.01 psi)
- Length with grommets 88 mm (3.46 in.), height 40 mm (1.57 in.), width 16 mm (0.63 in.)
- Color coding – blue, red and black
Please note
LiquiMobil flow indicator made of SAN is mainly suitable for cooling systems and helps to reduce water consumption considerably because the cooling water flow can be adjusted better. Not suitable for aggressive substances.
Flow indicators give precise visual indication of the flow velocity of liquids or gases being transported through hose connections. The flow indicator with impeller functions in both directions and in any position. The impeller (PP) starts to rotate at a flow rate about 150 ml/min (5.07 oz./min) (liquids).
Material
