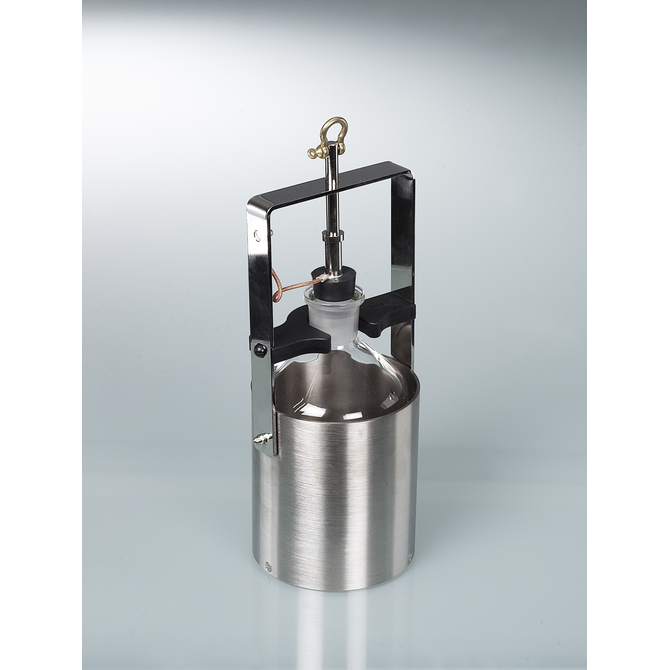

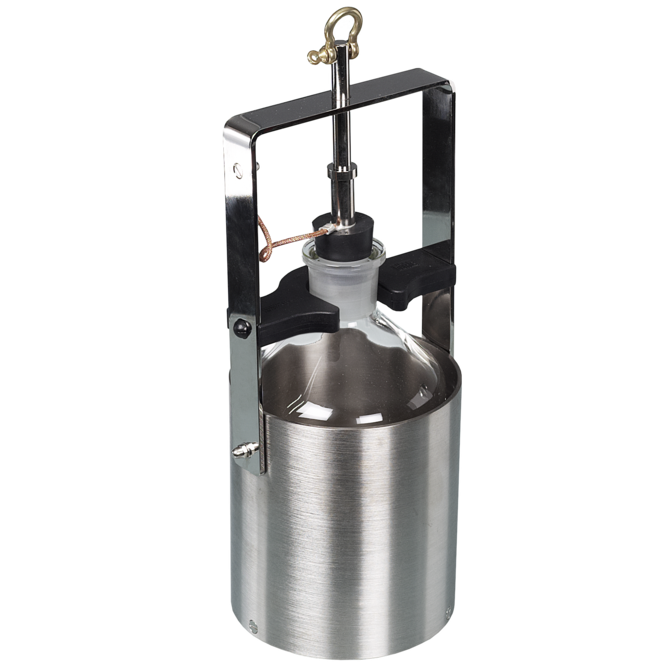

Dipping bottle
- With Easy-Click, safe and practical closure for a rapid bottle exchange
- High weight (3.2 kg (7.05 pd.)) for fast lowering
- Bottle made of transparent glass 1000 ml (33.81 oz.) contents
- Height with handles 330 mm (12.99 in.)
- Tested for use in the Ex protection zone 0
Please note
Caution! When handling flammable or highly flammable liquids, follow the explosion protection guidelines. All parts must be grounded (e.g., using the antistatic kit).
Please order the desired lowering cable and manually-operated reel as accessories!
Detailed information
Dipping bottle with glass container for sampling in sewage plants, for mud and water samples. For testing crude oil, liquid mineral oil products, fuels, special and test fuels, fuel oils, petroleum and liquid lubricants of Hazard Categories IIA and IIB. Completely made from non-spark producing materials. Dipping frame made of nickel-plated brass, easy-click closure made of electrically conductive polyamide.
The dipping bottles for the Ex protection area are made of nickel-plated brass, therefore they do not oxidize.
Dipping vessels can be used for point sampling, all-layer samples and bottom sampling.
Typical application area of the product
Dipping containers are used in various areas to collect liquids for sampling. Bürkle produces the most comprehensive collection of dipping containers by a long way, the right product for every use as it were.
Bürkle offers dipping bottles and immersion cylinders for sediments, for the area of environmental issues, for chemically aggressive products, for petrochemistry, for the ex protection area etc.
How to use the product
- Lower the dipping bottle to the required depth.
- Pull chain/cable with a short, powerful jerk, the stopper opens.
- The sample flows into the bottle.
- Raise the bottle with the chain/ cable.
- Open the Easy-Click closure, remove the bottle.
- Dipping bottle
Specifications
General material
MS
Brass
General material
GL
Glass
General material
Cu
Copper
Further materials
NBR
Nitrile butadiene rubber
Further materials
PA
Polyamide
Volume
- Contents:
- 1000 ml (33.8141 fl oz)
Dipping bottle dimensions
- Outer Ø:
- 149 mm (5.8661 in)
- Total height:
- 330 mm (12.9921 in)
- Collection container height:
- 140 mm (5.5118 in)
Suitable for use in:
- Ex zone:
- 0,1,2
- Explosion groups:
- IIA, IIB
Dipping vessels are heavy. Lowering requires the use of special manually-operated drum reels with a large winding diameter. Other manually-operated drum reels place too much strain on the user's wrist and could represent a health hazard. Lowering cables and chains made from different materials, as well as manually-operated drum reels, also for Ex-proof applications, available as accessories.
