Detailed information

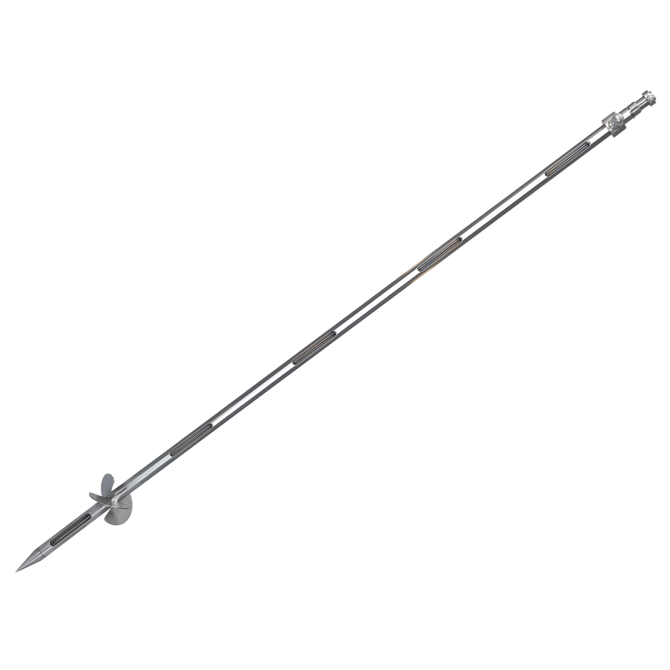

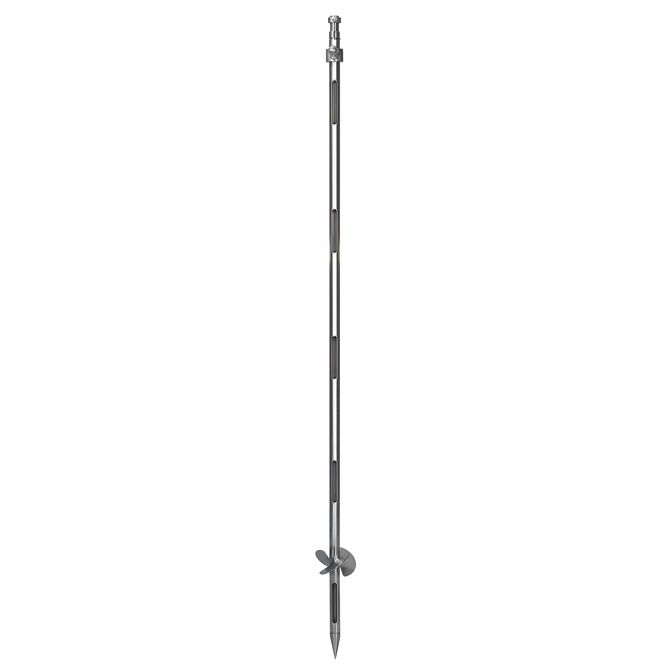

The all-layer drill offers an excellent solution to the challenge of taking samples from highly compacted materials. Its specially designed drill bits make it possible to penetrate the medium and sample the entire depth without much effort or time. This is especially valuable for high-density media and compacted powders and granules that are difficult to sample using conventional methods.

The all-layer auger is constructed of high-quality materials that ensure long life and efficiency when sampling from large containers, mixing tanks and big bags in a variety of industries.

The all-layer auger provides representative sampling through all layers, even with highly compressed media.

Typical application area of the product

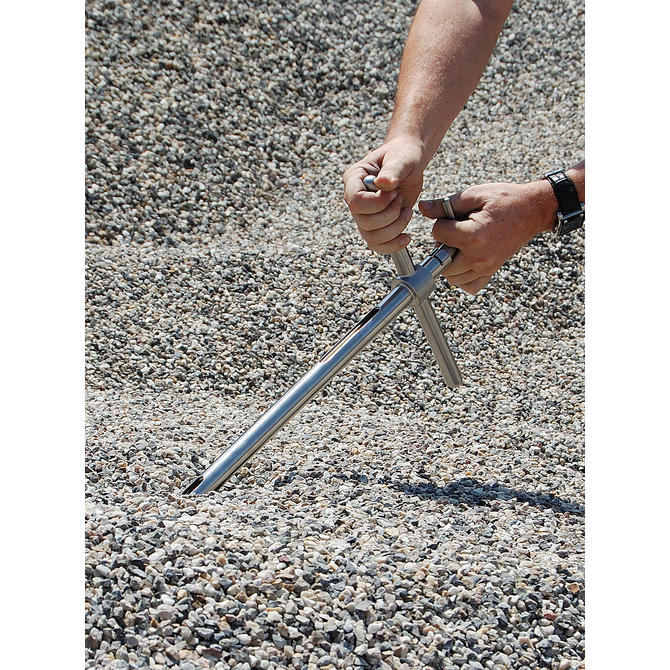

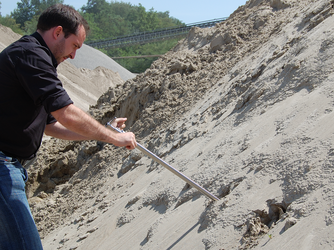

The all-layer drill is primarily used in the building materials, chemical, pharmaceutical, and food and beverage industries where precise sampling from highly compacted media is essential. Ideal for quality control, it enables efficient and representative sampling from large containers, bulk piles, big bags and mixing vessels, making it easier to analyze and verify the homogeneity and quality of the material.

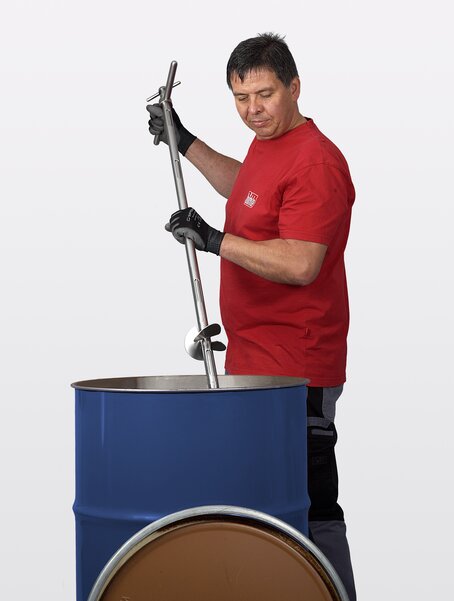

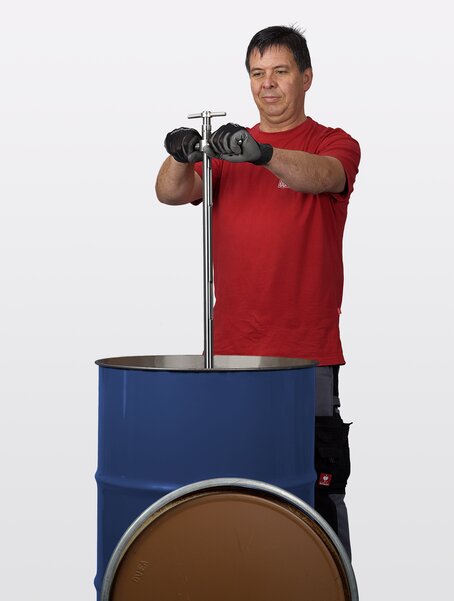

How to use the product
  1. Turn the handle of the all-layer sampler clockwise, it is now closed and can be inserted into the powder/granulate.
  2. Drill the collector to the desired depth using the lower handle.
  3. At the desired depth, turn the handle of the collector counterclockwise, the collection chambers are opened and filled with sample.
  4. By turning the handle clockwise again, the collector is closed again and can be removed from the powder/granulate.
  5. Unscrew the collector again using the lower handle.
  6. Turn the all-layer drill over and empty the all-layer sample through the opening in the handle into a suitable collecting vessel.
5310-0150_allschicht-bohrer_gebrauchsanleitung.pdf 5310-0150_allschicht-bohrer_gebrauchsanleitung.pdf
  • All-layer drill

Specifications

General material

1.4404 (316L)
Stainless steel 1.4404, AISI 316L

Further materials

NBR
Nitrile butadiene rubber

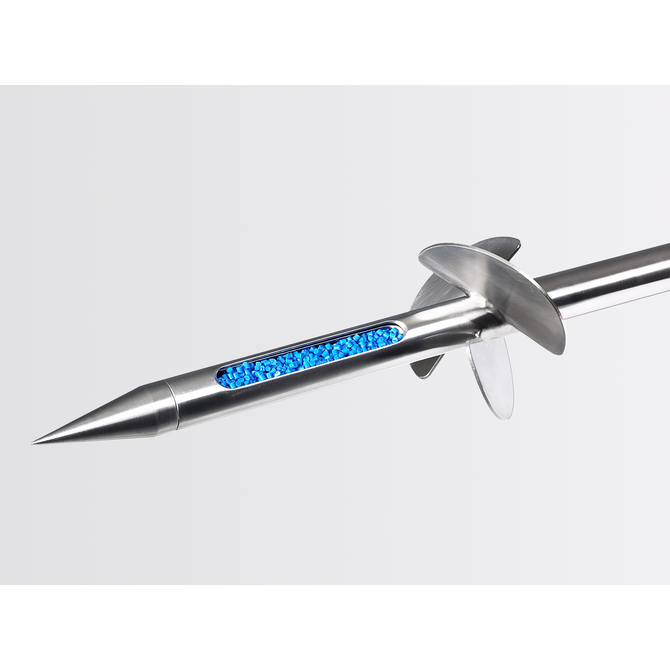

Sample chamber details

Number of collection openings:
5
Sample quantity:
260 ml (8.7917 fl oz)

Lance dimensions

Pipe Ø:
25 mm (0.9843 in)
Plunge depth:
1385 mm (54.5276 in)
Total length:
1528 mm (60.1575 in)
Outer Ø:
97 mm (3.8189 in)

Collecting chamber dimensions

Chamber length:
100 mm (3.937 in)
Start of the collecting chamber:
101 mm (3.9764 in)
Chamber width:
12 mm (0.4724 in)
Distance between the chambers:
195 mm (7.6772 in)

Sampling lances

Sampling type:
All-layer sample/cross-section sample
Grain size samples:
powdery/fine-grained,medium-grained
Sample material:
free-flowing,cohesive,compacting/fixing
Special properties Sample lances:
Removable tip,pointed tip
Top:
pointed
To the list of chemical resistance

Complementary products

Cleaning brushes Cleaning brushes

Cleaning brushes

Cleaning brushes offer effective and thorough cleaning in various areas. Made of high-quality stainless steel and equipped with hard-wearing bristles, they remove dirt effortlessly.

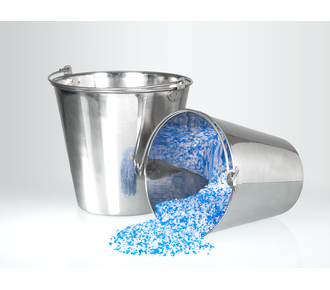

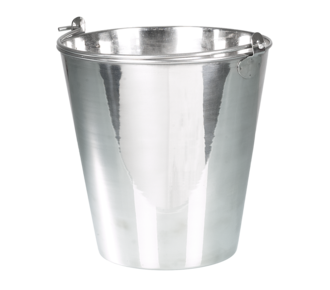

Stainless steel bucket Stainless steel bucket

Stainless steel bucket

This stainless steel bucket is both hygienic and durable. It is ideal for industrial applications that require the highest level of hygiene. Thanks to its highly polished surface and robust design, the bucket is perfect for everyday use.
Sealing sleeves for zone samplers Sealing sleeves for zone samplers

Sealing sleeves for zone samplers

Sealing sleeves for zone sampler offer a reliable way to securely seal individual chambers during filling, emptying or transportation. For example, in the case of a multi-collector, each chamber can be emptied individually after sampling.
Emptying device Emptying device

Emptying device

Convenient emptying rack made of 304 stainless steel for multi-collectors. Saves time, prevents contamination and sample loss. Simply place the multi-collector on the rack, place sample containers under the funnels, and open the chambers - done.

Similar products

Core drill for clogging bulk solids Core drill for clogging bulk solids

Core drill for clogging bulk solids

The two-part stainless steel core auger enables the sampling of poorly flowing bulk solids that easily jam or stick. The core drill can be easily dismantled for quick and thorough cleaning.
Sample lance scraper Sample lance scraper

Sample lance scraper

The grab sampler is particularly suitable for sampling non-free-flowing, agglomerating powders and granulates. Variable zones within the inner tube can be individually adjusted using movable PTFE separators.
All-layer sampler 316L (1.4404) All-layer sampler 316L (1.4404)

All-layer sampler 316L (1.4404)

The all-layer sampler with open inner tube is the ideal sampler for taking all-layer or mixed samples of all types of bulk materials, from the finest powders to larger grains.

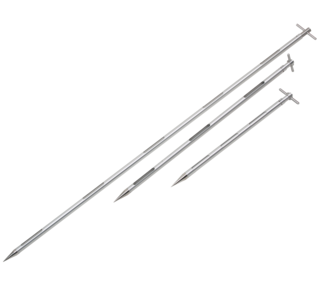

All-layer sampler aluminum All-layer sampler aluminum
