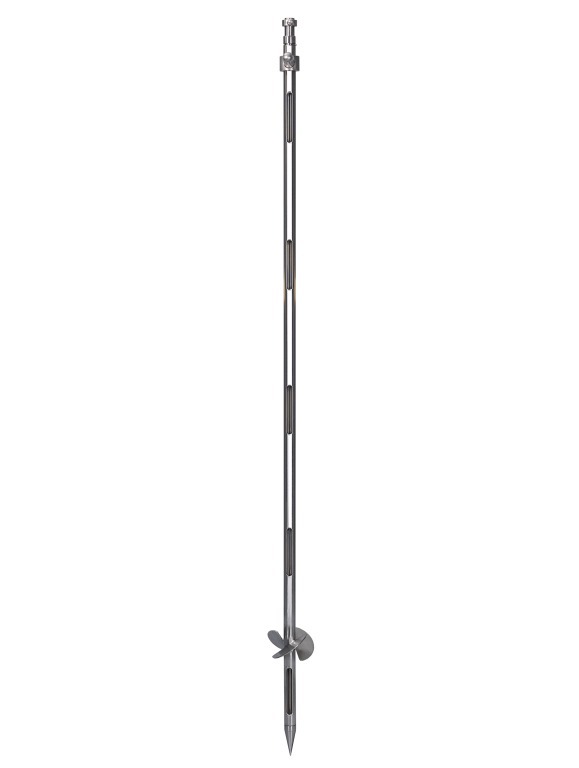

All-layer drill

In our catalog you will find this product on page 44

Look up in our flip catalog

Enter item number: {config.singleVariant.number}

At a glance

  • Stainless steel AISI 316L (1.4404)
  • 25-mm (0.98 in.) diameter

Please note

  • Material V4A
  • Suitable for use with foodstuffs
  • Produced according to DIN norm
  • Autoclavable up to max. 121°C (249.8°F) 20 min.
  • Warranty period 3 years

The all-layer drill is a special zone collector specifically designed for heavily compacted substances. Often it is very difficult or impossible with conventional zone collectors to penetrate media of this type and take a sample extending through all layers. By contrast, the drilling blades of the all-layer drill burrow easily and quickly to the required depth without expending any great force. This makes it easy to take samples of media, even those with high density, and every type of highly compacted powders and granulates.

The all-layer drill thus allows you to take a representative sample through all the layers, even with greatly compressed media.

It is ideal for larger containers, mixed containers, big bags, etc. in the building materials, chemical, pharmaceutical, food and luxury items industries.

Use

  1. The all-layer drill is screwed manually into the bulk material.

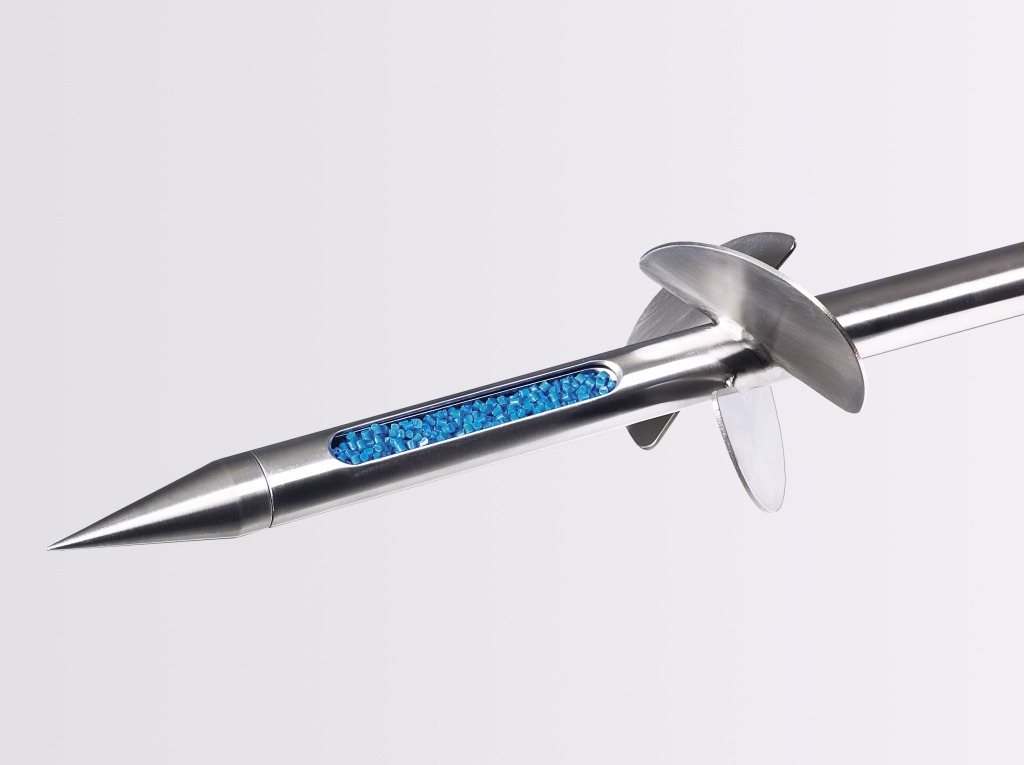

  2. The chambers are opened at the desired sample depth and the sample material flows in.
  3. Close the chambers.
  4. Remove or unscrew the all-layer drill.
  5. Empty the sample through the open inner tube.
