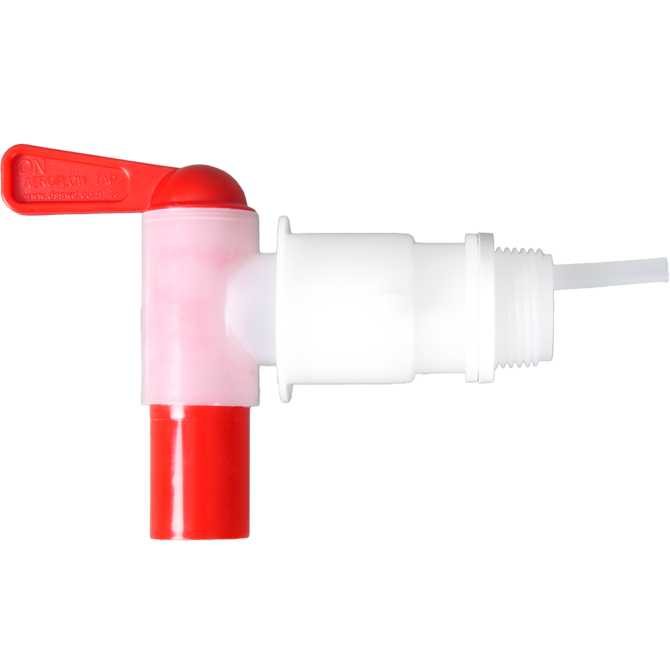

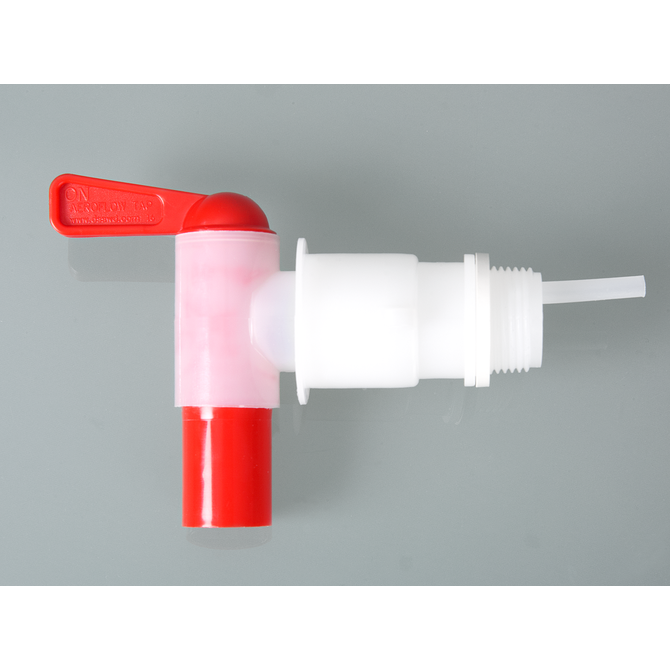

Spigot "Air"
- Self-venting
- NW 13 mm
- Seal made of natural rubber
Packaging unit
Piece
Detailed information
No additional ventilation opening required, PE, transparent, 3/4" thread connection outside.
- Spigot "Air"
Specifications
General material
PE
Polyethylene
Further materials
VMQ, MVQ, SI
Silicone
Connection
- Connection type:
- Thread
- Thread:
- G 3/4 Zoll
- Version:
- External thread
Colouring
- Colour:
- colourless
Spigot outlet
- Outer outlet Ø:
- 22 mm
- Outlet type:
- Outlet
Nominal Ø
- Nominal diameter:
- 13 mm
Dimensions
- Length:
- 86 mm
- Width:
- 67 mm
- Height:
- 112 mm
Type of spigot
- Design of the stopcock:
- Cylinder tap
- Flow rate:
- low flow rate
- Special features:
- self-venting
